Slitting

For cutting log rolls of material to non-standard widths and lengths

We have a range of slitting equipment that accurately cuts large master rolls of adhesive material down to non-standard widths and lengths, with tolerances up to +/- 0.1mm. Our slitters can also laminate materials together, for a unique tape construction.

Once cut down, the slit rolls of material can be used in this format or, as required by the majority of our customers, they can be die-cut into bespoke shapes, as well as combined further with complementary materials, for additional functionality.

Learn more about our slitting capabilities below or get in touch today.

Like to know more about us?
Read our latest news

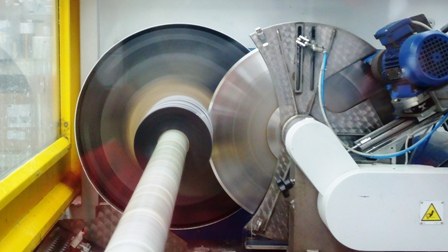

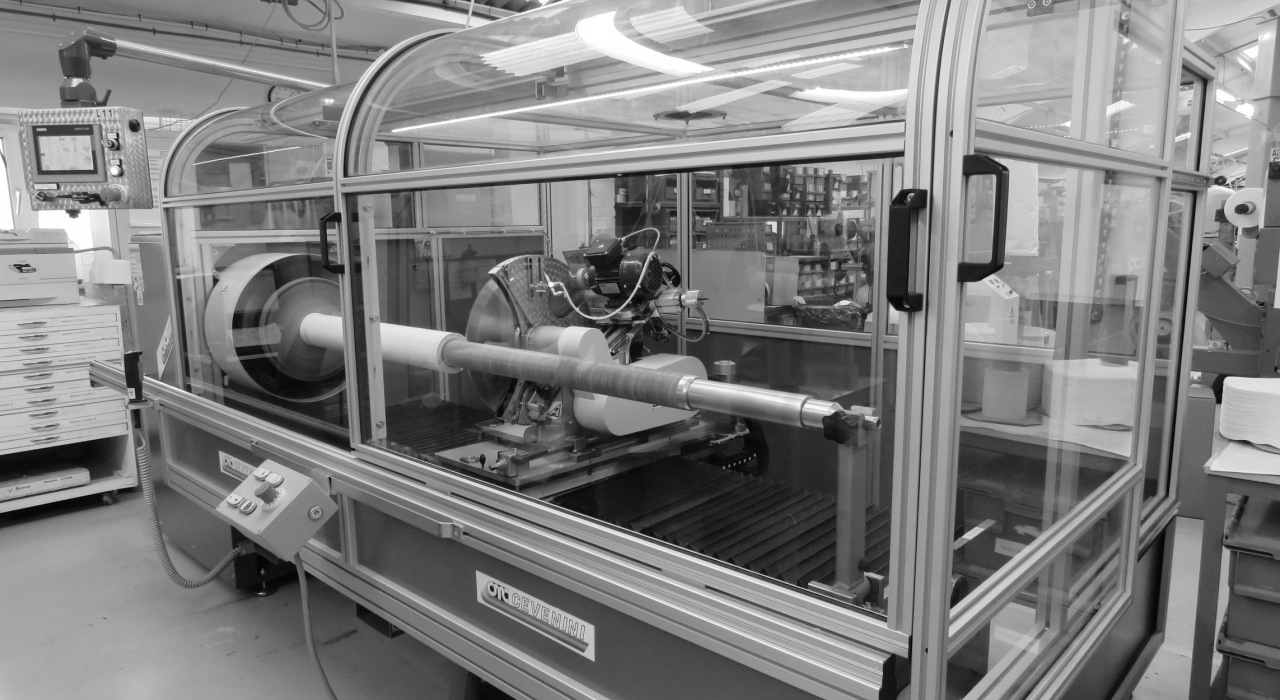

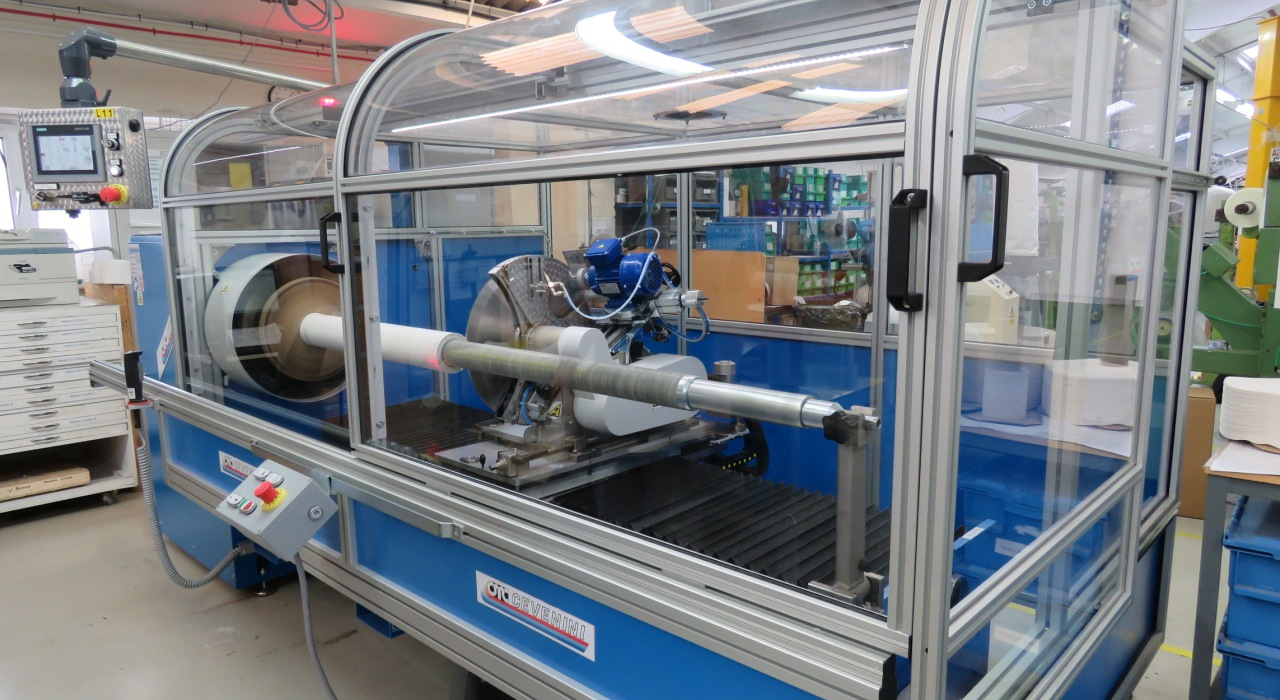

Lathe slitting

Lathe slitting

Lathe Slitting is the process of taking a log roll of material and spinning it on a mandrel whilst a circular blade cuts the material to a pre determined width.

From master rolls, our lathe slitters allow us the flexibility to slit a wide variety of materials at exact width rolls from 0.7mm up to 1400mm. We can achieve very precise cuts and uniform results with finished roll tolerances of up to +/- 0.1mm, depending on the material.

Customising the size of your tape to your exact requirements can improve efficiency and reduce waste.

Benefits

  • Bespoke sizing can improve your operation efficiency
  • Bespoke sizing can reduce waste

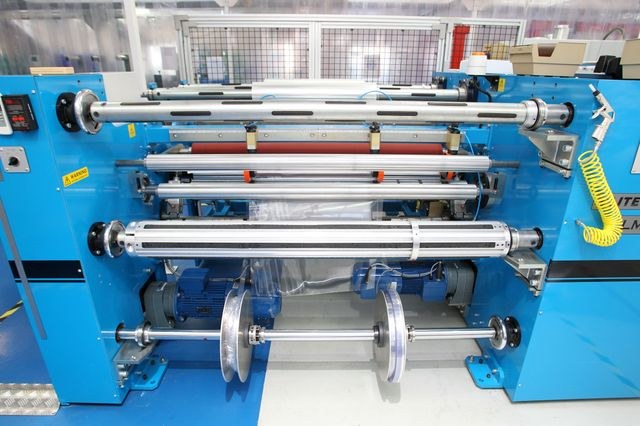

Rewind slitting

Rewind slitting

Rewind Slitting is the process of unwinding a large master roll through a series of razor, shear or score blades and rewinding the customised width rolls onto pre-slit cores.
This method allows us to laminate material combinations together at the slitting stage, providing added functionality, and we can also produce short length rolls for convenience or kitting operations.

The rewind slitter offers high speed slitting and can cut thicker, harder raw materials, of widths up to 1400mm. It can produce numerous rolls at a time and tension control features ensure each roll has accurate, uniform cuts.

Benefits

  • Customised parts
  • Reduce your production process
  • Reduce your material cost (through buying in bulk)
