Understanding XY Axis Plotters

An XY axis plotter is a precision cutting and marking device that moves a toolhead in two linear axes — X (horizontal) and Y (vertical) — to reproduce vector-based designs on a flat substrate. In practical terms for product design, that usually means plotting lines, cutting shapes, scoring material, or applying adhesive-backed components with very fine positional control across a work area.

Plotters evolved from pen-based drafting machines into versatile production tools. Early devices traced engineering drawings; modern XY axis plotters exchange pens for blades, routers, ultrasonic tools, or pressure heads and are driven by digital toolpaths exported from CAD systems. This evolution has made them an indispensable bridge between concept and manufacturable part, particularly for flat materials such as tapes, foams, films and thin foils.

In contemporary product design, the XY axis plotter is valued for its flexibility and speed. It permits rapid prototyping, short-run production and bespoke component manufacture without the lead times or tooling costs associated with rotary die-cutting or moulding. For businesses that convert adhesive tapes and foams into finished components, plotters enable quick iteration, tight tolerances and direct integration with digital design workflows.

For ADDEV Parafix, which converts self-adhesive tapes, foams, films and foils into bespoke components, an XY axis plotter sits alongside rotary converting and die-cutting as a complementary technology. It is particularly useful where designs need to be changed quickly, where cutting complexities vary across small batches, or where prototyping must be completed before committing to expensive tooling.

Applications in Product Design

XY axis plotters have a wide range of applications in product design and are especially relevant to adhesive tape conversion. They play a central role in prototyping, testing, and producing bespoke components that require precision cuts, kiss-cuts or complex geometry without tooling.

Typical applications include:

Prototyping adhesive-backed gaskets, seals and mounting pads in low to medium volumes.
Producing sample parts for design validation and fit tests before committing to rotary die tooling.
Customising tapes and foams for bespoke assemblies — for example, variable-width strips, perforations or carrier-specific cuts.
Cutting thin films and foils used in electronics, medical device prototypes, and packaging inserts where accurate registration matters.

Integration with CAD software is a key factor that makes plotters attractive. Designers export vector files (typically DXF, SVG or native CAD toolpaths) and import them directly into the machine controller. This process preserves dimensions and tolerances and allows nesting optimisation to reduce material waste. It also accelerates iteration: a change in the CAD file can be realised on the plotter within minutes.

Another practical application is test-bedding adhesive behaviours. When converting tapes and foams, engineers often need to trial different adhesive systems, liner constructions or release profiles. An XY axis plotter enables the production of representative test coupons and assembly aids quickly, so adhesives can be evaluated under real assembly conditions without full production commitment.

Within an adhesive conversion line, plotters frequently serve as part of a hybrid workflow. For example, they are used for short-run bespoke orders while rotary die-cutting handles high-volume, repeatable geometries. Plotters can also apply controlled kiss-cuts to liners, cut carrier materials for complex assemblies, or score folded parts to make them ready for hand or machine assembly.

Technology	Best suited for	Strengths	Limitations
XY Axis Plotter	Short-to-medium runs, prototyping, bespoke components	Fast iteration, no tooling, fine vector cuts, CAD integration	Slower than rotary for very high volumes; cut depth limited by tool
Rotary Die-cutting	High-volume repeat production	High throughput, consistent cut quality	Tooling lead time and cost; less flexible for design changes
Laser Cutting	Intricate shapes in selected materials	Contactless cutting, burns/seals edges	Thermal effects on adhesives/films; not suitable for all materials
CNC Milling / Routing	Thicker substrates and non-flat geometries	Robust material removal, three-dimensional capability	Overkill for thin films; higher tool cost

The table above summarises where plotters sit relative to other technologies. For ADDEV Parafix customers, the choice is often driven by order volume, material compatibility and the need for design flexibility. Where quick changes or many variants are required, an XY axis plotter frequently emerges as the most pragmatic option.

Finally, plotters support the creation of assembly aids and jigs. Makers can cut temporary fixtures, registration marks and adhesive templates that speed up manual assembly or feeding into automated pick-and-place processes. This helps designers evaluate not just the component, but how it will be handled during assembly — a crucial consideration in product design for manufacturability.

Benefits of Using XY Axis Plotters

When considering production and prototyping workflows, the advantages of an XY axis plotter become apparent across precision, efficiency and cost. Below are the primary benefits designers and manufacturers typically see when using plotters for adhesive components and related parts.

Precision and accuracy in design

Plotters follow digitally defined toolpaths, delivering repeatable positional accuracy. This is essential for components that must align with holes, standoffs or printed circuitry. Because the machine executes the CAD file directly, tolerances are largely a function of the machine’s mechanical stability and the chosen tool rather than manual skill.

For adhesive components, accurate registration can mean the difference between reliable bonding and functional failure. Precise kiss-cuts prevent adhesive contamination of carrier liners and ensure parts peel cleanly from the carrier during assembly.

Efficiency in production processes

Unlike tooling-heavy methods, plotters require minimal setup. Designers can move from CAD to physical sample without waiting days for tooling manufacture. This shortens development cycles and allows multiple design variants to be produced quickly for comparative testing.

Plotters also support nesting and material optimisation. Modern nesting software reduces scrap by placing parts close together and rotating shapes where permissible. For businesses converting expensive adhesive films or specialty foams, this material efficiency adds up quickly.

Cost-effectiveness in prototyping

Tooling costs are a major barrier to iteration. Rotary dies, moulds and punches carry significant upfront cost and lead time. An XY axis plotter removes that barrier, enabling low-volume production and early-stage validation without substantial capital investment.

For small-batch orders or bespoke components — such as those required for medical devices, electronics enclosures, or custom sealing solutions — plotters keep unit costs reasonable while the design is finalised. They are therefore a strategic tool for businesses that need to balance design freedom against cost control.

Flexibility and material compatibility

Plotters handle a broad selection of materials commonly used in adhesive conversion: single-coated and double-coated tapes, closed-cell and open-cell foams, pressure-sensitive films, release liners, and thin foils. Different tools (razor blades, oscillating cutters, creasing wheels) extend the plotter’s capabilities, enabling everything from through-cuts to partial scores.

This material flexibility makes plotters an ideal in-house resource for design teams that work across multiple product categories. They support cross-disciplinary workflows where a single programmable machine can produce parts for different applications with only a tool change.

Lower risk when scaling up

Using plotters at the prototype stage reduces the risk of costly design revisions after committing to high-volume production tooling. It’s easier to detect and correct issues such as interference, adhesive placement errors, or assembly constraints before scale-up, which ultimately saves time and money during the product launch phase.

Additionally, manufacturers can produce pilot runs on a plotter to validate assembly processes and operator instructions ahead of transferring production to rotary dies or automation lines. This staged approach makes manufacturing ramp-up smoother and more predictable.

Challenges and Considerations

While XY axis plotters offer many advantages, they are not a universal solution. Implementing plotters effectively requires attention to costs, skillsets, and maintenance considerations. Below are the main challenges businesses should weigh when deciding whether to incorporate an XY axis plotter into their product design or production workflow.

Initial investment costs

Although plotters avoid the recurring cost of tooling for each new design, the machines themselves are an investment. High-spec industrial plotters with large beds, automated material handling and multiple tool stations command higher capital expenditure than basic benchtop models.

Businesses should assess the return on investment by considering expected use: frequency of prototyping, batch sizes for bespoke orders, and anticipated savings from reduced tooling and faster time-to-market. For many organisations, the cost is justified by the flexibility and reduced lead times; for others that only require occasional sample cuts, outsourcing to a specialist converter may be more economical.
Training and skill requirements

Operating an XY axis plotter effectively requires trained personnel. Skills include CAD preparation, nesting optimisation, toolpath generation, and knowledge of cutting parameters for different materials. Mis-set cutting depth, feed rates or tool selection can lead to poor-quality parts or material waste.

Companies often need to invest in training for design engineers and operators. However, this investment can be mitigated by partnering with experienced converters like ADDEV Parafix, who bring both machine capabilities and material knowledge to the collaboration. Outsourcing or hybrid approaches frequently combine in‑house design with external production support.
Maintenance and technical support

Plotters are precision mechanical systems and require regular maintenance: blade replacement, calibration, belt tensioning, and controller updates. Downtime can disrupt project timelines, so access to rapid technical support is crucial — particularly for businesses that depend on plotters for short lead-time deliveries.

When procuring a plotter, evaluate the vendor’s support network, spare parts availability, and warranty terms. For converters, robust preventive maintenance schedules and service contracts can keep machines productive. For firms choosing to outsource, selecting a partner with comprehensive support minimises production risk.
Throughput limits for very high volumes

XY axis plotters excel at flexibility but are generally slower than rotary die-cutting for very large, repeat orders. If a product enters full-scale mass production, rotary tooling or bespoke automation frequently becomes the more economical option due to higher cycle speeds and lower unit cost at scale.

Design teams should therefore use plotters strategically: for prototyping, product validation, and short-to-medium production runs, with a clear transition plan to higher-throughput processes when volumes justify tooling. This staged approach preserves flexibility early while enabling cost-efficient scale later.
Material and process limitations

Not all materials respond ideally to mechanical cutting methods. Some high-temperature adhesives, metallised films, or thick composites may require laser processing or specialised tooling. Thermal processes can damage certain adhesives, while mechanical tools may struggle with very brittle or highly elastic substrates.

Material testing remains an essential step. Before committing to a plotter-based workflow, run representative trials to confirm cut quality, edge condition and adhesive integrity. Collaborating with material experts helps identify the optimal combination of tool, speed and blade to achieve consistent results.

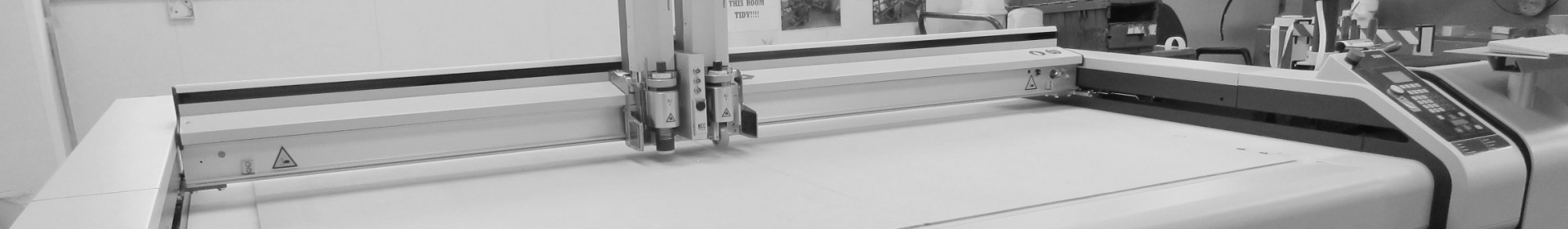

XY Axis Plotter for Product Design Row 5 image

Pros of Using XY Axis Plotters

Avoid recurring tooling costs for each new design.
Can be mitigated by partnering with experienced converters.
Regular maintenance can keep machines productive.
Excellent for flexibility in prototyping and short runs.
Can handle a variety of materials.

The Downsides

High initial capital expenditure for industrial models.
Requires trained personnel for effective operation.
Downtime can disrupt project timelines.
Generally slower than rotary die-cutting for large orders.
Not all materials respond well to mechanical cutting.

Future Trends in XY Axis Plotting Technology

XY axis plotters are evolving in response to broader trends in manufacturing technology. Several developments are poised to enhance their capabilities and relevance to product design, particularly in sectors that rely on adhesive conversion and bespoke components.

Advancements in software integration

Software improvements are making the CAD-to-toolpath workflow more seamless. Better nesting algorithms, automated toolpath optimisation and direct integration with common CAD platforms reduce setup time and improve material utilisation. Cloud-based job management systems enable designers and production teams to share files, track revisions and queue jobs for unattended operation.

For businesses like ADDEV Parafix, this means faster turnarounds and more efficient use of production capacity. Software-driven quality checks and preflight routines also reduce the risk of cutting errors, making the plotter more reliable for short lead-time orders.

Impact of automation and AI

Automation is extending the plotter’s role beyond cutting. Robotic material handling, automated loading/unloading, and inline vision systems are enabling near-continuous operation with less human intervention. Meanwhile, AI-led optimisations can analyse past jobs to suggest more efficient nesting patterns, ideal cutting parameters and predictive maintenance schedules.

These capabilities will be particularly useful for scaling bespoke manufacturing. For example, intelligent job scheduling can cluster similar materials or tool requirements to reduce changeover time, while machine learning can detect subtle trends that predict when blades or belts need replacing before a failure occurs.

Sustainability considerations in product design

Sustainability is increasingly central to product design decisions. Plotters contribute by enabling material-efficient nesting, reducing waste from overproduction, and supporting the use of recyclable or lower-impact substrates through precise cutting that avoids offcuts. Digital workflows also reduce the need for physical samples in early-stage design, cutting down on material consumption.

As suppliers and converters increasingly offer bio-based films, recycled foams and solvent-free adhesives, plotters will be an enabler for testing and validating these sustainable alternatives. Designers can trial materials quickly and assess the trade-offs between environmental performance and functional requirements.

Hybrid and multi-tool heads

Emerging plotter architectures incorporate modular heads that combine cutting, scoring, creasing and even low-force pick-and-place capabilities. These hybrid tools let a single pass perform multiple operations on a substrate, speeding up production and preserving registration between features.

For adhesive component production, this means a single machine can handle kiss-cuts, through-cuts, and creasing for folded parts without remounting the material. The result is lower handling, improved consistency and shorter lead times — particularly valuable when turning prototypes into production-ready parts.

Remote collaboration and digital twins

Remote work and distributed design teams are pushing for tools that support collaboration across locations. Digital twin representations of the plotter and production process allow designers to simulate jobs, check toolpaths and estimate cycle times before sending a job to the shop floor. This reduces back-and-forth and shortens the feedback loop between design and production.

For ADDEV Parafix customers, the practical advantage is clearer communication and fewer iterations. Designers can share a digital proof that maps exactly to the expected output, and converters can provide precise feedback on manufacturability and material behaviour before cutting a single part.

Conclusion: The Impact of XY Axis Plotters on Product Design

XY axis plotters occupy a strategic position in modern product design workflows. They provide a rapid, flexible and precise way to move from CAD to physical prototypes and short-run production, particularly for flat substrates such as adhesive tapes, foams, films and foils. For converters and manufacturers, plotters reduce the time and cost of iteration and help de-risk transitions to high-volume processes.

That said, plotters are not a universal replacement for rotary die-cutting or other high-throughput technologies. Their strengths lie in flexibility, quick changeover and CAD integration, while rotary and automated systems remain preferable for very large, stable volumes. Successful product development therefore uses plotters as part of a mixed-technology strategy: rapid prototyping and small-batch production on plotters, scaling up to tooling when volumes demand it.

As software integration, automation and material science progress, XY axis plotters will continue to gain functionality and deliver greater value to designers and manufacturers. Sustainability, AI-driven optimisation and hybrid tool heads will further enhance their role in converting innovative adhesive constructions into reliable, manufacturable components.

If your business needs to prototype or produce bespoke adhesive components with minimal tooling risk, an XY axis plotter is a practical, cost-effective option. At ADDEV Parafix we combine deep material knowledge with converting expertise and a range of cutting technologies to support every stage of product development. Contact our team to discuss how we can help you evaluate materials, produce samples and scale a validated design into production.
