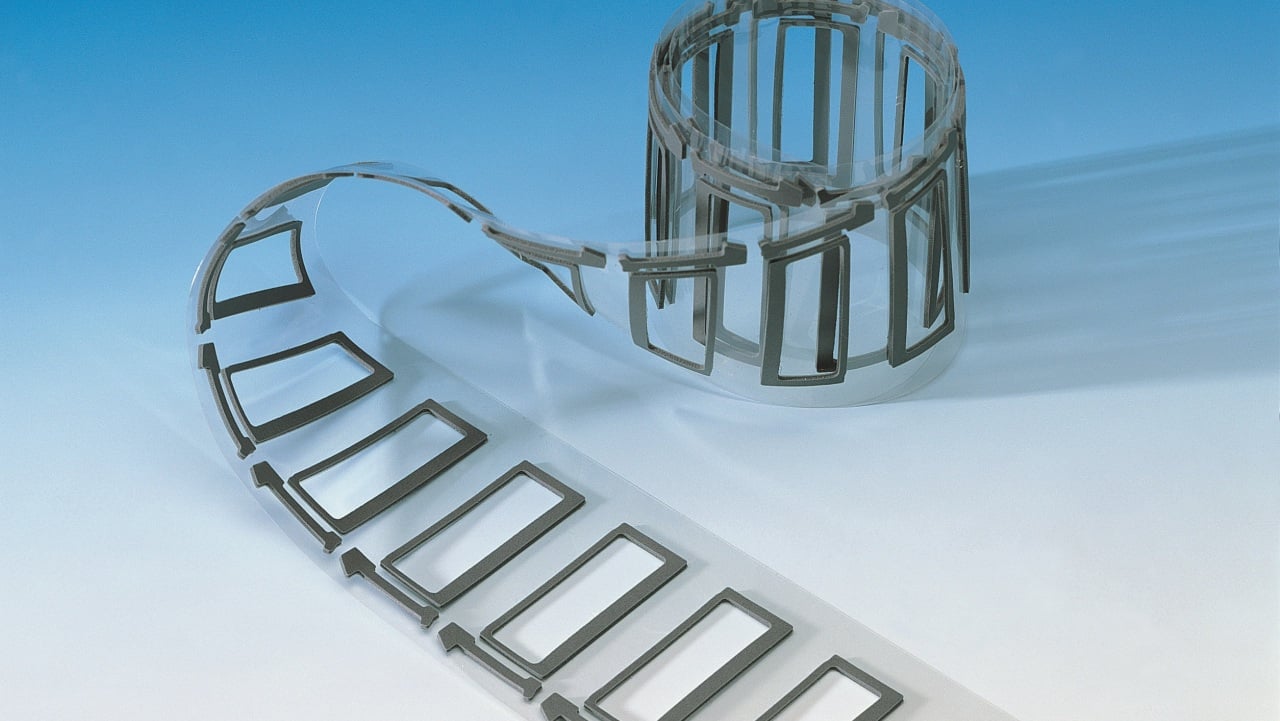

PU foam gaskets and seals custom made to your requirements

Polyurethane foam, commonly called ‘urethane’ foam is a low density foam, available in a range of colours, thicknesses, densities and firmness options. Our high quality polyurethane foams include Rogers’ Poron high performance foam products.

Utilising our range of converting capabilities, we can supply PU foam gasket and seals to your exact specification for your gasketing, sealing, gap filling and cushioning needs. We can also laminate your PU foam with a double sided adhesive and convert the material into a single or double sided foam tape. We also offer a range of polyurethane rubber products.

PU foam characteristics:

Low outgassing, plasticiser free, non-corrosive to metal

Inherently flame retardant without the use of additives

Excellent performance across a broad temperature range

Good vibration isolation

Absorbs impact

Material will not become brittle or crumble

Good chemical resistance

Quality manufacturing ensures product consistency

Excellent compression set resistance

Our applications include:

HVAC gaskets and seals

Dance floor cushioning

Automotive instrument panel isolation pads

Air and dust sealing of LCD screens

Search PU foams

Browse through our full range of PU foams below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

Select or remove columns to display

Adhesive
Carrier
Colour
Thickness (mm)
Min. temp (˚C)
Max. short temp (˚C)
Manufacturer / SOS
Density (kg/m³)
Shore Hardness (00)
Compression set % max - 23˚C
Compression Deflection 25% (kPa)
D/S or S/S
Breathable
Conformability
Fluid resist backing
Hypoallergenic
Sterilisation method
MVTR (gms/m2 /24 hrs)
Max width (cm)
Max length (m)

Filter By

Thickness range (mm)
Temp. range (˚C)
Density range (kg/m³)
Adhesive
Carrier
Colour
Manufacturer / SOS
Compression set % max - 23˚C
Comp. Deflection Range 25% (kPa)
Shore hardness range (00)
D/S or S/S
Breathable
Conformability
Fluid resist backing
Hypoallergenic
Sterilisation method
MVTR (gms/m2 /24 hrs)
Max width (cm)
Max length (m)

Reset Filters

Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

Title	Stock status	Adhesive	Breathable	Carrier	Colour	Compression Deflection 25% (kPa)	Compression set % max - 23˚C	Conformability	Density (kg/m³)	D/S or S/S	Fluid resist backing	Hypoallergenic	Manufacturer / SOS	Max length (m)	Max width (cm)	Min. temp (˚C)	MVTR (gms/m2 /24 hrs)	Shore Hardness (00)	Sterilisation method	Thickness (mm)
3M™ 4008	3	Acrylic		PU foam	Natural	No data	No data		240	Double sided			3M™			-30		No data		3.2
3M™ 4026	2	Acrylic		PU foam	Natural	No data	No data		175	Double sided			3M™			-30		No data		1.6
3M™ 4032	2	Acrylic		PU foam	Natural	No data	No data		320	Double sided			3M™			-30		No data		0.8
Rogers 4790-92-09020-04 P	3	None		PU foam	Black	5	2		144				Rogers			No data		<5		0.5
Rogers 4790-92-09030-04 P	3	None		PU foam	Black	6	2		144				Rogers			No data		<5		0.75
Rogers 4790-92-12020-04 P	2	None		PU foam	Black	6	2		192				Rogers			-20		<5		0.5
Rogers 4790-92-09039-04 P	3	None		PU foam	Black	7	2		144				Rogers			No data		<5		1
Rogers 4790-92-12059-04 P	2	None		PU foam	Black	8	2		192				Rogers			-20		<5		1.5
Rogers 4790-79-09021-04 P	3	None		PU foam	Black	8	5		144				Rogers			No data		No data		0.53
Rogers 4790-79-09039-04 P	3	None		PU foam	Black	9	5		144				Rogers			No data		No data		1
Rogers 4790-92-12039-04 P	2	None		PU foam	Black	10	2		192				Rogers			-20		<5		1
Rogers 4790-92-12375-04	2	None		PU foam	Black	10	2		192				Rogers			-20		<5		9.53
Rogers 4790-92-12155-04	3	None		PU foam	Black	10	2		192				Rogers			-20		<5		3.94
Rogers 4790-92-12250-04	3	None		PU foam	Black	10	2		192				Rogers			-20		<5		6.35
Rogers 4790-92-12425-04	3	None		PU foam	Black	10	2		192				Rogers			-20		<5		10.8
Rogers 4790-92-12030-04 P	2	None		PU foam	Black	12	2		192				Rogers			-20		<5		0.75
Rogers 4790-92-12049-04 P	2	None		PU foam	Black	12	2		192				Rogers			-20		<5		1.25
Rogers 4790-92-15039-04 P	2	None		PU foam	Black	12	2		240				Rogers			-20		<5		1
Rogers 4790-92-15120-04 P	2	None		PU foam	Black	12	2		240				Rogers			-20		<5		3.05
Rogers 4790-92-15125-04	2	None		PU foam	Black	14	2		240				Rogers			-20		2		3.18
Rogers 4790-92-15188-04	2	None		PU foam	Black	14	2		240				Rogers			-20		2		4.78
Rogers 4790-92-15250-04	3	None		PU foam	Black	14	2		240				Rogers			-20		2		6.35
Rogers 4790-92-15375-04	3	None		PU foam	Black	14	2		240				Rogers			-20		2		9.53
Rogers 4790-92-15125-04 PY2MID	3	None		PU foam	Black	14	2		240				Rogers			-20		<5		3.18
Rogers 4790-92-15188-04 PY2MID	3	None		PU foam	Black	14	2		240				Rogers			-20		<5		4.78
Rogers 4790-92-15250-04 PY2MID	3	None		PU foam	Black	14	2		240				Rogers			-20		<5		6.35
Rogers 4790-92-15375-04 PY2MID	3	None		PU foam	Black	14	2		240				Rogers			-20		<5		9.53
Rogers 4790-92-15500-04 PY2MID	3	None		PU foam	Black	14	2		240				Rogers			-20		<5		12.7
Rogers 4790-79-12021-04 P	2	None		PU foam	Black	18	5		192				Rogers			-40.5		No data		0.53
Rogers 4701-30-15188-04	2	None		PU foam	Black	21	4		240				Rogers			-51		<3		4.78
Rogers 4701-30-15250-04	2	None		PU foam	Black	21	4		240				Rogers			-51		<3		6.35
Rogers 4701-30-15375-04	2	None		PU foam	Black	21	4		240				Rogers			-51		<3		9.53
Rogers 4701-30-15500-04	2	None		PU foam	Black	21	4		240				Rogers			-51		<3		12.7
Rogers 4701-30-15188-04 PY2MID	3	None		PU foam	Black	21	4		240				Rogers			-51		<3		4.78
Rogers 4701-30-15250-04 PY2MID	3	None		PU foam	Black	21	4		240				Rogers			-51		<3		6.35
Rogers 4701-30-15375-04 PY2MID	3	None		PU foam	Black	21	4		240				Rogers			-51		<3		9.53
Rogers 4790-79-12039-04 P	3	None		PU foam	Black	21	5		192				Rogers			-40.5		No data		1
Rogers 4790-79-12080-04	3	None		PU foam	Black	21	5		192				Rogers			-40.5		No data		2.03
Rogers 4790-79-12158-04	3	None		PU foam	Black	21	5		192				Rogers			-40.5		No data		4.01
Rogers 4790-79-12375-04	3	None		PU foam	Black	21	5		192				Rogers			-40.5		No data		9.53
Rogers 4790-92-20081-04 P	2	None		PU foam	Black	22	2		320				Rogers			-18		No data		2.06
Rogers 4790-92-20093-04 PY2MID	3	None		PU foam	Black	22	2		320				Rogers			-18		No data		2.36
Rogers 4790-92-20125-04 PY2MID	3	None		PU foam	Black	22	2		320				Rogers			-18		No data		3.18
Rogers 4790-79-12030-04 P	3	None		PU foam	Black	25	5		192				Rogers			-40.5		No data		0.75
Rogers 4701-30-20062-04	2	None		PU foam	Black	35	4		320				Rogers			-51		12		1.57
Rogers 4701-30-20064-04 P	2	None		PU foam	Black	35	4		320				Rogers			-51		12		1.63
Rogers 4701-30-20093-04	2	None		PU foam	Black	35	4		320				Rogers			-51		12		2.36
Rogers 4701-30-20095-04 P	2	None		PU foam	Black	35	4		320				Rogers			-51		12		2.41
Rogers 4701-30-20125-04	2	None		PU foam	Black	35	4		320				Rogers			-51		12		3.18
Rogers 4701-30-20093-04 PY2MID	3	None		PU foam	Black	35	4		320				Rogers			-51		12		2.36
Rogers 4701-30-20125-04 PY2MID	3	None		PU foam	Black	35	4		320				Rogers			-51		12		3.18
Rogers 4701-30-15500-04 PY2MID	3	None		PU foam	Black	35	4		240				Rogers			-51		<3		12.7
Rogers 4790-92-25021-04 P	2	None		PU foam	Black	37	2		400				Rogers			-12		No data		0.53
Rogers 4790-92-25024-04 P	2	None		PU foam	Black	37	2		400				Rogers			-12		No data		0.61
Rogers 4790-92-25031-04 P	2	None		PU foam	Black	37	2		400				Rogers			-12		No data		0.79
Rogers 4790-92-25041-04 P	2	None		PU foam	Black	37	2		400				Rogers			-12		No data		1.04
Rogers 4790-79-15125-04	3	None		PU foam	Black	40	5		240				Rogers			-50		No data		3.18
Rogers 4790-79-15250-04	3	None		PU foam	Black	40	5		240				Rogers			-50		No data		6.35
Rogers 4701-40-15375-04	2	None		PU foam	Black	41	5		240				Rogers			-40		16		9.53
Rogers 4701-40-15500-04	2	None		PU foam	Black	41	5		240				Rogers			-40		16		12.7
Rogers 4701-40-15188-04 PY2MID	3	None		PU foam	Black	41	5		240				Rogers			-40		16		4.78
Rogers 4701-40-15250-04 PY2MID	3	None		PU foam	Black	41	5		240				Rogers			-40		16		6.35
Rogers 4701-40-15375-04 PY2MID	3	None		PU foam	Black	41	5		240				Rogers			-40		16		9.53
Rogers 4701-40-15500-04 PY2MID	3	None		PU foam	Black	41	5		240				Rogers			-40		16		12.7
Rogers 4701-40-15188-04	2	None		PU foam	Black	41	5		240				Rogers			-40		16		4.78
Rogers 4790-92-30012-04 P	2	None		PU foam	Black	57	4		480				Rogers			No data		No data		0.3
Rogers 4701-30-25021-04 P	2	None		PU foam	Black	58	4		400				Rogers			-51		16		0.53
Rogers 4701-30-25037-04 P	2	None		PU foam	Black	58	4		400				Rogers			-51		16		0.94
Rogers 4701-30-25047-04 P	2	None		PU foam	Black	58	4		400				Rogers			-51		16		1.19
Rogers 4701-30-25045-04	2	None		PU foam	Black	62	2		400				Rogers			-51		16		1.14
Rogers 4701-30-25031-04	2	None		PU foam	Black	62	2		400				Rogers			-51		16		0.79
Rogers 4701-30-25035-04	2	None		PU foam	Black	62	2		400				Rogers			-51		16		0.89
Rogers 4701-41-15188-04	2	None		PU foam	Black	64	5		240				Rogers			-40		18		4.78
Rogers 4701-41-15250-04	2	None		PU foam	Black	64	5		240				Rogers			-40		18		6.35
Rogers 4701-41-15375-04	2	None		PU foam	Black	64	5		240				Rogers			-40		18		9.53
Rogers 4701-41-15500-04	2	None		PU foam	Black	64	5		240				Rogers			-40		18		12.7
Rogers 4701-41-15188-04 PY2MID	3	None		PU foam	Black	64	5		240				Rogers			-40		18		4.78
Rogers 4701-41-15250-04 PY2MID	3	None		PU foam	Black	64	5		240				Rogers			-40		18		6.35
Rogers 4701-41-15375-04 PY2MID	3	None		PU foam	Black	64	5		240				Rogers			-40		18		9.53
Rogers 4701-41-15500-04 PY2MID	3	None		PU foam	Black	64	5		240				Rogers			-40		18		12.7
Rogers 4701-50-15188-04	2	None		PU foam	Black	69	5		240				Rogers			-40		18		4.78
Rogers 4701-50-15250-04	2	None		PU foam	Black	69	5		240				Rogers			-40		18		6.35
Rogers 4701-50-15375-04	2	None		PU foam	Black	69	5		240				Rogers			-40		18		9.53
Rogers 4701-50-15188-04 PY2MID	3	None		PU foam	Black	69	5		240				Rogers			-40		18		4.78
Rogers 4701-50-15250-04 PY2MID	3	None		PU foam	Black	69	5		240				Rogers			-40		18		6.35
Rogers 4701-50-15375-04 PY2MID	3	None		PU foam	Black	69	5		240				Rogers			-40		18		9.53
Rogers 4701-50-15500-04	3	None		PU foam	Black	69	5		240				Rogers			-40		18		12.7
Rogers 4701-50-15500-04 PY2MID	3	None		PU foam	Black	69	5		240				Rogers			-40		18		12.7
Rogers 4790-79-20093-04	3	None		PU foam	Black	72	5		320				Rogers			-14		No data		2.36
Rogers 4701-40-20093-04 PY2MID	3	None		PU foam	Black	76	5		320				Rogers			-40		16		2.36
Rogers 4701-40-20125-04 PY2MID	3	None		PU foam	Black	76	5		320				Rogers			-40		16		3.18
Rogers 4701-40-20062-04	2	None		PU foam	Black	76	5		320				Rogers			-40		17		1.57
Rogers 4701-40-20093-04	2	None		PU foam	Black	76	5		320				Rogers			-40		17		2.36
Rogers 4701-40-20125-04	2	None		PU foam	Black	76	5		320				Rogers			-40		17		3.18
Rogers 4790-79-20062-04	3	None		PU foam	Black	77	5		320				Rogers			-14		No data		1.57
Rogers 4701-41-20062-04	2	None		PU foam	Black	103	5		320				Rogers			-40		24		1.57
Rogers 4701-41-20125-04	2	None		PU foam	Black	103	5		320				Rogers			-40		24		3.18
Rogers 4701-41-20093-04 PY2MID	3	None		PU foam	Black	103	5		320				Rogers			-40		24		2.36
Rogers 4701-41-20125-04 PY2MID	3	None		PU foam	Black	103	5		320				Rogers			-40		24		3.18
Rogers HT-820-3.18	3	None		Silicone foam	Grey	110	No data		384				Rogers			-55		N/A		3.18
Rogers 4701-50-20062-04	2	None		PU foam	Black	117	5		320				Rogers			-40		24		1.57
Rogers 4701-50-20093-04	2	None		PU foam	Black	117	5		320				Rogers			-40		24		2.36
Rogers 4701-50-20125-04	2	None		PU foam	Black	117	5		320				Rogers			-40		24		3.18
Rogers 4701-50-20093-04 PY2MID	3	None		PU foam	Black	117	5		320				Rogers			-40		24		2.36
Rogers 4701-50-20125-04 PY2MID	3	None		PU foam	Black	117	5		320				Rogers			-40		24		3.18
Rogers HT-840-4.76	3	None		Silicone foam	Grey	152	No data		432				Rogers			-55		N/A		4.76
Rogers 4701-40-30045-04	2	None		PU foam	Black	173	5		480				Rogers			-40		34		1.14
Rogers 4701-40-30031-04	3	None		PU foam	Black	173	5		480				Rogers			-40		34		0.79
Rogers 4701-41-30045-04	2	None		PU foam	Black	193	5		480				Rogers			-40		55		1.14
Rogers 4701-41-30031-04	3	None		PU foam	Black	193	5		480				Rogers			-40		55		0.79
Rogers 4701-50-30012-04 P	2	None		PU foam	Black	221	5		480				Rogers			-40		55		0.3
Rogers 4701-50-30017-04	2	None		PU foam	Black	221	5		480				Rogers			-40		55		0.43
Rogers 4701-50-30031-04	2	None		PU foam	Black	221	5		480				Rogers			-40		55		0.79
Rogers 4701-50-30045-04	2	None		PU foam	Black	221	5		480				Rogers			-40		55		1.14
Rogers 4701-50-30020-04	3	None		PU foam	Black	221	5		480				Rogers			-40		55		0.51
Rogers 4701-60-15250-04	2	None		PU foam	Black	249	5		240				Rogers			-16		42		6.35
Rogers 4701-60-15125-04	3	None		PU foam	Black	249	5		240				Rogers			-16		42		3.18
Rogers 4701-60-15188-04	3	None		PU foam	Black	249	5		240				Rogers			-16		42		4.78
Rogers 4701-60-20062-04	2	None		PU foam	Black	428	5		320				Rogers			-16		55		1.57
Rogers 4701-60-20125-04	2	None		PU foam	Black	428	5		320				Rogers			-16		55		3.18
Rogers 4701-60-20188-04	2	None		PU foam	Black	428	5		320				Rogers			-16		55		4.78
Rogers 4701-60-20031-04	3	None		PU foam	Black	428	5		320				Rogers			-16		55		0.79
Rogers 4701-60-25062-04	2	None		PU foam	Black	643	5		400				Rogers			-16		63		1.57
Rogers 4701-60-25093-04	2	None		PU foam	Black	643	5		400				Rogers			-16		63		2.36
Rogers 4701-60-25031-04	3	None		PU foam	Black	643	5		400				Rogers			-16		63		0.79
Rogers HT-6240-3.18	3	None		Silicone foam	Transparent	1034	No data		No data				Rogers			-62		40		3.18
Vancive™ MED 5661A	2	Acrylic	No data	PE foam	White	No data	No data	No data	No data	Single sided	No data	No	Vancive™	No data	No data	No data	No data	No data	EtO & Gamma	1.05

PU foam in action

Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our PU foam gaskets and seals! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.
Customising your PU foam

Utilising the latest converting technologies, we can customise your PU foam to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
Die-cutting

Die-cutting

Clean Room Manufacturing

Clean Room Manufacturing

Slitting

Slitting

Laser cutting

Laser cutting

Guillotining

Guillotining

Laminating

Laminating

Bespoke presentations

Bespoke presentations

X/Y axis plotter

X/Y axis plotter

Rapid prototyping

Rapid prototyping

Automation solutions

Automation solutions

R&D

R&D

Computer Aided Design

Computer Aided Design

Contract converting

Contract converting

Part tolerances

Part tolerances
Learn more about Polyurethane foam

To learn more about PU foam and its uses, browse through our range of interesting and relevant videos, news and other media.
Filter By

Videos

News and articles

FAQs

Document downloads
8 considerations for your water tight seal design

8 considerations for your water tight seal design

Five tips for designing converted components

Five tips for designing converted components

What do ballerinas owe to industrial foam?

What do ballerinas owe to industrial foam?

Correct storage of Poron cellular urethane materials

Correct storage of Poron cellular urethane materials

Rogers Poron medical urethanes 4708

Rogers Poron medical urethanes 4708

Rogers Poron urethanes product availability

Rogers Poron urethanes product availability

Rogers Poron urethanes selection guide

Rogers Poron urethanes selection guide

Rogers understanding load versus natural frequency curves

Rogers understanding load versus natural frequency curves

Rogers understanding vibration isolation efficiency curves

Rogers understanding vibration isolation efficiency curves

Rotary Laser Arrives to ADDEV Parafix

Rotary Laser Arrives to ADDEV Parafix

Bumpon and rollstock products

Bumpon and rollstock products

Foam and rubber products

Foam and rubber products

PU FOAM GASKETS AND SEALS

PU foam gaskets and seals custom made to your requirements

Search PU foams

PU foam in action

Customising your PU foam

Learn more about Polyurethane foam
