  • Medical grade film for diagnostic applications

    Medical grade film is used in a range of diagnostic consumables and devices. They are available in a double or single sided construction with an acrylic or silicone medical grade adhesive, hydrophilic or heat seal coating.

    Utilising our range of converting capabilities, we can customise these materials into intricate die-cut pieces, sheets or roll form. We can also advise on presentations and assembly solutions.

    Medical grade film applications:

    • PCR and Q-PCR assay seals

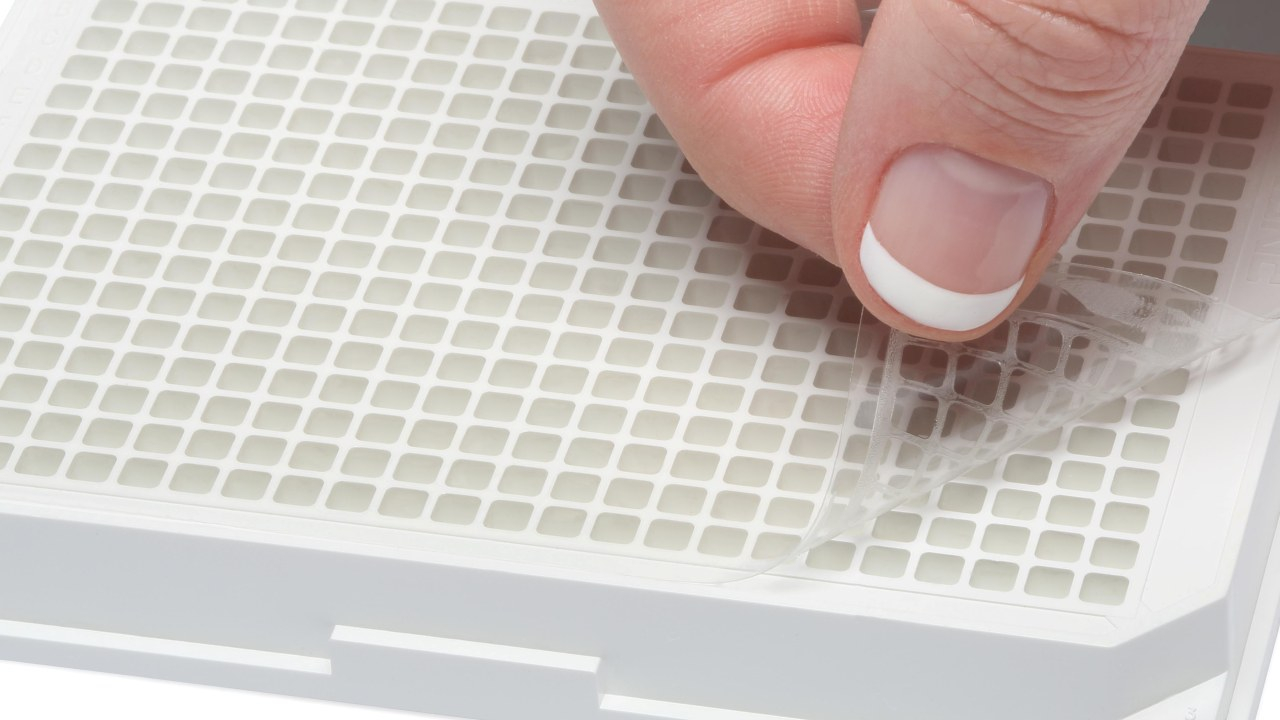

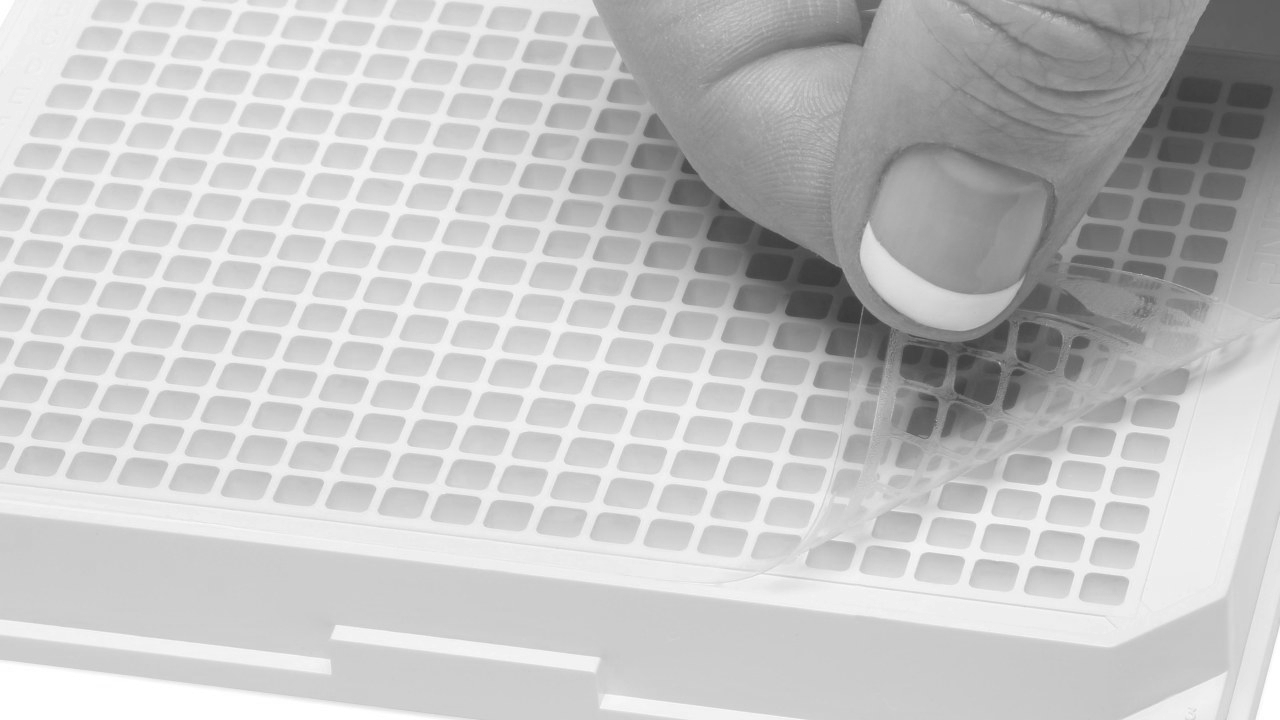

    • Microplate seals
    • Lid assemblies
    • Well sealing
    • Microfluidic device channel sealing
    • Microfluidic device top tape

  • Search medical grade films

    Browse medical grade films below for more detailed information and product data sheets. If you would like to ask us a question, please contact us.


    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • D/S or S/S
    • Breathable
    • Conformability
    • Fluid resist backing
    • Hypoallergenic
    • Sterilisation method
    • MVTR (gms/m2 /24 hrs)
    • Max width (cm)
    • Max length (m)
    • Manufacturer / SOS
    Filter By
    Filter By

    • Thickness range (mm)

    • Adhesive

    • Carrier

    • Colour

    • D/S or S/S

    • Breathable

    • Conformability

    • Fluid resist backing

    • Hypoallergenic

    • Sterilisation method

    • MVTR (gms/m2 /24 hrs)

    • Max width (cm)

    • Max length (m)

    • Manufacturer / SOS

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesive Breathable Carrier Colour Conformability D/S or S/S Fluid resist backing Hypoallergenic Manufacturer / SOS Max length (m) Max width (cm) MVTR (gms/m2 /24 hrs) Sterilisation method Thickness (mm)
    Vanciveâ„¢ MED 6501SI Vanciveâ„¢ MED 6501SI 2 Silicone / acrylic No data PU Film Transparent Very high Double sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    Solventumâ„¢ (formerly 3Mâ„¢) 9901Pb Solventumâ„¢ (formerly 3Mâ„¢) 9901Pb None No data PET Transparent No data Single sided No data No data 3Mâ„¢ No data 0.1
    Solventumâ„¢ (formerly 3Mâ„¢) 4075 Solventumâ„¢ (formerly 3Mâ„¢) 4075 Acrylic Yes None Transparent High Double sided No data Yes 3Mâ„¢ EtO 0.07
    Solventumâ„¢ (formerly 3Mâ„¢) 2487 Solventumâ„¢ (formerly 3Mâ„¢) 2487 Acrylic Yes PU Film White High Double sided No data Yes 3Mâ„¢ 700 EtO 0.24
    Solventumâ„¢ (formerly 3Mâ„¢) 2484 Solventumâ„¢ (formerly 3Mâ„¢) 2484 Silicone Yes PU Film White High Single sided No data Yes 3Mâ„¢ 700 EtO 0.24
    Adhesives Research 7759 Adhesives Research 7759 3 Acrylic No data PET Clear High Single sided Yes No data Adhesives Research EtO & Gamma 0.06
    Vanciveâ„¢ MED 5501SI Vanciveâ„¢ MED 5501SI 2 Silicone Yes PU Film Transparent Very high Single sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    Vanciveâ„¢ MED 5500SI Vanciveâ„¢ MED 5500SI 2 Silicone No data PU Film Transparent Very high Single sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    Vanciveâ„¢ MED 6504SI Vanciveâ„¢ MED 6504SI 2 Silicone / acrylic No data PU Film Transparent Very high Double sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    Vanciveâ„¢ MED 6503SI Vanciveâ„¢ MED 6503SI 2 Silicone / acrylic No data PU Film Transparent Very high Double sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    3Mâ„¢ 9960 3Mâ„¢ 9960 3 None No PET Transparent Low Double sided Yes No 3Mâ„¢ 1463 124.5 No data No data 0.17
    Vanciveâ„¢ MED 6500SI Vanciveâ„¢ MED 6500SI 2 Silicone / acrylic No data PU Film Transparent Very high Double sided No data Yes Vanciveâ„¢ 365 152.4 No data EtO 0.04
    3Mâ„¢ 9984 3Mâ„¢ 9984 3 None No PET Transparent No data Single sided No data No 3Mâ„¢ 1372 124.5 No data No data 0.1
    Vanciveâ„¢ MED 1834 Vanciveâ„¢ MED 1834 2 Synthetic rubber No data PET Transparent No data Double sided No data No Vanciveâ„¢ No data No data No data EtO & Gamma 0.08
    3Mâ„¢ 9832FP 3Mâ„¢ 9832FP 3 Acrylic Yes PU Pink Very high Single sided Yes Yes 3Mâ„¢ 117 1200 EtO & Gamma 0.02
    3Mâ„¢ 2476P 3Mâ„¢ 2476P 3 Silicone Yes PET spunlace White High Single sided Yes Yes 3Mâ„¢ 91.4 30.5 800 EtO 0.37
    3Mâ„¢ 2475P 3Mâ„¢ 2475P 3 Silicone Yes TPE film Clear High Single sided Yes Yes 3Mâ„¢ 183 61 600 EtO 0.12
    3Mâ„¢ 9967 3Mâ„¢ 9967 3 EVA / PE No PET Transparent Medium Single sided Yes No 3Mâ„¢ No data EtO & Gamma 0.05
    3Mâ„¢ 9964 3Mâ„¢ 9964 3 Acrylic No PET Transparent Medium Single sided Yes No 3Mâ„¢ 320 122 No data EtO & Gamma 0.06
    3Mâ„¢ 9962 3Mâ„¢ 9962 3 None No PET Transparent Low Double sided Yes No 3Mâ„¢ 2377 124.5 No data No data 0.1

  • Medical grade film in action

    Read through our case studies to find relevant, real-life examples of our applications utilising a medical grade film. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.


  • Customising your adhesive film

    Utilising the latest converting technologies, we can customise your adhesive film to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.

    • Die-cutting
      Die-cutting
    • Slitting
      Slitting
    • Laser cutting
      Laser cutting
    • Guillotining
      Guillotining
    • Laminating
      Laminating
    • Bespoke presentations
      Bespoke presentations
    • X/Y axis plotter
      X/Y axis plotter
    • Rapid prototyping
      Rapid prototyping
    • Clean room manufacturing
      Clean room manufacturing
    • Automation solutions
      Automation solutions
    • R&D
      R&D
    • Computer Aided Design
      Computer Aided Design
    • Contract converting
      Contract converting
    • Part tolerances
      Part tolerances
