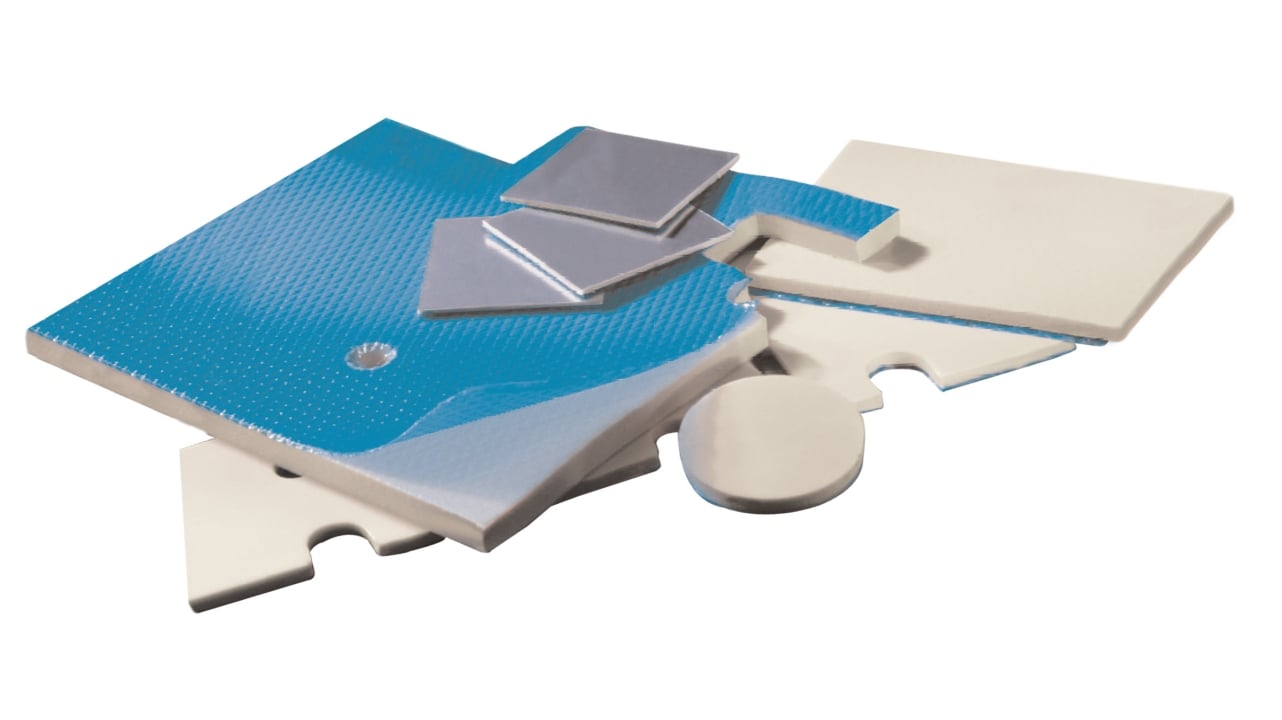

Thermally conductive gap pad

Thermally conductive gap pad

  • Overview
  • Products
  • Case Studies
  • Capabilities
  • Media

  • About thermal gap pads

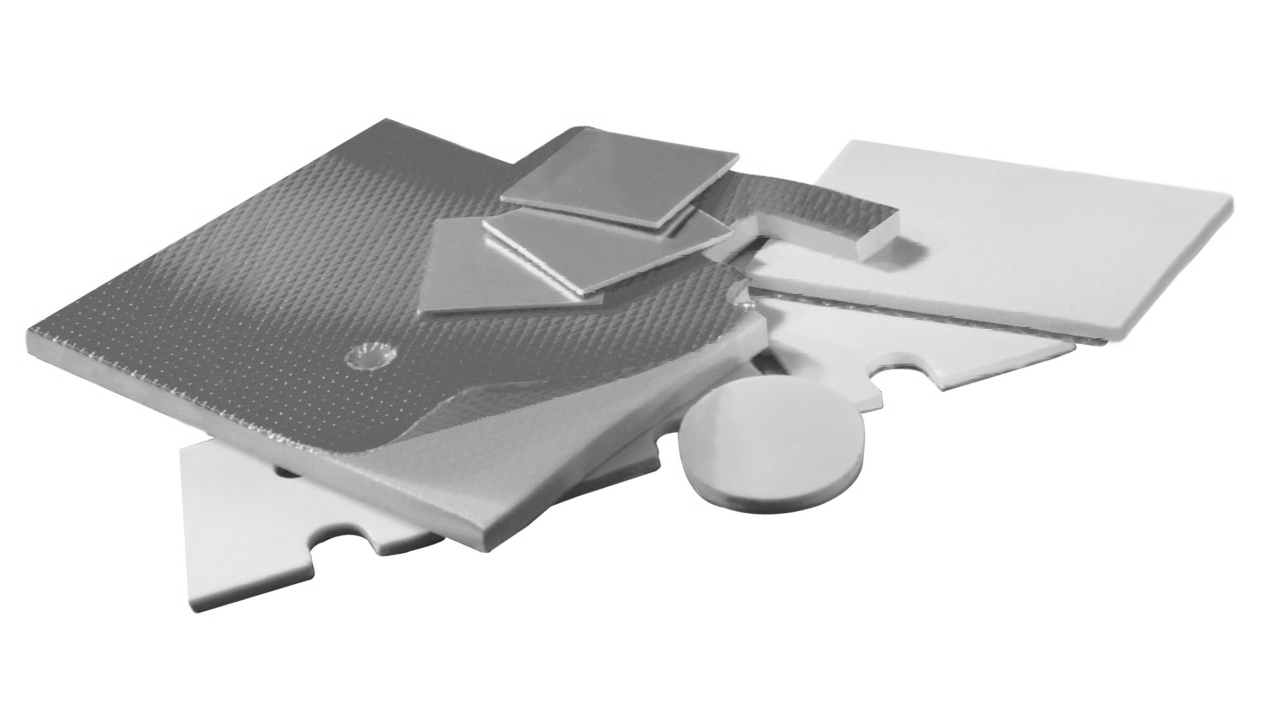

    Our range of thermal gap pads are designed to provide a heat transfer path between heat generating components and heat sinks, heat spreaders or other cooling devices. They are soft and conformable providing complete ‘wet out’ for optimum thermal transfer, as well as shock and vibration damping to minimise potential damage to components. Thermal gap pads are commonly used in applications including LED lighting, flat panel displays, mass storage devices, engine control units and wireless communications hardware.

    Thermal gap pad characteristics:

    • Meet UL ratings 94VO or 94HB
    • Very low thermal resistance
    • High temperature resistance
    • Easy handling
    • Electrically insulating
    • Available in acrylic and silicone formulations
    • Available in a range of thicknesses, colours and thermal conductivity strengths
    • Available in sheets or custom die-cuts

  • Search thermal gap pads

    Browse through our range of thermal gap pads below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.


    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Max. short temp (ËšC)
    • Thermal conductivity (W/m-K)
    • Shore Hardness (00)
    • Dielectric strength (kV/mm)
    • Thermal impedance (ËšC-cm²/W)
    • Max width (cm)
    • Max length (m)
    • Manufacturer / SOS
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (ËšC)

    • Thermal cond. range (W/m-K)

    • Dielectric strength (kV/mm)

    • Adhesive

    • Carrier

    • Colour

    • Max width (cm)

    • Max length (m)

    • Manufacturer / SOS

    • Thermal imp. range (ËšC-cm²/W)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesive Carrier Colour Dielectric strength (kV/mm) Manufacturer / SOS Max length (m) Max. short temp (˚C) Max width (cm) Shore Hardness (00) Thermal conductivity (W/m-K) Thermal impedance (˚C-cm²/W) Thickness (mm)
    3M™ 5514-0.2 3M™ 5514-0.2 3 None Filled silicone polymer‎ Grey 11-20 3M™ 58 1.6 1.2 0.2
    3M™ 5514-0.25 3M™ 5514-0.25 3 None Filled silicone polymer‎ Grey 11-20 3M™ 55 1.6 1.5 0.25
    3Mâ„¢ 5570-1.5 3Mâ„¢ 5570-1.5 3 None Filled acrylic polymer Ivory 11-20 3Mâ„¢ 50 1.3 10.9 1.5
    3M™ 5595-2.0 3M™ 5595-2.0 3 None Filled silicone polymer‎ Grey 11-20 3M™ 50-60 1.6 14.3 2
    3Mâ„¢ 5590H-1.0 3Mâ„¢ 5590H-1.0 3 None Filled acrylic polymer Light grey 31-40 3Mâ„¢ 60 3 4.5 1
    3Mâ„¢ 5590H-1.5 3Mâ„¢ 5590H-1.5 3 None Filled acrylic polymer Light grey 31-40 3Mâ„¢ 60 3 6.1 1.5
    3Mâ„¢ 5589H-1.5 3Mâ„¢ 5589H-1.5 3 None Filled acrylic polymer Light grey 21-30 3Mâ„¢ 50 2 No data 1.5

  • Thermal management in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our thermal gap pads. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.


  • Our capabilities

    Utilising the latest converting technologies, we can customise thermal gap pads to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
