  • About hydrocolloid tape

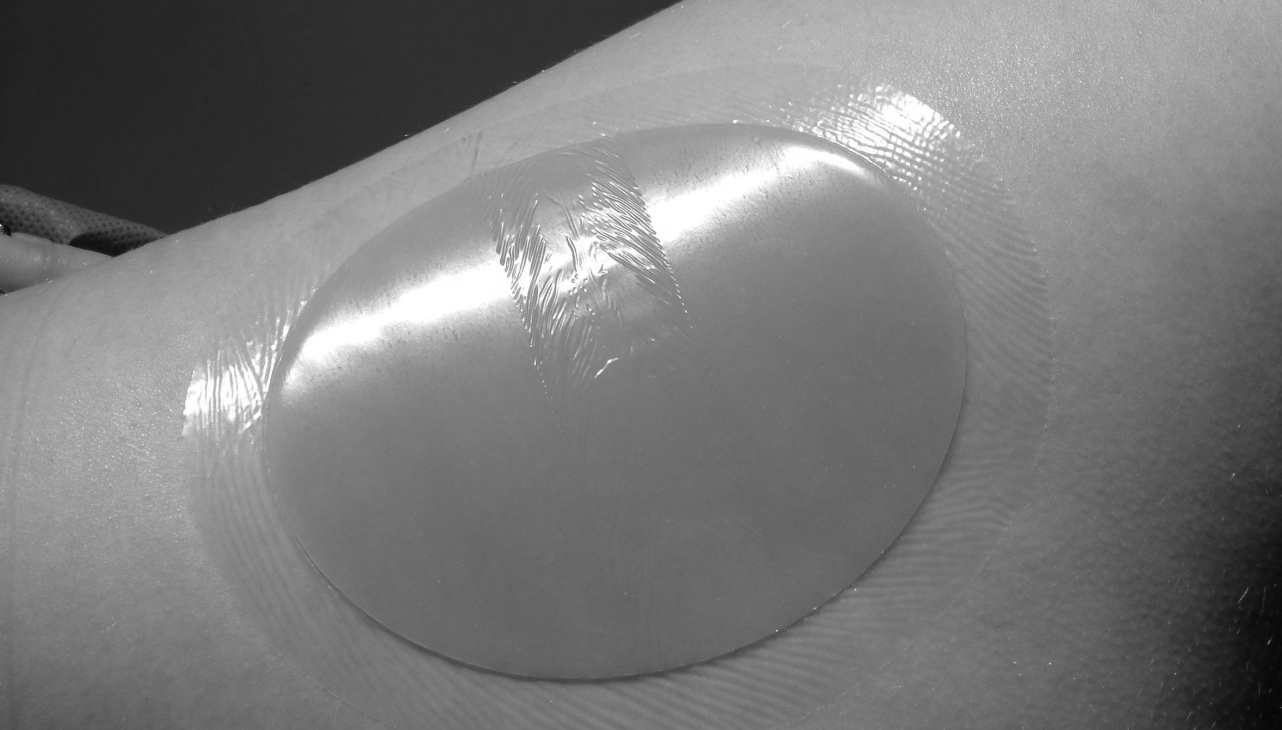

    Hydrocolloid adhesive has complex polymeric structures with the combined properties of adhesion and absorbency, making them ideal for stick to skin applications. Hydrocolloid tape creates an ideal environment for wound healing by sealing out dirt and germs as well as stimulating the healing process. Hydrocolloid adhesives are available as single coated, non-woven single coated and transfer tape constructions.

    Hydrocolloid adhesive characteristics:

    • Breathable
    • Highly conformable
    • Highly absorbent
    • Gentle to intact skin
    • High user comfort
    • Long-term wear

    Our hydrocolloid applications include:

    • Professional wound care
    • Ostomy and fixation of medical devices
    • Blister dressings

  • Search hydrocolloid tapes

    Browse hydrocolloid tapes below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

    Select or remove columns to display
    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • D/S or S/S
    • Breathable
    • Conformability
    • Fluid resist backing
    • Hypoallergenic
    • Sterilisation method
    • MVTR (gms/m2 /24 hrs)
    • Max width (cm)
    • Max length (m)
    • Stock status
    • Manufacturer / SOS
    Filter By
    Filter By
    Filter By

    • Thickness range (mm)

    • Adhesive

    • Carrier

    • Colour

    • D/S or S/S

    • Breathable

    • Conformability

    • Fluid resist backing

    • Hypoallergenic

    • Sterilisation method

    • MVTR (gms/m2 /24 hrs)

    • Max width (cm)

    • Max length (m)

    • Stock status

    • Manufacturer / SOS

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesive Breathable Carrier Colour Conformability D/S or S/S Fluid resist backing Hypoallergenic Manufacturer / SOS Max length (m) Max width (cm) MVTR (gms/m2 /24 hrs) Sterilisation method Thickness (mm)
    Vanciveâ„¢ MED 5583H Vanciveâ„¢ MED 5583H 3 Hydrocolloid No data PU Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 500 Gamma 0.37
    Vanciveâ„¢ MED 5791H Vanciveâ„¢ MED 5791H 2 Acrylic No data PET non-woven Tan No data Single sided No data Yes Vanciveâ„¢ No data No data 6000 Gamma 1.3
    Vanciveâ„¢ MED 2196H Vanciveâ„¢ MED 2196H 3 Hydrocolloid No data None Transparent Very high Double sided No data No data Vanciveâ„¢ 152.4 50 Gamma 2.4
    Vanciveâ„¢ MED 2159H Vanciveâ„¢ MED 2159H 3 Hydrocolloid No data None Transparent Very high Double sided No data No data Vanciveâ„¢ 152.4 50 Gamma 1.2
    Vanciveâ„¢ MED 21009H Vanciveâ„¢ MED 21009H 2 Hydrocolloid No data None No data Very high Double sided No No data Vanciveâ„¢ 365 152.4 16850 Gamma 0.3
    Vanciveâ„¢ MED 21010H Vanciveâ„¢ MED 21010H 3 Hydrocolloid No data None No data No data Double sided No No data Vanciveâ„¢ 365 152.4 5860 Gamma 0.6
    3Mâ„¢ 9943J 3Mâ„¢ 9943J 3 Hydrocolloid Yes PU Pale gold High Single sided Yes Yes 3Mâ„¢ 137 26 20 Gamma 0.5
    Vanciveâ„¢ MED 5588H Vanciveâ„¢ MED 5588H 3 Hydrocolloid No data PU Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 600 Gamma 0.57
    Vanciveâ„¢ MED 5584H Vanciveâ„¢ MED 5584H 3 Hydrocolloid No data PU Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 750 Gamma 0.72
    3Mâ„¢ 9943 3Mâ„¢ 9943 3 Hydrocolloid Yes PU Pale gold High Single sided Yes Yes 3Mâ„¢ 68 23.5 20 Gamma 0.5
    Vanciveâ„¢ MED 5581H Vanciveâ„¢ MED 5581H 3 Hydrocolloid No data PU Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 350 Gamma 1.06
    Vanciveâ„¢ MED 5580H Vanciveâ„¢ MED 5580H 3 Hydrocolloid No data PU Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 400 Gamma 0.57
    Vanciveâ„¢ MED 5083H Vanciveâ„¢ MED 5083H 3 Hydrocolloid No data PE Transparent No data Single sided No data Yes Vanciveâ„¢ No data No data 1900 Gamma 1.03
    Vanciveâ„¢ MED 2191H Vanciveâ„¢ MED 2191H 3 Hydrocolloid No data None Transparent No data Double sided No data Yes Vanciveâ„¢ No data No data 350 Gamma 1
    Vanciveâ„¢ MED 2190H Vanciveâ„¢ MED 2190H 3 Hydrocolloid No data None Transparent No data Double sided No data Yes Vanciveâ„¢ No data No data 550 Gamma 0.51
    Vanciveâ„¢ MED 2171H Vanciveâ„¢ MED 2171H 3 Hydrocolloid No data None Transparent No data Double sided No data Yes Vanciveâ„¢ No data No data 600 Gamma 0.3
    3Mâ„¢ 9945J 3Mâ„¢ 9945J 3 Hydrocolloid Yes PE / hydrocolloid Medium tone Medium Single sided Yes Yes 3Mâ„¢ 55 24.8 No data Gamma 0.75
    3Mâ„¢ 9944 3Mâ„¢ 9944 3 Hydrocolloid Yes PU / hydrocolloid Medium tone Medium Single sided Yes Yes 3Mâ„¢ 137 23.5 105 Gamma 0.7

  • Hydrocolloid tape case studies

    Read through our case studies to find relevant, real-life examples of our applications utilising hydrocolloid adhesive. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

  • Customising your hydrocolloid tape

    Utilising the latest converting technologies, we can customise your hydrocolloid tape to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.

    • Die-cutting
      Die-cutting
      We use a range of die-cutting equipment to create your bespoke adhesive components...
    • Slitting
      Slitting
      The cutting of large rolls of material to non-standard widths and lengths...
    • Laser cutting
      Laser cutting
      For cutting small, complicated geometries or features...
    • Guillotining
      Guillotining
      For laminating and sheeting to custom sizes...
    • Laminating
      Laminating
      Laminate materials fully or in selective areas, for a bespoke material construction...
    • Bespoke presentations
      Bespoke presentations
      For an efficient design that aids quick and accurate assembly...
    • X/Y axis plotter
      X/Y axis plotter
      For producing prototypes and small batch runs...
    • Rapid prototyping
      Rapid prototyping
      To test and demonstrate products in the early stages of design...
    • Clean room manufacturing
      Clean room manufacturing
      For a controlled manufacturing environment...
    • Automation solutions
      Automation solutions
      Reduce costs and enhance quality with automated pick and place equipment...
    • R&D
      R&D
      Assistance in developing the most effective part in form, function and presentation...
    • Computer Aided Design
      Computer Aided Design
      For accurate and optimum component design...
    • Contract converting
      Contract converting
      We can customise your material into bespoke shapes and combine it with complimentary products...
    • Part tolerances
      Part tolerances
      View our part tolerance standard values and talk to us about your requirements
