  • About board level shields

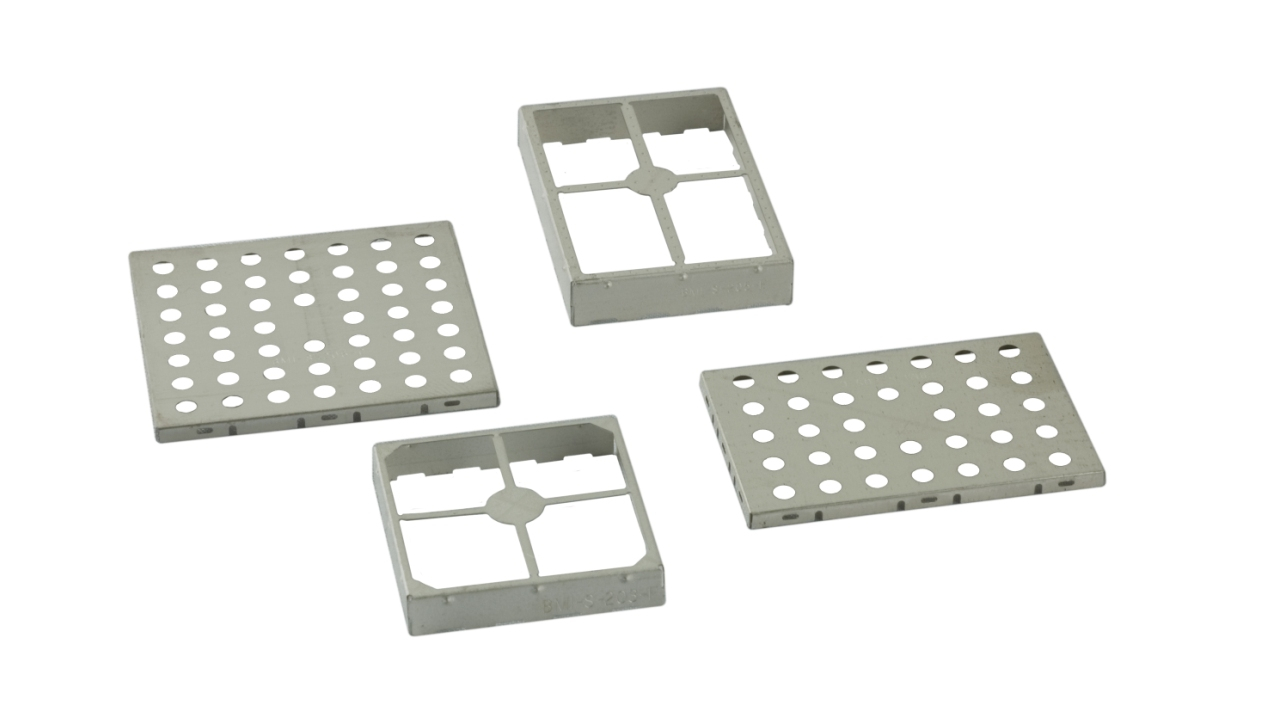

    Laird technologies board level shields are designed to maximise the performance of your devices; providing isolation of board level components. Their standard design shields are available in one or two-piece designs, with a bridge frame and cover, removable by automation included in the two-piece range.

    One-piece board level shields offer economical board level shielding where access to covered components is not necessary. Two-piece board level shields offer users the flexibility to inspect or repair shielded components without the risk of board damage by removing the entire shield. Their covers snap on and off with ease, making access to parts under the shield quicker and easier, removing the potential for board re-work.

    Board level shield characteristics:

    • Two-piece shields available assembled or unassembled
    • Fully solderable
    • Custom shapes available
    • Locking feature for corner joint stability
    • Designed to survive drop, shock and no-rattle tests
    • Available in tape-and-reel for automated pick and place applications
    • No tooling costs with one or two-piece standard designs
  • Search board level shields

    Browse through our range of board level shielding components below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.


    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Min. temp (˚C)
    • Max. short temp (˚C)
    • Shielding Effectiveness @GHz(dB)
    • Electrical resistance (Ω)
    • Manufacturer / SOS
    Filter By
    Filter By
    • Thickness range (mm)

    • Elec. resist range (Ω)

    • Adhesive

    • Carrier

    • Colour

    • Manufacturer / SOS

    • Shielding Effect. Range @GHz(dB)

    • Temp. range (˚C)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesive Carrier Colour Electrical resistance (Ω) Manufacturer / SOS Max. short temp (˚C) Min. temp (˚C) Shielding Effectiveness @GHz(dB) Thickness (mm)
    Laird BMI-S-103 Laird BMI-S-103 3 None CRS tin Silver N/A Laird No data 60 2.54
    Laird BMI-S-203 Laird BMI-S-203 3 None CRS tin Silver N/A Laird No data 60 5.08
