Filament reinforced insulating tape

  • Overview
  • Products
  • Case Studies
  • Capabilities
  • Media
  • About filament reinforced tape

    Filament reinforced tapes provide the dielectric strength of polyester film and the high mechanical strength of glass fibres. They offer low stretch, high tensile and edge-tear resistance for a more cost effective solution, compared with glass cloth tapes. Filament reinforced insulating tapes are excellent for anchoring lead wires to banding coils and end-turn taping. A special paper-backed filament tape is available for high-voltage oil-filled transformer applications.

    Utilising our range of converting capabilities we can offer filament reinforced insulating tapes in custom width and length rolls or in custom shapes and final presentations.

    Filament reinforced tape characteristics:

    • Conformable
    • Available in white and clear
    • Solvent resistant
    • Excellent physical and electrical characteristics
    • Tough and durable
    • High tensile strength
    • Available with an aggressive thermosetting rubber resin or solvent resistant acrylic adhesive

    Other products in our electrical insulation range:

  • Search filament reinforced tapes

    Browse through our range of filament reinforced tapes below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.


    Select or remove columns to display
    Select or remove columns to display
    • Stock status
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Max. short temp (˚C)
    • Insulation resistance (MΩ)
    • Elongation (%)
    • Electrostatic corrosion
    • Adhesion to steel (N/cm)
    • Tensile strength (N/cm²)
    • Manufacturer / SOS
    Filter By
    Filter By
    • Stock status

    • Thickness range (mm)

    • Temp. range (˚C)

    • Adhesive

    • Carrier

    • Colour

    • Insulation resistance (MΩ)

    • Electrostatic corrosion

    • Manufacturer / SOS

    • Elongation range (%)

    • Adhesion to steel range (N/cm)

    • Tensile strength range (N/cm²)

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesion to steel (N/cm) Adhesive Carrier Colour Electrostatic corrosion Elongation (%) Insulation resistance (MΩ) Manufacturer / SOS Max. short temp (˚C) Tensile strength (N/cm²) Thickness (mm)

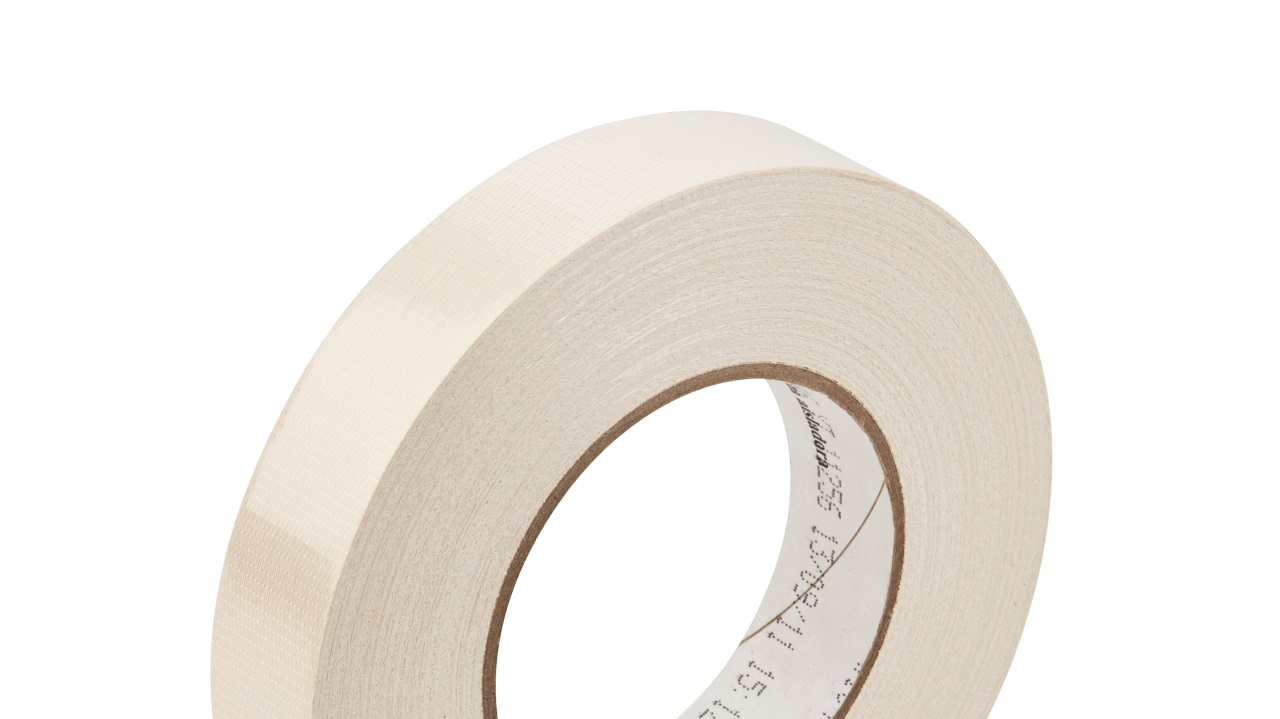

    3M™ 46 glass filament tape 3M™ 46 glass filament tape 1 5.4 Rubber Polyester Cream 1 5 3x10³ 3M™ 481 0.18
  • Filament reinforced tape in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of a roll of tape! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.


  • Customising your filament reinforced tape

    Utilising the latest converting technologies, we can customise your filament reinforced tape to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your tape offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.


  • Learn more about filament reinforced tape

    To learn more about our filament reinforced tape and its uses, browse through our range of interesting and relevant videos, news and other media.
