Radiated Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) are a critical problem in the design and manufacture of wirelessly transmitting electronic devices.

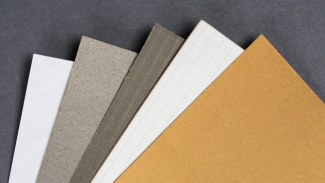

Virtually all of the most versatile and satisfactory shielding solutions available to a designer are obtainable from Parafix, including shielding tapes, absorbers, foams, mesh, vent panels and board level shields. Learn more below or watch our EMI shielding video.
Browse through our range of RFI and EMI shielding materials below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.
Thickness range (mm)
Elec. resist range (Ω)
Adhesive
Carrier
Colour
Stock status
Manufacturer / SOS
Shielding Effect. Range @GHz(dB)
Temp. range (ËšC)
Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.
Title | Stock status | Adhesive | Carrier | Colour | Electrical resistance (Ω) | Manufacturer / SOS | Max. short temp (˚C) | Min. temp (˚C) | Shielding Effectiveness @GHz(dB) | Thickness (mm) | |
---|---|---|---|---|---|---|---|---|---|---|---|
3Mâ„¢ 1170 | 1 | Acrylic | Aluminium foil | Silver | 0.01 | 3Mâ„¢ | -40 | 75 | 0.08 | ||
3Mâ„¢ AB5010 | 3 | Acrylic | Polymer resin | Grey | No data | 3Mâ„¢ | -25 | No data | 0.1 | ||
3Mâ„¢ CU35C | 3 | Acrylic | Copper foil | Copper | 0.005 | 3Mâ„¢ | No data | No data | 0.07 | ||
3Mâ„¢ 1181 | 1 | Acrylic | Copper foil | Copper | 0.005 | 3Mâ„¢ | No data | 80 | 0.07 | ||
3Mâ„¢ AB5050SHF | 3 | Acrylic | Polymer resin | Grey | No data | 3Mâ„¢ | -25 | No data | 0.5 | ||
Laird MaxAirâ„¢ vent | 3 | None | Copper-plated polycarbonate | Copper | N/A | Laird | N/A | 115 | 6.35 | ||
3Mâ„¢ 1182 | 3 | Acrylic | Copper foil | Copper | 0.01 | 3Mâ„¢ | No data | 85 | 0.09 | ||
3Mâ„¢ AG2300 | 3 | Acrylic | Silver coated fabric | Silver | 0.005 | 3Mâ„¢ | No data | No data | 0.1 | ||
3Mâ„¢ X-7001 | 3 | Acrylic | Copper-plated PET | Copper | 0.015 | 3Mâ„¢ | -40 | 60 | 0.16 | ||
3Mâ„¢ 1245 | 1 | Acrylic | Copper foil | Copper | 0.001 | 3Mâ„¢ | No data | 85 | 0.1 | ||
3Mâ„¢ AL25BT | 3 | Acrylic | Aluminium foil | Silver | 0.01 | 3Mâ„¢ | No data | No data | 0.06 | ||
3Mâ„¢ 1345 | 3 | Acrylic | Tin-plated copper foil | Silver | 0.001 | 3Mâ„¢ | -40 | 95 | 0.1 | ||
3Mâ„¢ AL25DC | 3 | Acrylic | Aluminium foil | Silver | 0.035 | 3Mâ„¢ | No data | No data | 0.08 | ||
Laird 4245 | 3 | None | Various | Various | N/A | Laird | -40 | >100 | 1 | ||
3Mâ„¢ AL36FR | 3 | Acrylic | Polyester / aluminium foil | Black | >0.02 | 3Mâ„¢ | No data | No data | 0.06 | ||
Laird 4584 | 3 | None | Various | Various | N/A | Laird | -40 | >100 | 1 | ||
3Mâ„¢ AL36NC | 3 | Acrylic | Polyester / aluminium foil | Silver | No data | 3Mâ„¢ | No data | 65 | 0.07 | ||
3Mâ„¢ 9703 | 2 | Acrylic | None | Clear | No data | 3Mâ„¢ | -40 | No data | 0.05 | ||
3Mâ„¢ AL39UL | 3 | Acrylic | Polyester / aluminium foil | Black | 0.1 | 3Mâ„¢ | No data | No data | 0.06 | ||
Laird 3050-113 | N/A | None | Nylon ripstop | Copper | N/A | Laird | No data | 60 | 0.13 | ||
Laird BMIC-001 | 3 | None | Beryllium copper | Copper | N/A | Laird | No data | No data | No data | ||
Laird 0077-010-04 | 3 | None | Beryllium copper | Silver | N/A | Laird | No data | 120 | Various | ||
Laird BMIC-010-2 | 3 | None | Tin | Silver | N/A | Laird | No data | No data | No data | ||
Laird 0097-505-03 | 3 | No data | Beryllium copper | Gold | No data | Laird | No data | 108 | Various | ||
Laird BMI-S-103 | 3 | None | CRS tin | Silver | N/A | Laird | No data | 60 | 2.54 | ||
3Mâ„¢ 1115B | 3 | Acrylic | Aluminium foil | Silver | 6.5 | 3Mâ„¢ | -40 | 120 | 0.15 | ||
Laird BMI-S-203 | 3 | None | CRS tin | Silver | N/A | Laird | No data | 60 | 5.08 | ||
3Mâ„¢ 2191FR | 3 | Acrylic | Nickel on copper-plated PET | Silver | 0.003 | 3Mâ„¢ | No data | 62 | 0.14 | ||
3Mâ„¢ CN3190 | 3 | Acrylic | Nickel on copper-plated PET | Grey | 0.05 | 3Mâ„¢ | No data | 70 | 0.1 | ||
Laird 3055-233 | N/A | None | Polyester ripstop | Grey | N/A | Laird | No data | >50 | 0.18 | ||
3Mâ„¢ CN3490 | 3 | Acrylic | Nickel on copper-plated PET | Grey | 0.05 | 3Mâ„¢ | No data | 65 | 0.07 | ||
Laird 8300-0038-44 | 3 | None | Tin-plated steel | Silver | N/A | Laird | -75 | 115 | 0.5 | ||
3Mâ„¢ CN4190 | 3 | Acrylic | Nickel on copper-plated PET | Grey | 0.05 | 3Mâ„¢ | No data | 70 | 0.12 | ||
3Mâ„¢ 9713 | 3 | Acrylic | None | No data | 3Mâ„¢ | No data | 0.09 | ||||
Laird 8300-0050-43 | 3 | None | Aluminium | Silver | N/A | Laird | -75 | 115 | 0.5 | ||
3Mâ„¢ CN4490 | 3 | Acrylic | Nickel on copper-plated PET | Grey | 0.05 | 3Mâ„¢ | No data | 65 | 0.05 |
Read through our projects to find relevant, real-life examples of the powerful problem solving capabilities of our EMI shielding materials. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

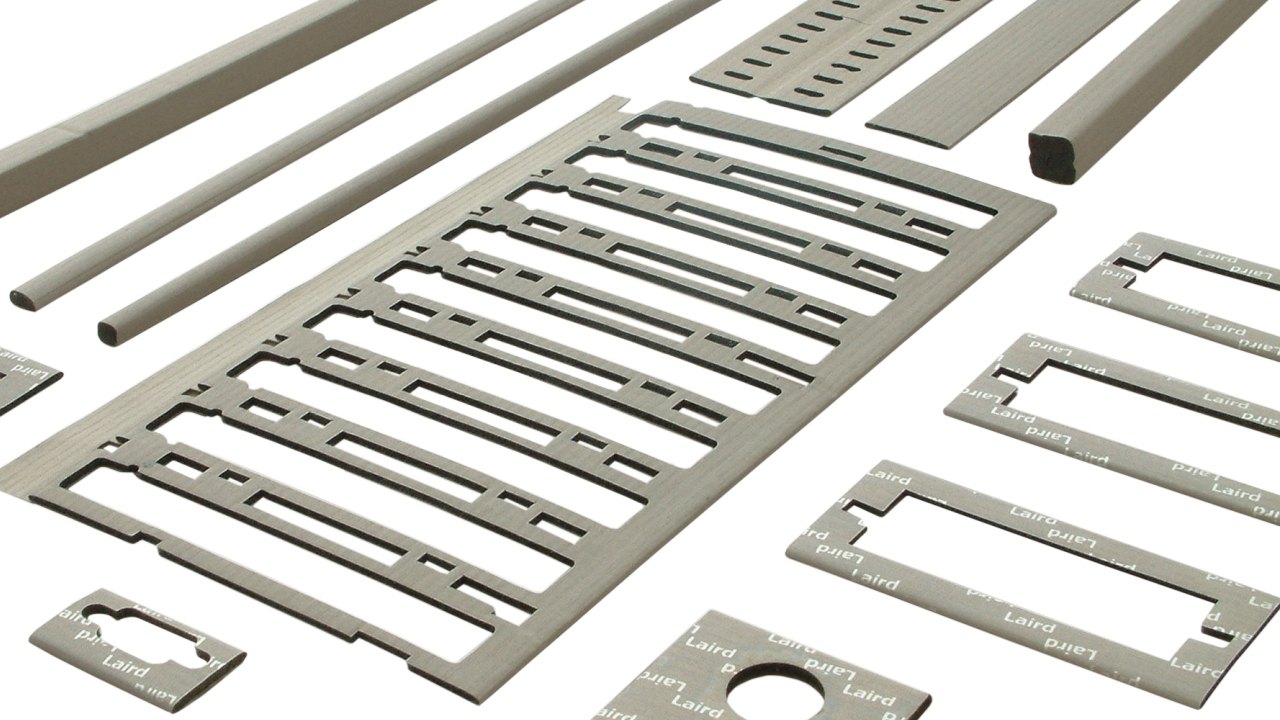

Utilising the latest converting technologies, we can customise your EMI shielding materials to create convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
To learn more about our RFI and EMI shielding products and their uses, browse through our range of interesting and relevant videos, news and other media.
View a range of automated assembly solutions using AccuPlace automated equipment. Â
Learn more about AccuPlace solutions here.Â
Learn about the EMI and RFI shielding materials available from Parafix.
Browse our range of shielding materials here.
