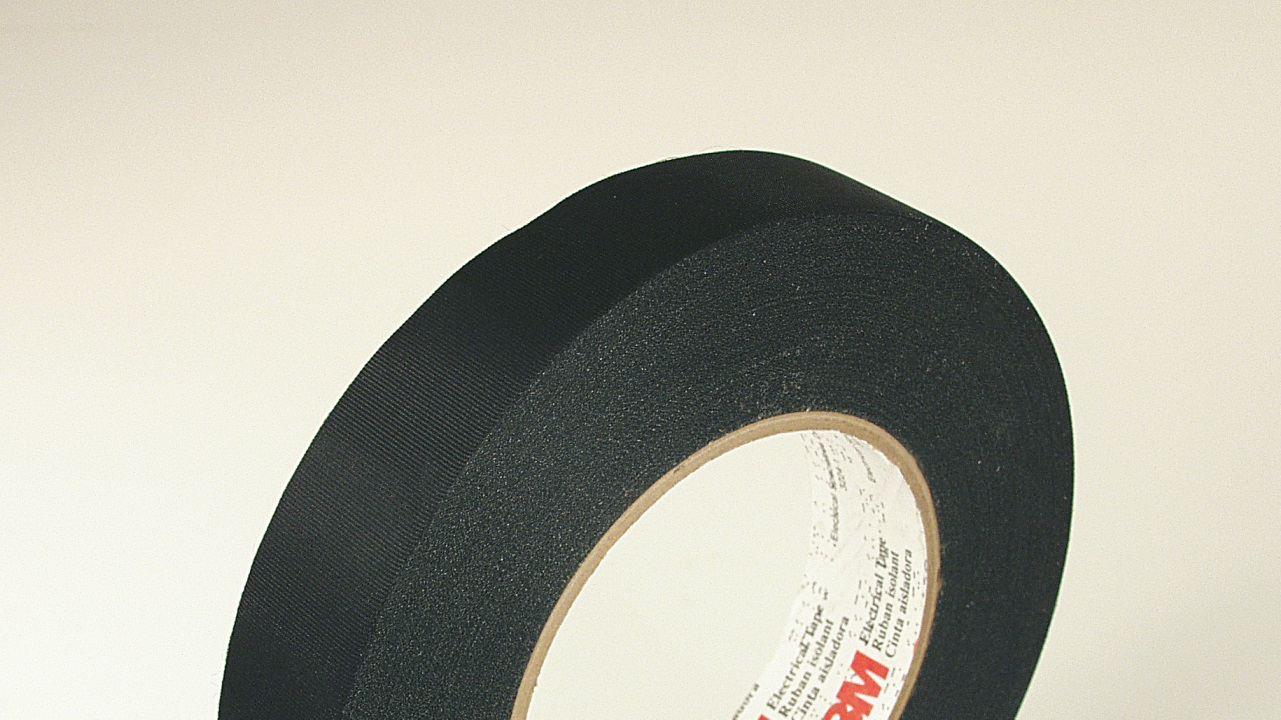

    The aesthetically pleasing acetate cloth tape offers excellent conformability in coil-wrapping applications up to 105°C plus excellent absorption of electrical insulation resins and varnishes. They are suited for applications such as anchoring ferrite strips on deflection yokes, as well as assorted insulating and holding coil applications where flame retardancy is a requirement.

    Utilising our range of converting capabilities we can offer acetate cloth tape in custom width and length rolls or in custom shapes and final presentations.

    Acetate cloth tape characteristics:

    • Very conformable and easy to handle
    • Available in a range of colours
    • Printable
    • Flame retardant
    • Good breaking strength, insulating and corrosion protection
    • Aggressive rubber resin adhesive

    Other products in our electrical insulation range:

  • Search acetate cloth tapes

    Browse through our range of acetate cloth tapes below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.


    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Max. short temp (˚C)
    • Insulation resistance (MΩ)
    • Elongation (%)
    • Electrostatic corrosion
    • Adhesion to steel (N/cm)
    • Tensile strength (N/cm²)
    • Manufacturer / SOS
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (˚C)

    • Adhesive

    • Carrier

    • Colour

    • Insulation resistance (MΩ)

    • Electrostatic corrosion

    • Manufacturer / SOS

    • Elongation range (%)

    • Adhesion to steel range (N/cm)

    • Tensile strength range (N/cm²)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesion to steel (N/cm) Adhesive Carrier Colour Electrostatic corrosion Elongation (%) Insulation resistance (MΩ) Manufacturer / SOS Max. short temp (˚C) Tensile strength (N/cm²) Thickness (mm)
    3M 11 3M 11 2 4.4 Rubber Cloth Black 1 10 >1x10⁴ 3M™ 62 0.18

  • Tape in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of an acetate cloth tape! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.


  • Customising your tape

    Utilising the latest converting technologies, we can customise your insulation tape to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your tape offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
