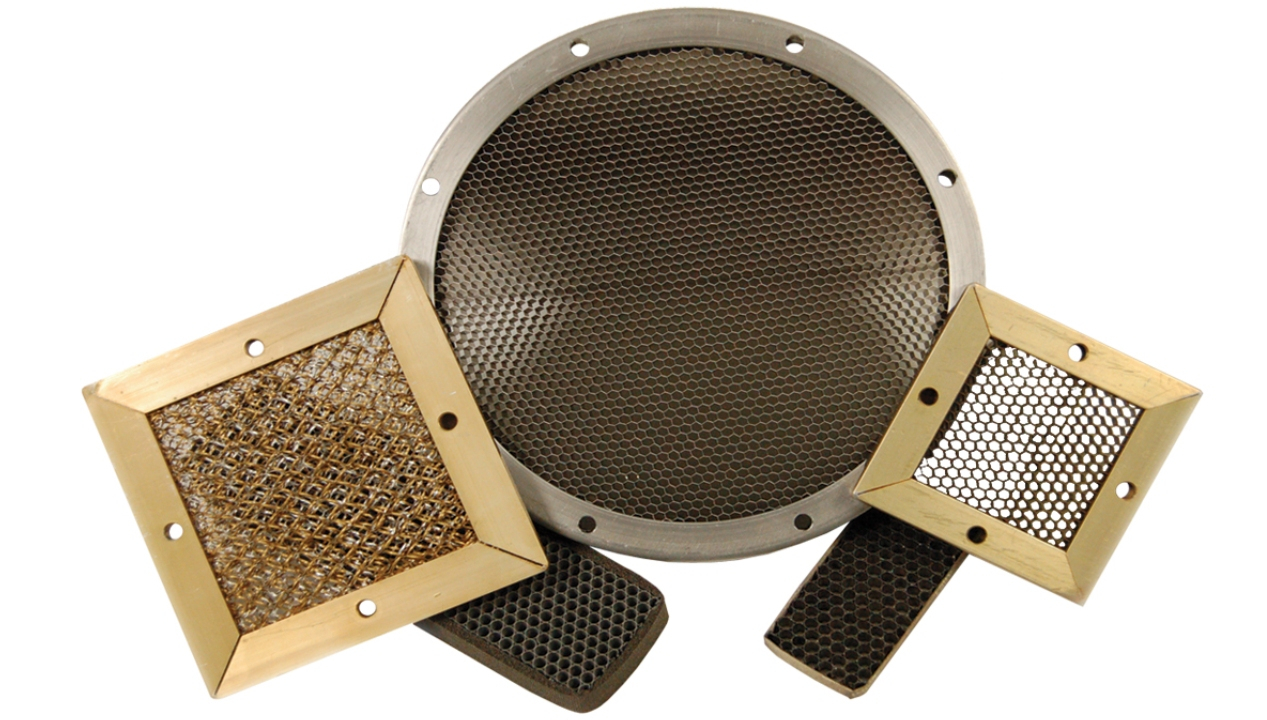

    Wire mesh EMI vent panels offer designers new versatility to meet airflow and EMI shielding for a range of applications, including telecommunications hardware equipment, fans, military applications, server racks and shielded rooms. Laird vent panel shields are available in framed and unframed designs, in a range of thicknesses and honeycomb cell sizes to suit your specific EMI, environmental and mechanical system requirements.

    EMI vent panel characteristics:

    • Excellent product rigidity and dent resistance
    • EMI gasket materials compatible with a wide variety of surfaces
    • Foam filters can be added
    • MaxAir™ vents increases useable air flow area by 10% to 20% compared to framed aluminium vent panels
    • MaxAir™ vents are half the weight of traditional aluminium honeycomb vent panels
    • Protective grill available for high traffic areas
    • Wide choice of materials and finishes to meet a broad range of shielding effectiveness requirements
    • UL 94 V0 rated versions available for flame resistance
    • Varied mounting configurations to meet environmental and space considerations
    • Can be manually inserted with slide-in motion or by compression fit
  • Search EMI vents

    Browse through our range of wire mesh EMI vent panels below for more detailed information and product data sheets. If you cannot find the product you need, please contact us.

    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Min. temp (˚C)
    • Max. short temp (˚C)
    • Shielding Effectiveness @GHz(dB)
    • Electrical resistance (Ω)
    • Manufacturer / SOS
    Filter By
    Filter By
    • Thickness range (mm)

    • Elec. resist range (Ω)

    • Adhesive

    • Carrier

    • Colour

    • Manufacturer / SOS

    • Shielding Effect. Range @GHz(dB)

    • Temp. range (˚C)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesive Carrier Colour Electrical resistance (Ω) Manufacturer / SOS Max. short temp (˚C) Min. temp (˚C) Shielding Effectiveness @GHz(dB) Thickness (mm)
    Laird MaxAir™ vent Laird MaxAir™ vent 3 None Copper-plated polycarbonate Copper N/A Laird N/A 115 6.35
  • Sheilding in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our EMI vent panels. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

  • Customising your products

    Utilising the latest converting technologies, we can customise flexible materials to create non-standard roll widths and lengths, or convenient and easy to handle components. EMI vent panels are available in a range of shapes sizes and honeycomb sizes. Customisation offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
