  • Venting and filtration materials to your required dimensions

    Venting and filtration materials provide a vital role in the management of temperature, humidity, gases and pressure, and the prevention of liquid, dust and chemical contamination. Our product range includes hydrophobic materials that prevent the ingress of water, yet remain a fully functioning breathable membrane, even in harsh environments. Our oleophobic materials operate in the same way but resist ingress of oils and other low surface tension fluids.

    When sourcing the right venting and filtration solution, there’s no need to be restricted by pre-determined dimensions, materials or adhesives. Parafix can produce parts to your exact specification, be it for a custom width roll, into sheets or as custom shapes. We can also advise on the optimum venting material for your application and offer a broad range of material combinations through our partnerships with a wide range of world leading material manufacturers. The presentation of your part can also be custom designed, for example, for ease of handling or automated assembly.

    This doesn’t have to cost more than an ‘off the shelf’ part, in fact, our bespoke service is often better value for money; reducing your design and testing costs, improving manufacturing efficiencies and enhancing the quality of your products.

    • Venting sheet material
      Venting sheet material
      Non-adhesive vent material, supplied in rolls, sheets or custom shapes...
    • Venting discs
      Venting discs

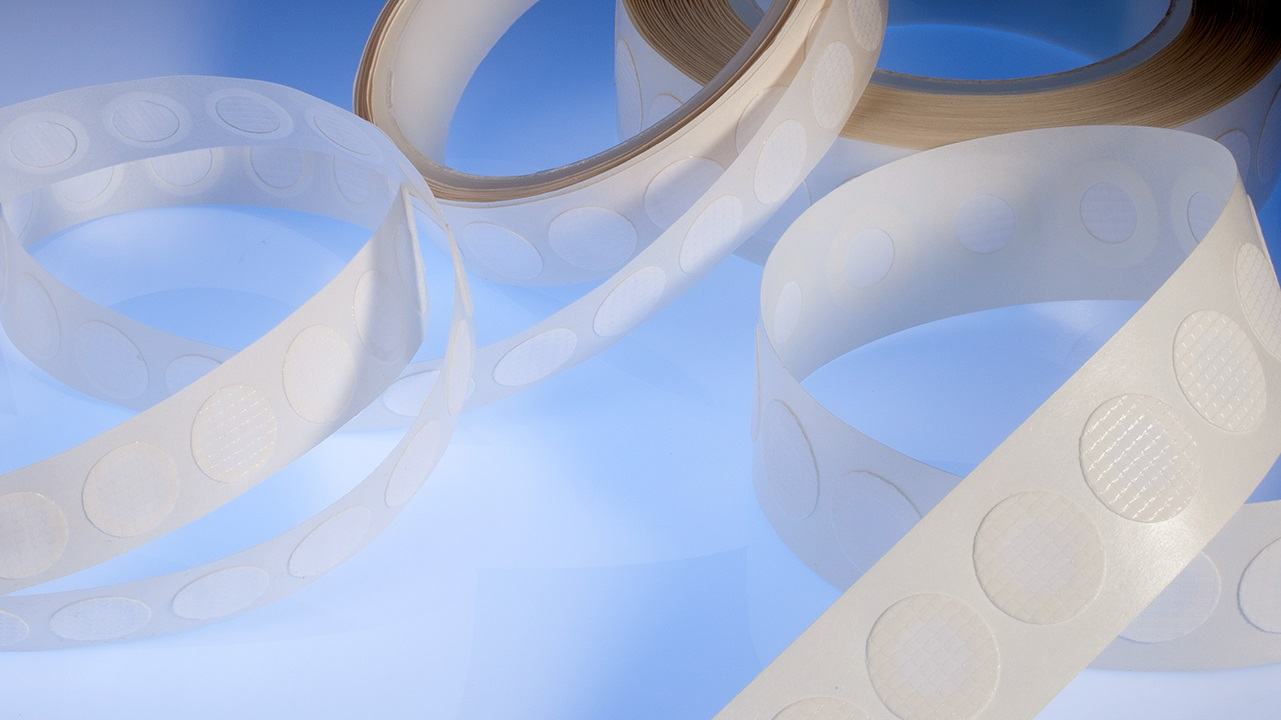

      Zone-coated adhesive-backed vent discs...

  • Search venting and filtration materials

    Browse through our range of venting and filtration materials below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

    Select or remove columns to display
    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Min. temp (˚C)
    • Max. temp (˚C)
    • Nominal gurley (seconds)
    • Water intrusion pressure (mb)
    • IP rating
    • Filtration efficiency >99.99% (µ)
    • Size
    • Stock status
    • Manufacturer / SOS
    • BFE (%)
    Filter By
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (˚C)

    • Airflow range (l/hr/cm² @70mb)

    • Water int. pressure range (mb)

    • Adhesive

    • Carrier

    • Colour

    • Nominal gurley (seconds)

    • IP rating

    • Filtration efficiency >99.99% (µ)

    • Size

    • Stock status

    • Manufacturer / SOS

    • BFE (%)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesive BFE (%) Carrier Colour Filtration efficiency >99.99% (µ) IP rating Manufacturer / SOS Max. temp (˚C) Min. temp (˚C) Nominal gurley (seconds) Size Thickness (mm) Water intrusion pressure (mb)
    Porex membrane disc PMV20I Porex membrane disc PMV20I 3 Modified acrylic PTFE White 0.1 IP65 Porex 85 -40 No data 10x7 0.44 ≥ 350
    Pall 5000RC Versapor Membrane Pall 5000RC Versapor Membrane 3 None Non-woven nylon White Pall No data No data 0.15-0.30 137.9
    Pall 3000RC Versapor Membrane Pall 3000RC Versapor Membrane 3 None Non-woven nylon White Pall No data 0.15-0.30 >206.8
    Pall 1200RC Versapor Membrane Pall 1200RC Versapor Membrane 3 None Non-woven nylon White Pall No data No data 0.15-0.30 >413.7
    Pall 800RC Versapor Membrane Pall 800RC Versapor Membrane 3 None Non-woven nylon White Pall No data No data 0.15-0.30 >551.6
    Pall 450RC Versapor Membrane Pall 450RC Versapor Membrane 3 None Non-woven nylon White Pall No data No data 0.15-0.30 ≥1103
    Pall 200RC Versapor Membrane Pall 200RC Versapor Membrane 3 None Non-woven nylon White Pall No data No data 0.15-0.30 ≥1793
    Porex membrane disc PMV30C Porex membrane disc PMV30C 3 Modified acrylic PTFE White 0.1 IP66 Porex 85 -40 No data 20x13 0.44 ≥700
    Porex membrane disc PMV30W Porex membrane disc PMV30W 3 Modified acrylic PTFE White 0.1 IP66 Porex 85 -40 No data 12.7x7.1 0.44 ≥700
    Porex membrane disc PMV30I Porex membrane disc PMV30I 3 Modified acrylic PTFE White 0.1 IP66 Porex 85 -40 No data 10x7 0.44 ≥700
    Porex membrane disc PMV30N Porex membrane disc PMV30N 3 Modified acrylic PTFE White 0.1 IP66 Porex 85 -40 No data 7x3 0.44 ≥700
    Porex membrane disc PMV20C Porex membrane disc PMV20C 3 Modified acrylic PTFE White 0.1 IP65 Porex 85 -40 No data 20x13 0.44 ≥ 350
    Porex membrane disc PMV20W Porex membrane disc PMV20W 3 Modified acrylic PTFE White 0.1 IP65 Porex 85 -40 No data 12.7x7.1 0.44 ≥ 350
    Porex material MD10 Porex material MD10 3 None PTFE White Porex 260 -40 No data 0.13 >175
    Porex membrane disc PMV20N Porex membrane disc PMV20N 3 Modified acrylic PTFE White 0.1 IP65 Porex 85 -40 No data 7x3 0.44 ≥ 350
    Porex membrane disc PMV15C Porex membrane disc PMV15C 3 Modified acrylic PTFE White 0.4 IP67 Porex 85 -40 No data 20x13 0.37 ≥ 265
    Porex membrane disc PMV15W Porex membrane disc PMV15W 3 Modified acrylic PTFE White 0.4 IP67 Porex 85 -40 No data 12.7x7.1 0.37 ≥ 265
    Porex membrane disc PMV15I Porex membrane disc PMV15I 3 Modified acrylic PTFE White 0.4 IP67 Porex 85 -40 No data 10x7 0.37 ≥ 265
    Porex membrane disc PMV15N Porex membrane disc PMV15N 3 Modified acrylic PTFE White 0.4 IP67 Porex 85 -40 No data 7x3 0.37 ≥ 265
    Porex material PMP32 Porex material PMP32 3 None PTFE White Porex 260 -40 5 0.25 No data
    Porex material PMP31 Porex material PMP31 3 None PTFE White Porex 260 -40 4 0.14 No data
    Porex material PMV30 Porex material PMV30 3 None PTFE White 0.1 IP66 Porex 260 -40 No data 0.25 >700
    Porex material MD25 Porex material MD25 3 None >99.9999 PTFE White Porex 260 -40 No data 0.19 >750
    Porex material PMV20 Porex material PMV20 3 None PTFE White 0.1 IP65 Porex 260 -40 No data 0.25 >350
    Porex material PMV15 Porex material PMV15 3 None PTFE White 0.4 IP67 Porex 260 -40 No data 0.18 >265
    Porex material MD15 Porex material MD15 3 None >99.99 PTFE White Porex 260 -40 No data 0.18 >265

  • Venting and filtration in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our venting and filtration materials! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

    Waterproofing membrane in marine audio device
    Waterproofing membrane in marine audio device
    Development of membrane seal to prevent salt water ingress and allow air and sound to pass...
    Ostomy Vent
    Ostomy Vent
    Design, manufacture and assembly of colostomy bag venting patches...

  • Customising your venting materials

    Utilising the latest converting technologies, we can customise your material to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.

    • Die-cutting
      Die-cutting
      We use a range of die-cutting equipment to create your bespoke adhesive components...
    • Slitting
      Slitting
      The cutting of large rolls of material to non-standard widths and lengths...
    • Laser cutting
      Laser cutting
      For cutting small, complicated geometries or features...
    • Guillotining
      Guillotining
      For laminating and sheeting to custom sizes...
    • Laminating
      Laminating
      Laminate materials fully or in selective areas, for a bespoke material construction...
    • Bespoke presentations
      Bespoke presentations
      For an efficient design that aids quick and accurate assembly...
    • X/Y axis plotter
      X/Y axis plotter
      For producing prototypes and small batch runs...
    • Rapid prototyping
      Rapid prototyping
      To test and demonstrate products in the early stages of design...
    • Clean room manufacturing
      Clean room manufacturing
      For a controlled manufacturing environment...
    • Automation solutions
      Automation solutions
      Reduce costs and enhance quality with automated pick and place equipment...
    • R&D
      R&D
      Assistance in developing the most effective part in form, function and presentation...
    • Computer Aided Design
      Computer Aided Design
      For accurate and optimum component design...
    • Contract converting
      Contract converting
      We can customise your material into bespoke shapes and combine it with complimentary products...
    • Part tolerances
      Part tolerances
      View our part tolerance standard values and talk to us about your requirements
