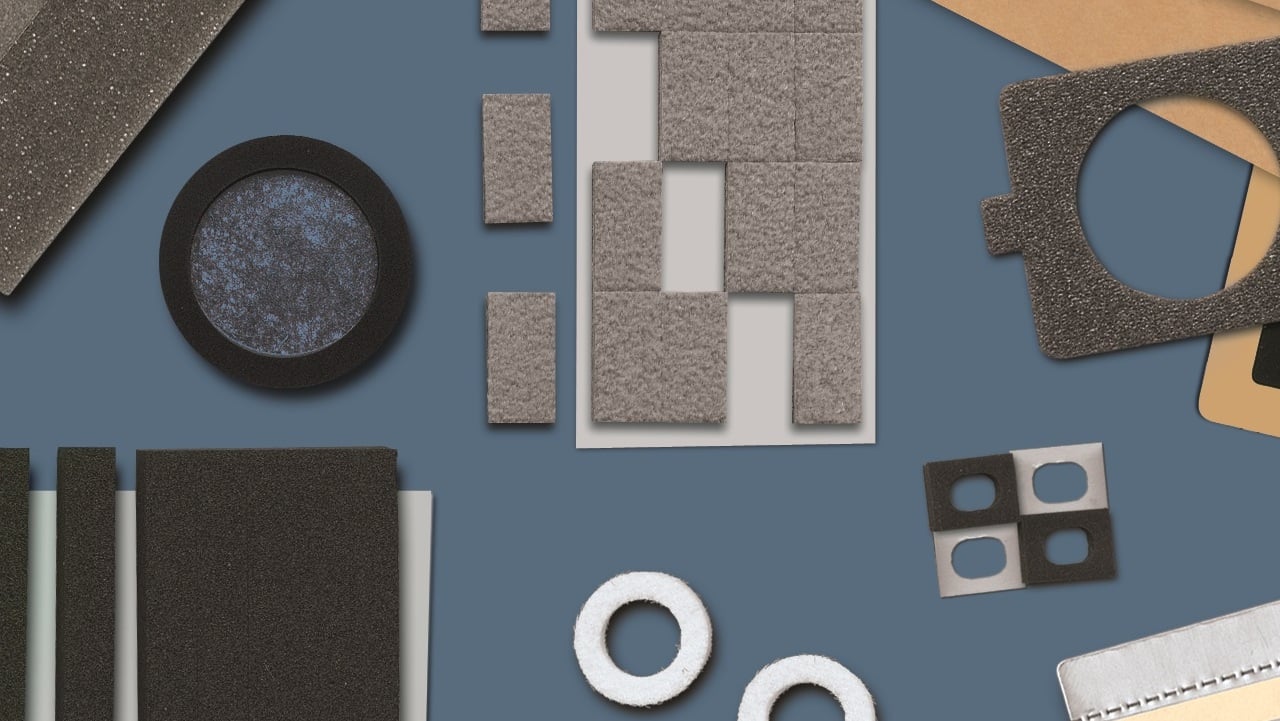

  • Our foam and rubber materials

    We supply a broad range of foam and rubber materials for design solutions including gasketing, sealing, vibration and sound dampening and energy absorption. Products are available with or without an adhesive coating; both of which can be laminated with an adhesive suited to your specific application needs.

    We source from World leading manufacturers, ensuring the suitability of our product range for general industrial applications and those requiring high performance features such as in communications, automotive and electronic devices.

    • Polyurethane foam
      Polyurethane foam
      Low density foams, available in a range of colours, thicknesses, densities and firmness options...
    • Urethane rubber
      Urethane rubber
      Strong and durable with excellent impact and abrasion resistance...
    • Neoprene foam
      Neoprene foam
      For superior sealing against ingress of liquids, including oils and chemicals...
    • Polyethylene foam
      Polyethylene foam
      A lightweight, yet strong foam material…

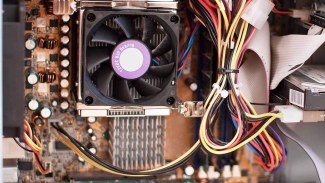

    • Polyester foam
      Polyester foam
      An open cell foam with good mechanical strength and compressibility...
    • Silicone foam
      Silicone foam
      Extremely resilient material that can perform in high pressure and temperature applications...
    • Silicone rubber
      Silicone rubber
      A highly resilient material, with a long service life, due to its ability to perform in a range of extreme environments...

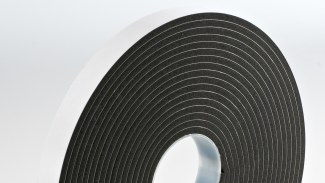

    • PVC foam
      PVC foam
      Very low moisture absorption and excellent resistance to environmental extremes...

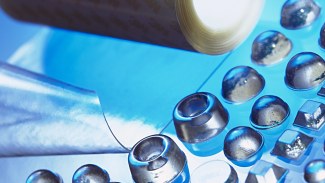

    • Bumpon products
      Bumpon products
      Cushioning, dampening and non-slip products that won't scratch or mark surfaces...
    • Medical grade foam
      Medical grade foam
      For gasketing and sealing in medical devices, patient cushioning and fluid management in wound dressings...
    • Conductive elastomers
      Conductive elastomers
      Ideal for use in applications that require environmental sealing as well as EMI shielding...

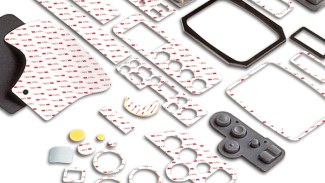

    • VHB acrylic foam tapes
      VHB acrylic foam tapes
      Offers extraordinary strength for a bond you can trust...

  • Search foam and rubber materials

    Browse through our full range of foam and rubber materials below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

    Select or remove columns to display
    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Min. temp (˚C)
    • Max. short temp (˚C)
    • Stock status
    • Manufacturer / SOS
    • Density (kg/m³)
    • Shore Hardness (00)
    • Compression set % max - 23˚C
    • Compression Deflection 25% (kPa)
    • D/S or S/S
    • Breathable
    • Conformability
    • Fluid resist backing
    • Hypoallergenic
    • Sterilisation method
    • MVTR (gms/m2 /24 hrs)
    • Max width (cm)
    • Max length (m)
    Filter By
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (˚C)

    • Density range (kg/m³)

    • Adhesive

    • Carrier

    • Colour

    • Stock status

    • Manufacturer / SOS

    • Compression set % max - 23˚C

    • Comp. Deflection Range 25% (kPa)

    • Shore hardness range (00)

    • D/S or S/S

    • Breathable

    • Conformability

    • Fluid resist backing

    • Hypoallergenic

    • Sterilisation method

    • MVTR (gms/m2 /24 hrs)

    • Max width (cm)

    • Max length (m)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesive Breathable Carrier Colour Compression Deflection 25% (kPa) Compression set % max - 23˚C Conformability Density (kg/m³) D/S or S/S Fluid resist backing Hypoallergenic Manufacturer / SOS Max length (m) Max. short temp (˚C) Max width (cm) Min. temp (˚C) MVTR (gms/m2 /24 hrs) Shore Hardness (00) Sterilisation method Thickness (mm)
    3M™ 4926 VHB™ 3M™ 4926 VHB™ 2 Acrylic Foamed acrylic adhesive Grey No data No data 720 3M™ -30 No data 0.4
    Scapa 5469 Scapa 5469 2 Acrylic PE foam Black No data No data No data Scapa -40 No data 1
    3M™ 4613F VHB™ 3M™ 4613F VHB™ 3 Acrylic Foamed acrylic adhesive White No data No data 840 3M™ -30 No data 1.1
    3M™ RP16 VHB™ 3M™ RP16 VHB™ 2 Modified acrylic Foamed acrylic adhesive Grey No data No data 720 3M™ -35 No data 0.4
    Rogers 4790-92-12250-04 Rogers 4790-92-12250-04 3 None PU foam Black 10 2 192 Rogers -20 <5 6.35
    Rogers 4701-30-15188-04 Rogers 4701-30-15188-04 2 None PU foam Black 21 4 240 Rogers -51 <3 4.78
    Rogers HT-870-2.39 Rogers HT-870-2.39 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 2.39
    Rogers 4790-92-25031-04 P Rogers 4790-92-25031-04 P 2 None PU foam Black 37 2 400 Rogers -12 No data 0.79
    Rogers 4701-30-25045-04 Rogers 4701-30-25045-04 2 None PU foam Black 62 2 400 Rogers -51 16 1.14
