  • About electrically conductive thermal interface materials

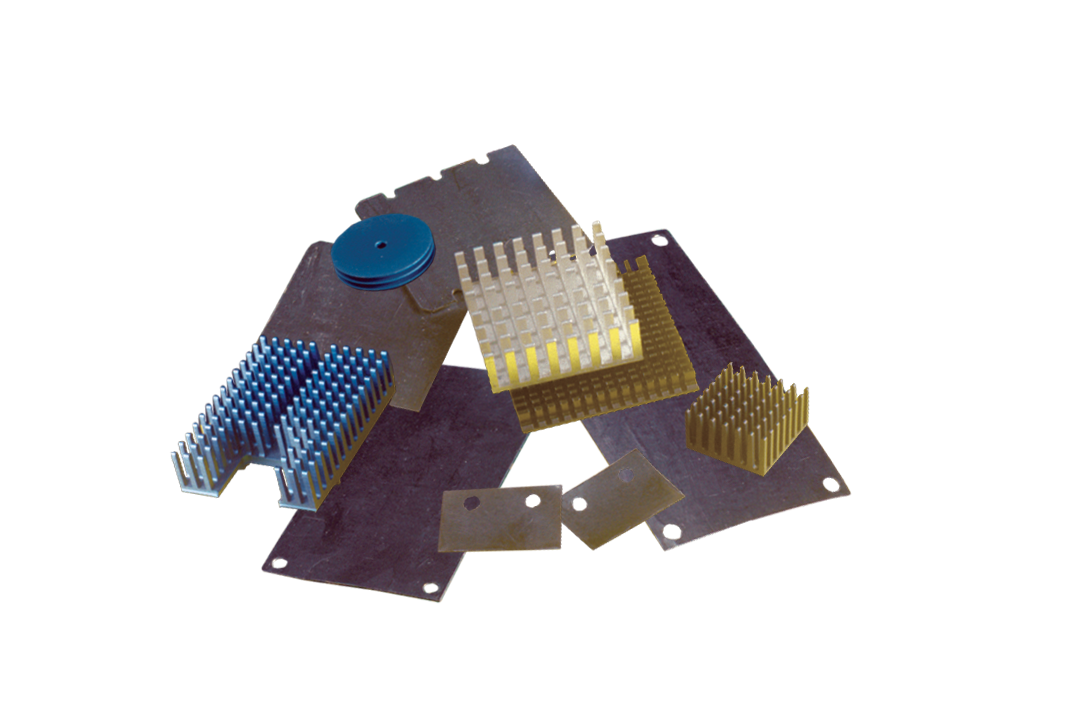

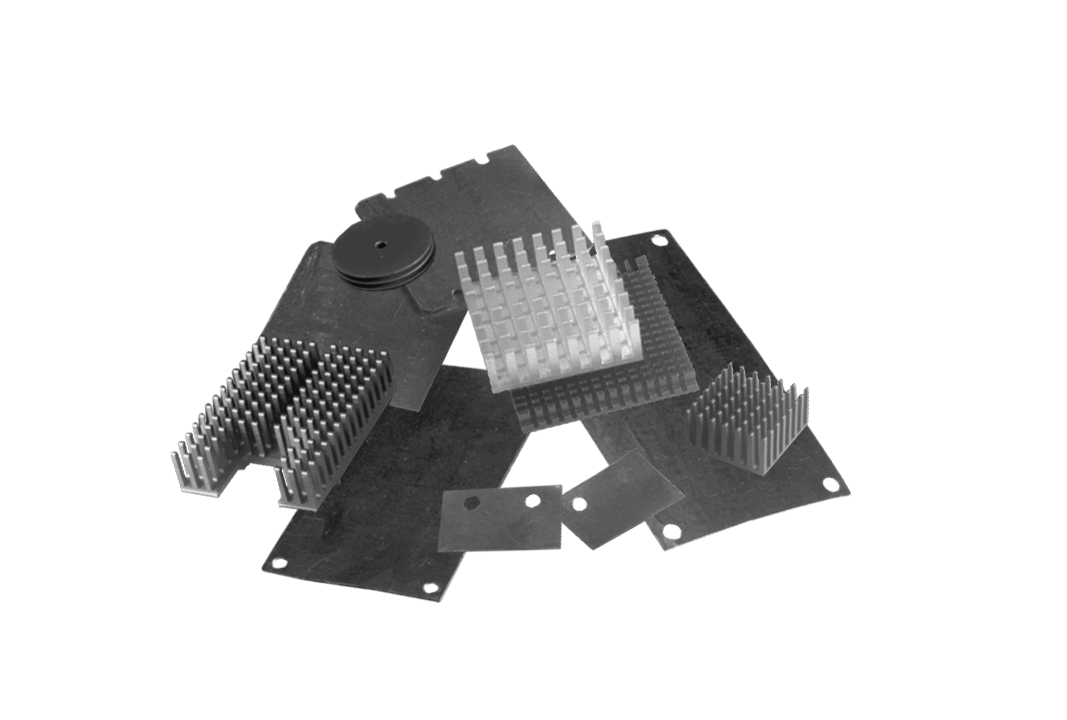

    Our electrically conductive materials offer a high performance and cost effective thermal management solution where electrical conductivity is a requirement. They consist of 98% graphite composite with a unique grain-oriented, plate-like structure, for conformity to surfaces, maximising heat transfer.

    Material characteristics:

    • Low thermal resistance
    • Available in a range of thicknesses
    • High thermal conductivity
    • Available in roll, sheet or die-cut form
    • UL94VO flammability rating
    • Available with a thin adhesive on one side

  • Search conductive thermal interface materials

    Browse our trusted range of thermal interface pads with electrical conductivity below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

    Select or remove columns to display
    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Max. short temp (˚C)
    • Thermal conductivity (W/m-K)
    • Shore Hardness (00)
    • Dielectric strength (kV/mm)
    • Thermal impedance (˚C-cm²/W)
    • Max width (cm)
    • Max length (m)
    • Stock status
    • Manufacturer / SOS
    Filter By
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (˚C)

    • Thermal cond. range (W/m-K)

    • Dielectric strength (kV/mm)

    • Adhesive

    • Carrier

    • Colour

    • Max width (cm)

    • Max length (m)

    • Stock status

    • Manufacturer / SOS

    • Thermal imp. range (˚C-cm²/W)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesive Carrier Colour Dielectric strength (kV/mm) Manufacturer / SOS Max length (m) Max. short temp (˚C) Max width (cm) Shore Hardness (00) Thermal conductivity (W/m-K) Thermal impedance (˚C-cm²/W) Thickness (mm)
    Laird Tgon™ 805 Laird Tgon™ 805 3 None Flexible graphite Pewter Laird 85 5 0.42 0.13
    Laird Tgon™ 810 Laird Tgon™ 810 3 None Flexible graphite Pewter Laird 85 5 0.66 0.25
    Laird Tgon™ 820 Laird Tgon™ 820 3 None Flexible graphite Pewter Laird 85 5 1.07 0.51

  • Thermal management in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our thermal management products. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

  • Our capabilities

    Utilising the latest converting technologies, we can customise conductive materials to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.

    • Die-cutting
      Die-cutting
      We use a range of die-cutting equipment to create your bespoke adhesive components...
    • Slitting
      Slitting
      The cutting of large rolls of material to non-standard widths and lengths...
    • Laser cutting
      Laser cutting
      For cutting small, complicated geometries or features...
    • Guillotining
      Guillotining
      For laminating and sheeting to custom sizes...
    • Laminating
      Laminating
      Laminate materials fully or in selective areas, for a bespoke material construction...
    • Bespoke presentations
      Bespoke presentations
      For an efficient design that aids quick and accurate assembly...
    • X/Y axis plotter
      X/Y axis plotter
      For producing prototypes and small batch runs...
    • Rapid prototyping
      Rapid prototyping
      To test and demonstrate products in the early stages of design...
    • Clean room manufacturing
      Clean room manufacturing
      For a controlled manufacturing environment...
    • Automation solutions
      Automation solutions
      Reduce costs and enhance quality with automated pick and place equipment...
    • R&D
      R&D
      Assistance in developing the most effective part in form, function and presentation...
    • Computer Aided Design
      Computer Aided Design
      For accurate and optimum component design...
    • Contract converting
      Contract converting
      We can customise your material into bespoke shapes and combine it with complimentary products...
    • Part tolerances
      Part tolerances
      View our part tolerance standard values and talk to us about your requirements
