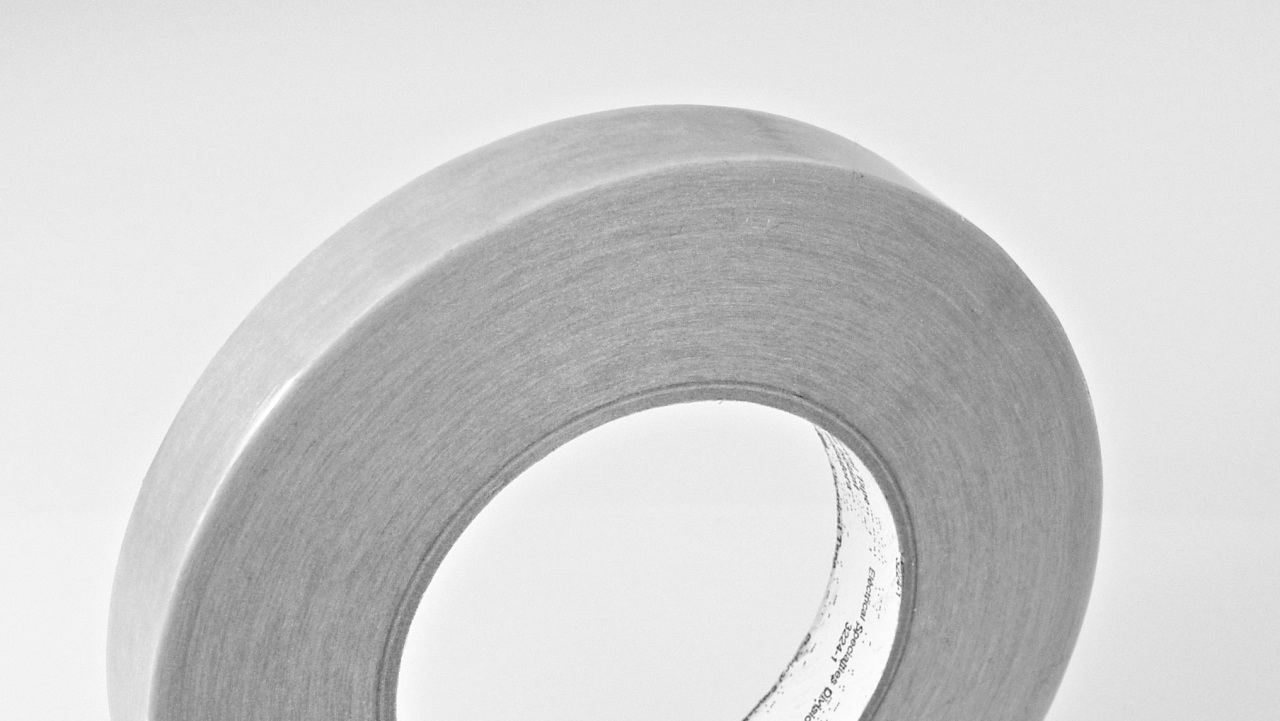

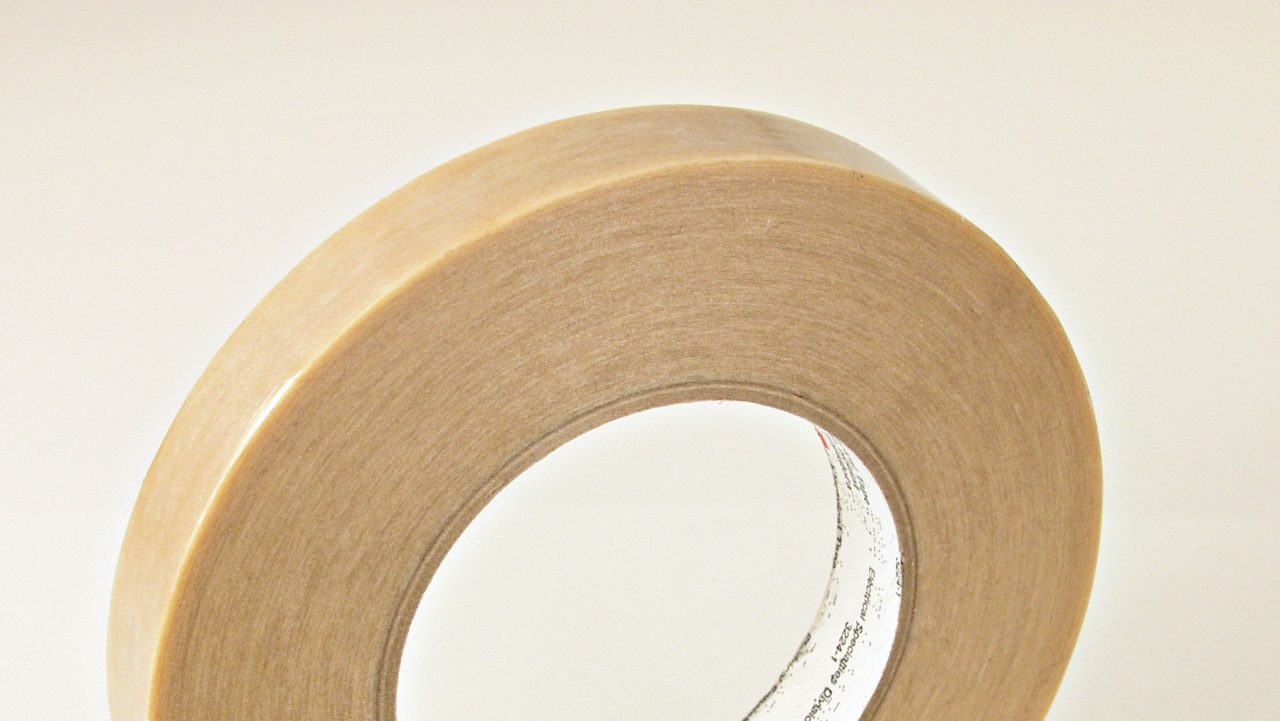

Composite film insulating tape
-
About composite film tape
Composite film tape combines the high dielectric strength and edge-tear resistance of polyester film and nonwoven polyester for a conformable product with excellent puncture resistance and electrical properties.
Composite insulating films are excellent for general purpose insulation and are suggested for use in stick-wound coils/transformers and in bobbin-wound coils for banding, anchoring and insulating. Other applications include protecting start wires, leads, terminal strips, insulation paper, end turns and connections in motors and transformers.
Utilising our range of converting capabilities we can offer composite film insulating tapes in custom width and length rolls or in custom shapes and final presentations.
Composite film tape characteristics:
- Available with an aggressive rubber resin or solvent-resistant acrylic adhesive
- High dielectric strength
- Available in a range of thicknesses
- Puncture resistance
Other products in our electrical insulation range:
- Vinyl tapes
- Polyimide tapes
- Glass cloth tapes
- Acetate cloth tapes
- Polyester tapes
- Filament reinforced tapes
- Paper tapes
- Epoxy tapes
- Antistatic tapes
- PTFE films
- Self amalgamating tapes
- Non-adhesive materials
-
Search composite film tape
Browse through our full range of composite film insulating tapes below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.
Select or remove columns to displaySelect or remove columns to display- Adhesive
- Carrier
- Colour
- Thickness (mm)
- Max. short temp (˚C)
- Insulation resistance (MΩ)
- Elongation (%)
- Electrostatic corrosion
- Adhesion to steel (N/cm)
- Tensile strength (N/cm²)
- Manufacturer / SOS
Filter ByFilter By-
Thickness range (mm)
-
Temp. range (˚C)
-
Adhesive
-
Carrier
-
Colour
-
Insulation resistance (MΩ)
-
Electrostatic corrosion
-
Manufacturer / SOS
-
Elongation range (%)
-
Adhesion to steel range (N/cm)
-
Tensile strength range (N/cm²)
Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.
Title Stock status Adhesion to steel (N/cm) Adhesive Carrier Colour Electrostatic corrosion Elongation (%) Insulation resistance (MΩ) Manufacturer / SOS Max. short temp (˚C) Tensile strength (N/cm²) Thickness (mm)
3M™ 44 electrical tape 2 7.1 Rubber Polyester White 1 50 >1x10⁶ 3M™ 70 0.14
3M™ 44T 3 8.7 Rubber Polyester White 1 30 >1x10⁶ 3M™ 170 0.42 -
Tape in action
Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of a roll of tape! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.
-
Customising your tape
Utilising the latest converting technologies, we can customise your adhesive material to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your tape offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
-
