  • Insulating PTFE adhesive tape

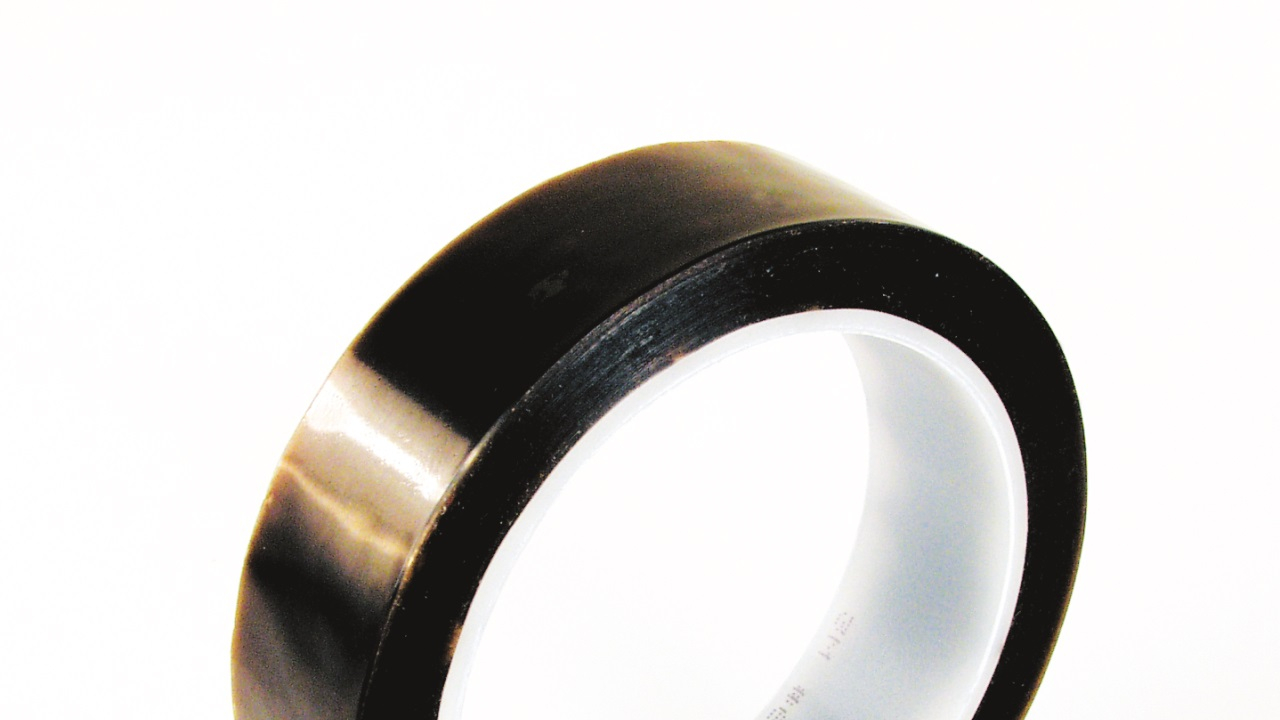

    PTFE adhesive tape is thin, extremely resistant to chemicals and has a high arc resistance. They are free of carbonising materials and are great for non-stick applications. PTFE adhesive tape is used in applications requiring consistent performance and minimum shrinkage across a wide range of temperatures.

    They perform consistently over a broad temperature range (180°C/356°F), for use on high temperature coils, capacitor and wire harnesses. Utilising our range of converting capabilities we can offer PTFE film in custom width and length rolls or in custom shapes and final presentations.

    PTFE adhesive tape characteristics:

    • Printable
    • High dielectric and breaking strength
    • UL510 Flame retardant
    • Available in a range of thicknesses
    • Available with a solvent resistant acrylic or high temperature silicone adhesive

    Other products in our electrical tapes range:

  • Search PTFE adhesive tapes

    Browse through our range of PTFE adhesive tapes below for more detailed information and product data sheets. For more information on PTFE film, please contact us

    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Max. short temp (˚C)
    • Insulation resistance (MΩ)
    • Elongation (%)
    • Electrostatic corrosion
    • Adhesion to steel (N/cm)
    • Tensile strength (N/cm²)
    • Manufacturer / SOS
    Filter By
    Filter By
    • Thickness range (mm)

    • Temp. range (˚C)

    • Adhesive

    • Carrier

    • Colour

    • Insulation resistance (MΩ)

    • Electrostatic corrosion

    • Manufacturer / SOS

    • Elongation range (%)

    • Adhesion to steel range (N/cm)

    • Tensile strength range (N/cm²)

    Reset Filters

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Adhesion to steel (N/cm) Adhesive Carrier Colour Electrostatic corrosion Elongation (%) Insulation resistance (MΩ) Manufacturer / SOS Max. short temp (˚C) Tensile strength (N/cm²) Thickness (mm)
    3M™ 60 PTFE film electrical tape 3M™ 60 PTFE film electrical tape 1 3.2 Silicone PTFE Brown 1 200 >1x10⁶ 3M™ 35 0.1
  • Tape in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of a roll of PTFE tape! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

  • Customising your adhesive tape

    Utilising the latest converting technologies, we can customise your PTFE adhesive tape to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your tape offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
