The trend for smaller and more powerful electronics leads to increasingly complex thermal conductivity challenges for systems designers. Using thermal interface materials (TIMs), the heat from hot components can be transferred to a cold surface or cooling hardware by means of low thermal resistance and high thermal conductivity combinations.
A variety of technologies and constructions ensure the most efficient thermal conductivity solution is available, whatever your thermal conductivity needs. Browse the different types of thermal interface material below, including tape, gap pad, phase change and electrically conductive thermal interface materials. Â
Browse thermal interface materials below for more detailed information and product data sheets. For more information, please contact us.
Thickness range (mm)
Temp. range (ËšC)
Thermal cond. range (W/m-K)
Dielectric strength (kV/mm)
Adhesive
Carrier
Colour
Max width (cm)
Max length (m)
Stock status
Manufacturer / SOS
Thermal imp. range (˚C-cm²/W)
Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.
Title | Stock status | Adhesive | Carrier | Colour | Dielectric strength (kV/mm) | Manufacturer / SOS | Max length (m) | Max. short temp (˚C) | Max width (cm) | Shore Hardness (00) | Thermal conductivity (W/m-K) | Thermal impedance (˚C-cm²/W) | Thickness (mm) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3Mâ„¢ TCG-2031 | 3 | None | Brown | 1-10 | 3Mâ„¢ | 4.1 | 0.81 | |||||||
3M™ 5514-0.2 | 3 | None | Filled silicone polymer‎ | Grey | 11-20 | 3M™ | 58 | 1.6 | 1.2 | 0.2 | ||||
3M™ 5514-0.25 | 3 | None | Filled silicone polymer‎ | Grey | 11-20 | 3M™ | 55 | 1.6 | 1.5 | 0.25 | ||||
3Mâ„¢ 5570-1.5 | 3 | None | Filled acrylic polymer | Ivory | 11-20 | 3Mâ„¢ | 50 | 1.3 | 10.9 | 1.5 | ||||
3M™ 5595-2.0 | 3 | None | Filled silicone polymer‎ | Grey | 11-20 | 3M™ | 50-60 | 1.6 | 14.3 | 2 | ||||
3Mâ„¢ 9885 | 3 | Acrylic | Filled acrylic polymer | Grey | 21-30 | 3Mâ„¢ | N/A | 0.6 | 2.1 | 0.13 | ||||
Laird Tpcmâ„¢ 583 | 3 | None | Non-reinforced film | Grey | Laird | 3.8 | 0.013 | 0.08 | ||||||
3M™ 5516 | 1 | None | Filled silicone polymer‎ | Grey | 11-20 | 3M™ | 50 | 3.1 | 3.4 | 1 | ||||
Laird Tpcmâ„¢ 585 | 3 | None | Non-reinforced film | Grey | Laird | 3.8 | 0.013 | 0.13 | ||||||
3Mâ„¢ 5590H-1.0 | 3 | None | Filled acrylic polymer | Light grey | 31-40 | 3Mâ„¢ | 60 | 3 | 4.5 | 1 | ||||
Laird Tpcmâ„¢ 588 | 3 | None | Non-reinforced film | Grey | Laird | 3.8 | 0.013 | 0.2 | ||||||
3Mâ„¢ 8810 | 1 | Acrylic | Filled acrylic polymer | White | 21-30 | 3Mâ„¢ | N/A | 0.6 | 5.7 | 0.25 | ||||
Laird Tpcmâ„¢ 5810 | 3 | None | Non-reinforced film | Grey | Laird | 3.8 | 0.013 | 0.25 | ||||||
3Mâ„¢ 5590H-1.5 | 3 | None | Filled acrylic polymer | Light grey | 31-40 | 3Mâ„¢ | 60 | 3 | 6.1 | 1.5 | ||||
Laird Tpcmâ„¢ 5816 | 3 | None | Non-reinforced film | Grey | Laird | 3.8 | 0.013 | 0.41 | ||||||
3Mâ„¢ 8815 | 2 | Acrylic | Filled acrylic polymer | White | 21-30 | 3Mâ„¢ | N/A | 0.6 | 7.6 | 0.38 | ||||
Laird Tgonâ„¢ 805 | 3 | None | Flexible graphite | Pewter | Laird | 85 | 5 | 0.42 | 0.13 | |||||
3Mâ„¢ 9882 | 3 | Acrylic | Filled acrylic polymer | Grey | 1-10 | 3Mâ„¢ | N/A | 0.6 | 9.7 | 0.05 | ||||
Laird Tgonâ„¢ 810 | 3 | None | Flexible graphite | Pewter | Laird | 85 | 5 | 0.66 | 0.25 | |||||
3Mâ„¢ 5589H-1.5 | 3 | None | Filled acrylic polymer | Light grey | 21-30 | 3Mâ„¢ | 50 | 2 | No data | 1.5 | ||||
Laird Tgonâ„¢ 820 | 3 | None | Flexible graphite | Pewter | Laird | 85 | 5 | 1.07 | 0.51 | |||||

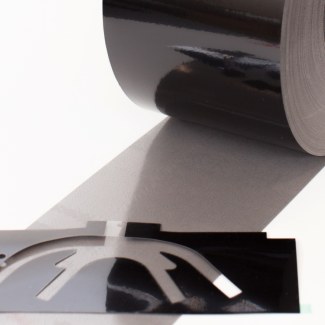

HeatSORBâ„¢ HA-CP-43030-TS8 | 3 | Acrylic | PU | Black | 21-30 | Rogers | 91.4 | 137.2 | No data | 0.14 | No data | 0.3 | ||
3Mâ„¢ 8805 | 1 | Acrylic | Filled acrylic polymer | White | 21-30 | 3Mâ„¢ | N/A | 0.6 | 3.1 | 0.13 | ||||
Laird Tgardâ„¢ 400 | 3 | None | Fiberglass | Grey | Laird | 90 | No data | 4.59 | 0.23 |
Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our thermal interface materials. Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

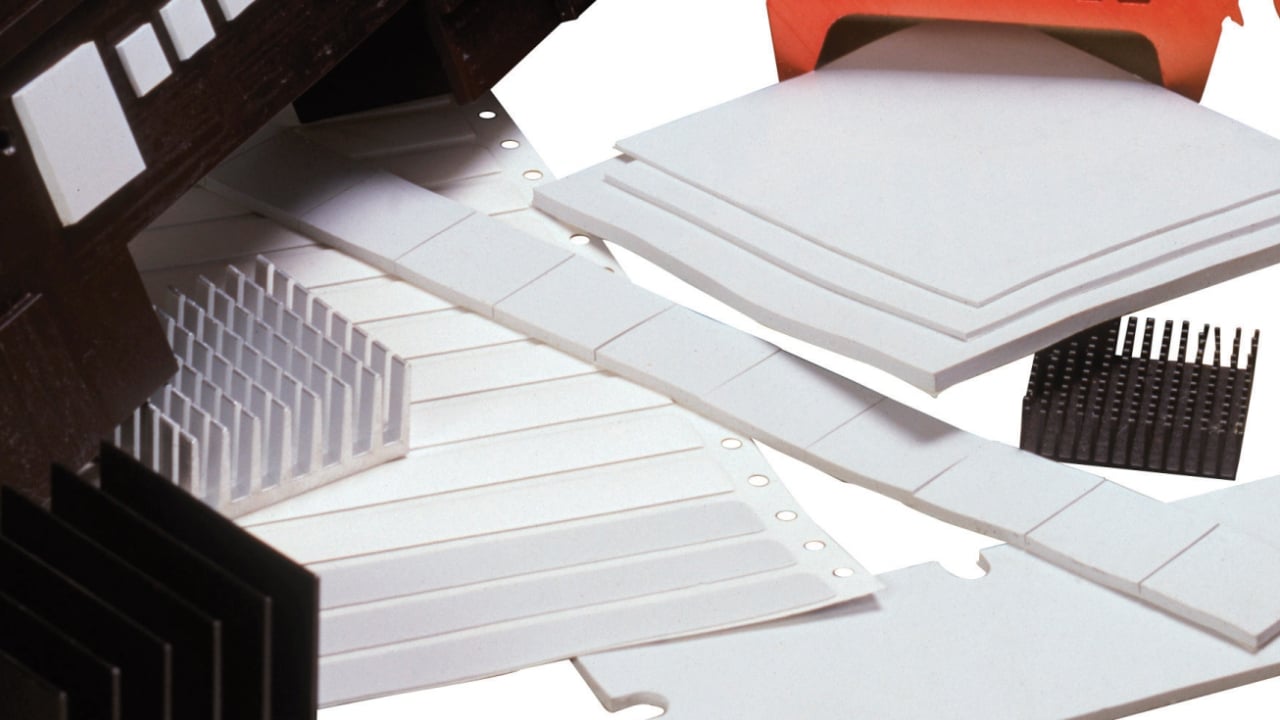

Utilising the latest converting technologies, we can customise your material to create convenient and easy to use components. Customising your material offers a number of benefits, including cost savings and enhanced product design.Â
To learn more about our thermal interface materials and their uses, browse through our range of interesting and relevant videos, news and other media.

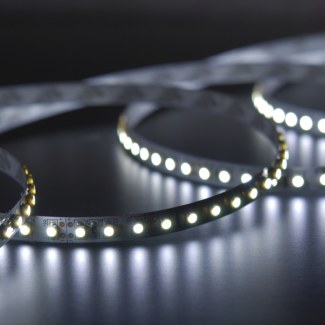

3M thermal interface materials provide efficient thermal transfer for long-term reliability and performance optimisation in applications using high brightness LEDs. 3M thermal interface materials have a proven track record of durability and high thermal performance in a variety of environmental conditions to meet the demanding needs of applications today and in the future.Â
This range of high adhesion thin tapes offers efficient thermal transfer for a wide range of applications requiring a thermal management solution: bonding heat sinks, heat spreaders and other cooling devices to IC packages, power transistors, and other heat generating components.

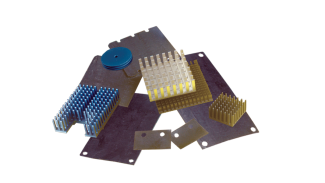

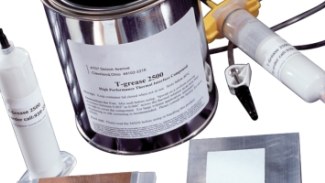

As an industry leader in high-performance, cost-effective Thermal Interface Materials (TIMs) and technologies, Laird designs and manufactures thermal products; including gap fillers and putties, phase change materials, thermal grease and thermally-conductive insulator materials that meet the demands of any application.
Tesa demonstrates a number of die-cut tape solutions for automotive bonding applications. Learn more about automotive applications here or browse...
View a range of automated assembly solutions using AccuPlace automated equipment. Â
Learn more about AccuPlace solutions here.Â
Learn about the thermal management materials available from Parafix.
Browse our range of thermal management products here.
