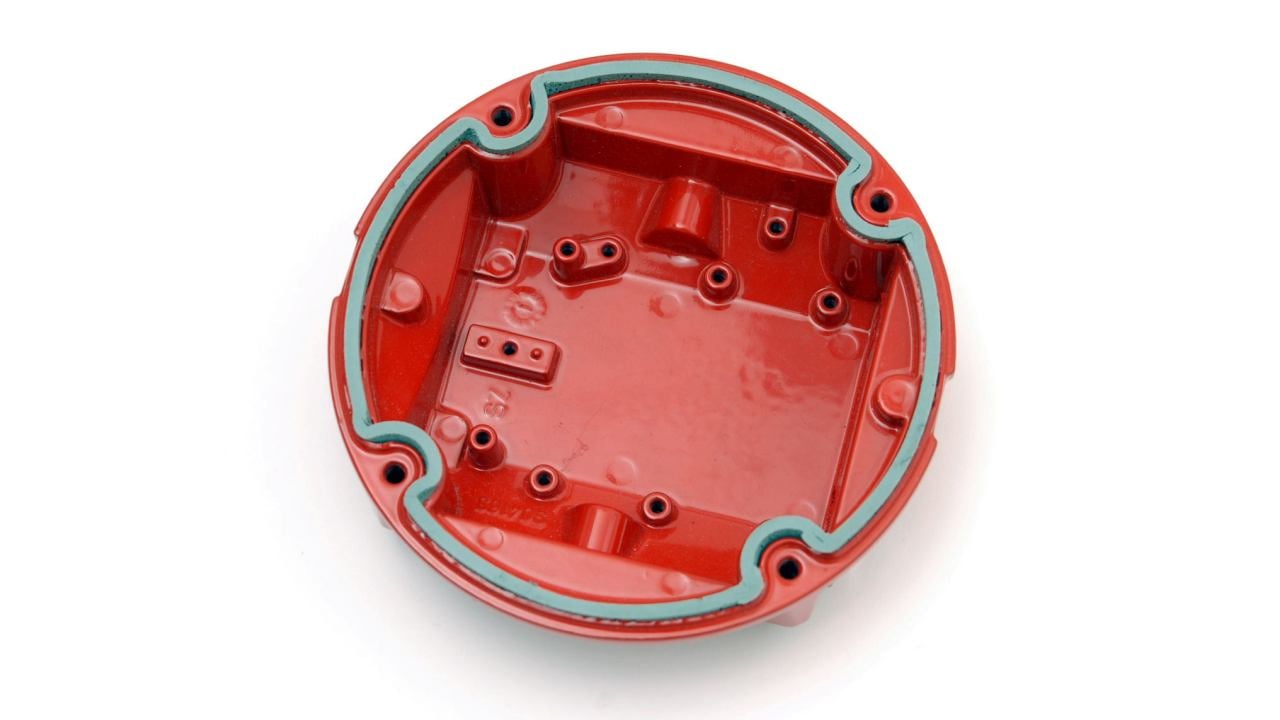

  • Silicone foam gaskets and seals custom made to your requirements

    Silicone foam is an extremely resilient material that can perform in high pressure applications and at high temperatures. We supply closed cell silicone foam gaskets and seals using the highest quality materials, including Roger’s high performance Bisco silicones, commonly used for gaskets, seals, heat shields, cushions and insulation for a variety of applications.

    Utilising our range of converting capabilities, we can laminate your silicone foam with double sided adhesives and convert the bespoke material construction into custom shapes, sizes and final presentations suited to your unique requirements. We also offer a range of silicone rubbers.

    Silicone foam gaskets and seals offer:

    • Superior flame resistance
    • UV and ozone resistance
    • Extremely resilient to mechanical fatigue
    • Low flame, smoke and toxicity upon combustion
    • Excellent performance at extreme temperatures
    • Superior resistance to compression set and creep
    • Meets the most stringent UL flame ratings

    Our silicone foam applications include:

    • Acoustics barriers
    • Environmental seals
    • Outdoor electrical gaskets
    • EMI/RFI shielding gaskets
    • Battery cushions
    • Automotive heat shields
    • HID lighting shields

  • Search silicone foam and seal products

    Browse through our full range of silicone foams below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.

    Select or remove columns to display
    Select or remove columns to display
    • Adhesive
    • Carrier
    • Colour
    • Thickness (mm)
    • Min. temp (˚C)
    • Max. short temp (˚C)
    • Stock status
    • Manufacturer / SOS
    • Density (kg/m³)
    • Shore Hardness (00)
    • Compression set % max - 23˚C
    • Compression Deflection 25% (kPa)
    • D/S or S/S
    • Breathable
    • Conformability
    • Fluid resist backing
    • Hypoallergenic
    • Sterilisation method
    • MVTR (gms/m2 /24 hrs)
    • Max width (cm)
    • Max length (m)
    Filter By
    Filter By

    • Thickness range (mm)

    • Temp. range (˚C)

    • Density range (kg/m³)

    • Adhesive

    • Carrier

    • Colour

    • Stock status

    • Manufacturer / SOS

    • Compression set % max - 23˚C

    • Comp. Deflection Range 25% (kPa)

    • Shore hardness range (00)

    • D/S or S/S

    • Breathable

    • Conformability

    • Fluid resist backing

    • Hypoallergenic

    • Sterilisation method

    • MVTR (gms/m2 /24 hrs)

    • Max width (cm)

    • Max length (m)

    Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.

    Title Stock status Adhesive Breathable Carrier Colour Compression Deflection 25% (kPa) Compression set % max - 23˚C Conformability Density (kg/m³) D/S or S/S Fluid resist backing Hypoallergenic Manufacturer / SOS Max length (m) Max. short temp (˚C) Max width (cm) Min. temp (˚C) MVTR (gms/m2 /24 hrs) Shore Hardness (00) Sterilisation method Thickness (mm)
    Rogers HT-800-4.76 Rogers HT-800-4.76 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 4.76
    Rogers HT-800-6.35 Rogers HT-800-6.35 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 6.35
    Rogers HT-800-9.53 Rogers HT-800-9.53 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 9.53
    Rogers HT-800-12.7 Rogers HT-800-12.7 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 12.7
    Rogers HT-820-0.8 Rogers HT-820-0.8 3 None Silicone foam Grey 110 No data 384 Rogers -55 N/A 0.8
    Rogers HT-870-1.57 Rogers HT-870-1.57 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 1.57
    Rogers HT-820-1.57 Rogers HT-820-1.57 3 None Silicone foam Grey 110 No data 384 Rogers -55 N/A 1.57
    Rogers HT-870-2.39 Rogers HT-870-2.39 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 2.39
    Rogers HT-820-2.39 Rogers HT-820-2.39 3 None Silicone foam Grey 110 No data 384 Rogers -55 N/A 2.39
    Rogers HT-870-3.18 Rogers HT-870-3.18 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 3.18
    Rogers HT-820-4.76 Rogers HT-820-4.76 3 None Silicone foam Grey 110 No data 384 Rogers -55 N/A 4.76
    Rogers HT-870-4.76 Rogers HT-870-4.76 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 4.76
    Rogers HT-820-6.35 Rogers HT-820-6.35 3 None Silicone foam Grey 110 No data 384 Rogers -55 N/A 6.35
    Rogers HT-870-6.35 Rogers HT-870-6.35 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 6.35
    Rogers HT-840-1.57 Rogers HT-840-1.57 3 None Silicone foam Grey 152 No data 432 Rogers -55 N/A 1.57
    Rogers HT-870-9.53 Rogers HT-870-9.53 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 9.53
    Rogers HT-840-2.39 Rogers HT-840-2.39 3 None Silicone foam Grey 152 No data 432 Rogers -55 N/A 2.39
    Rogers HT-870-12.70 Rogers HT-870-12.70 3 None Silicone foam Black, red 28 No data 240 Rogers -55 N/A 12.7
    Rogers HT-840-3.18 Rogers HT-840-3.18 3 None Silicone foam Grey 152 No data 432 Rogers -55 N/A 3.18
    Rogers HT-800-0.8 Rogers HT-800-0.8 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 0.8
    Rogers HT-840-6.35 Rogers HT-840-6.35 3 None Silicone foam Grey 152 No data 432 Rogers -55 N/A 6.35
    Rogers HT-800-1.57 Rogers HT-800-1.57 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 1.57
    Rogers BF-1000 Rogers BF-1000 2 None Silicone foam Black 20.7 No data 208 Rogers -55 N/A 3.18
    Rogers HT-800-2.39 Rogers HT-800-2.39 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 2.39
    Rogers HT-800-3.18 Rogers HT-800-3.18 3 None Silicone foam Grey, black, red 62 No data 352 Rogers -55 N/A 3.18

  • Foam and rubber in action

    Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of our silicone foam gaskets and seals! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.

    Airbag gasket
    Airbag gasket
    One of the largest Tier1 automotive suppliers required a gas cartridge gasket for the assembly of airbag inflators...

  • Customise your materials

    Utilising the latest converting technologies, we can customise your silicone foam to create non-standard roll widths and lengths, or convenient and easy to handle components such as silicone foam gaskets and seals. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.

    • Die-cutting
      Die-cutting
      We use a range of die-cutting equipment to create your bespoke adhesive components...
    • Slitting
      Slitting
      The cutting of large rolls of material to non-standard widths and lengths...
    • Laser cutting
      Laser cutting
      For cutting small, complicated geometries or features...
    • Guillotining
      Guillotining
      For laminating and sheeting to custom sizes...
    • Laminating
      Laminating
      Laminate materials fully or in selective areas, for a bespoke material construction...
    • Bespoke presentations
      Bespoke presentations
      For an efficient design that aids quick and accurate assembly...
    • X/Y axis plotter
      X/Y axis plotter
      For producing prototypes and small batch runs...
    • Rapid prototyping
      Rapid prototyping
      To test and demonstrate products in the early stages of design...
    • Clean room manufacturing
      Clean room manufacturing
      For a controlled manufacturing environment...
    • Automation solutions
      Automation solutions
      Reduce costs and enhance quality with automated pick and place equipment...
    • R&D
      R&D
      Assistance in developing the most effective part in form, function and presentation...
    • Computer Aided Design
      Computer Aided Design
      For accurate and optimum component design...
    • Contract converting
      Contract converting
      We can customise your material into bespoke shapes and combine it with complimentary products...
    • Part tolerances
      Part tolerances
      View our part tolerance standard values and talk to us about your requirements
