Vinyl insulating tape
-
About vinyl electrical tape
Vinyl electrical tape has a flexible backing, excellent electrical insulating properties and high dielectric strength. The aggressive rubber adhesive of vinyl tape performs well over a range of temperatures. Electrical tapes also they offer resistance to moisture, UV, abrasion, corrosion, alkalies and acids.
Vinyl electrical tapes are used for primary insulation up to 600 volts, including wire harnessing, degaussing coils and high-voltage cables. They are also used in marking applications, ensuring fast identification of electrical phases, leads, piping and safety areas. Utilising our range of converting capabilities we can offer vinyl insulating tapes in custom width and length rolls or in custom shapes and final presentations.
Vinyl tape characteristics:
- Fade resistant
- Excellent adhesion and cold weather performance
- Available in a range of colours for colour coding applications
- Available in a range of thicknesses
- UL510 flame retardant
- Excellent mechanical strength and abrasion resistance
Other products in our electrical tape range:
- Polyimide electrical tape
- Glass cloth electrical tape
- Acetate cloth electrical tape
- Polyester electrical tape
- Filament reinforced electrical tape
- Paper electrical tape
- Epoxy electrical tape
- Antistatic electrical tape
- PTFE electrical tape
- Composite electrical tape
- Self-amalgamating electrical tape
- Non-adhesive materials
-
Search vinyl electrical tapes
Browse through our range of vinyl electrical tapes below, including 33 Scotch vinyl black electrical tape and 33+ Scotch Super vinyl black electrical tape. If you cannot find the product you require, please contact us.
Select or remove columns to displaySelect or remove columns to display- Adhesive
- Carrier
- Colour
- Thickness (mm)
- Max. short temp (˚C)
- Insulation resistance (MΩ)
- Elongation (%)
- Electrostatic corrosion
- Adhesion to steel (N/cm)
- Tensile strength (N/cm²)
- Manufacturer / SOS
Filter ByFilter By-
Thickness range (mm)
-
Temp. range (˚C)
-
Adhesive
-
Carrier
-
Colour
-
Insulation resistance (MΩ)
-
Electrostatic corrosion
-
Manufacturer / SOS
-
Elongation range (%)
-
Adhesion to steel range (N/cm)
-
Tensile strength range (N/cm²)
Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.
Title Stock status Adhesion to steel (N/cm) Adhesive Carrier Colour Electrostatic corrosion Elongation (%) Insulation resistance (MΩ) Manufacturer / SOS Max. short temp (˚C) Tensile strength (N/cm²) Thickness (mm)

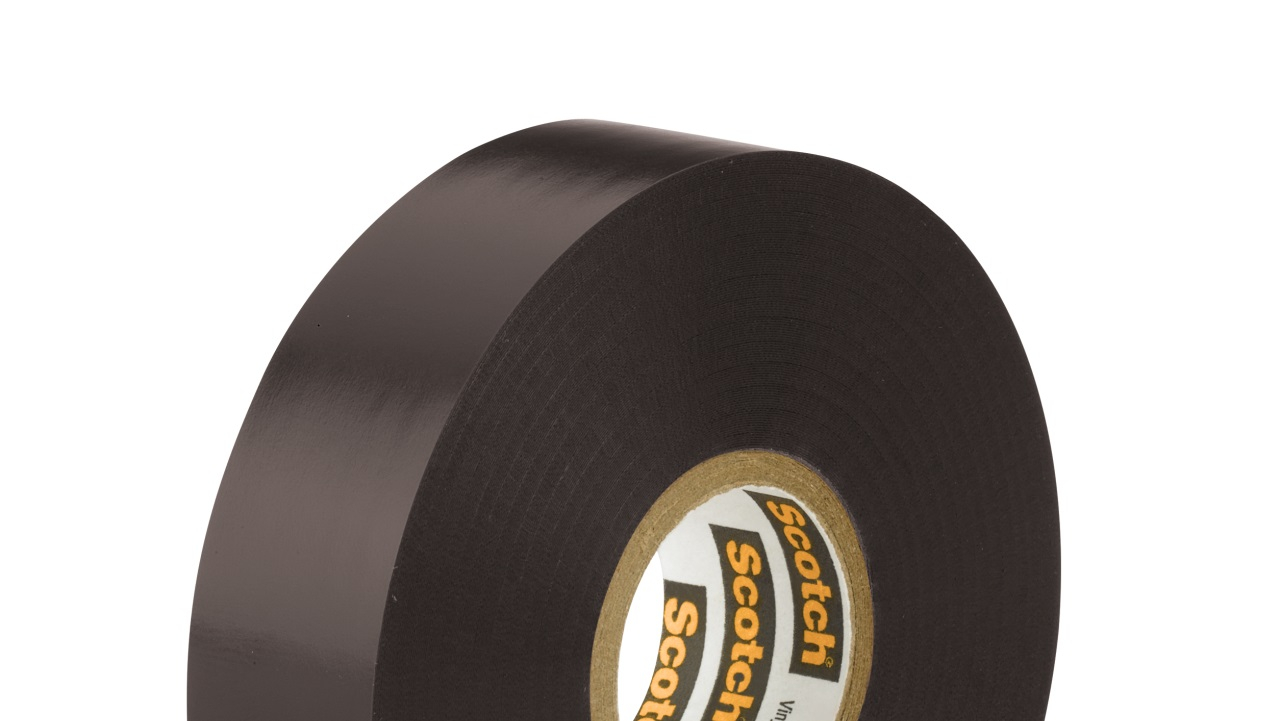

3M™ Scotch® 33 vinyl electrical tape 1 8.3 Rubber PVC Black 0.1 150 >1x10⁶ 3M™ 30 0.18
3M Super 33+ 2 3.1 Rubber PVC Black N/A 250 >1x10⁶ 3M™ 26 0.18 -
Tape in action
Read through our case studies to find relevant, real-life examples of the powerful problem solving capabilities of vinyl electrical tape! Browse all case studies to learn more about custom die-cut components and our tape converting capabilities.
-
Customising your vinyl electrical tape
Utilising the latest converting technologies, we can customise your vinyl electrical tape to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your tape offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
-
