3M™ 1772

Overview for 3M™ 1772

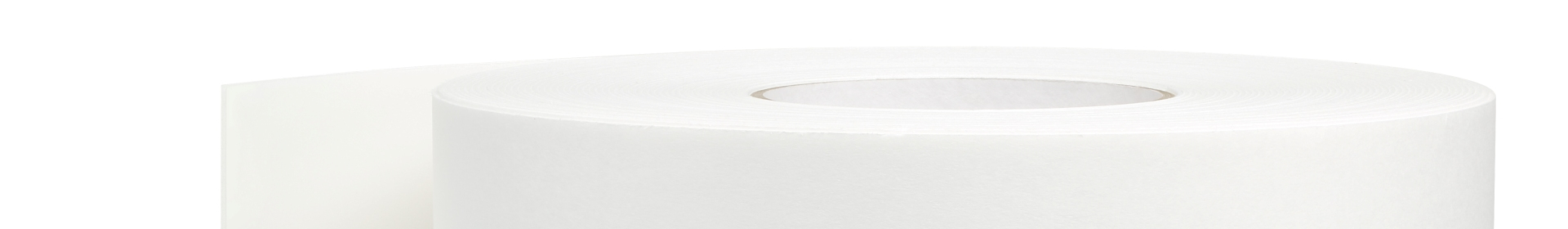

3M™ 1772 is a single sided medical polyethylene foam tape. This is a white, closed cell foam coated with a hypoallergenic acrylic adhesive. It is soft, water resistant and can be sterilised by EtO. Common uses include electrode, device attachment, cushioning and overlay/cover tape applications.

1772 foam tape is available in non-standard slit rolls, sheets and custom shapes.

Download: 3m-1772-single-sided-polyolefin-foam-tape-parafix

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M™ 1772

Adhesive	Acrylic
Carrier	PE foam
Colour	White
Thickness (mm)	1.7
Min. temp (˚C)	No data
Max. short temp (˚C)	No data
Density (kg/m³)	No data
Shore Hardness (00)	No data
Compression set % max - 23˚C	No data
Compression Deflection 25% (kPa)	No data
Manufacturer / SOS	3M™
Elongation (%)	220
Adhesion to steel (N/cm)	No data
Tensile strength (N/cm²)	No data
D/S or S/S	Single sided
Breathable	No
Conformability	Low
Fluid resist backing	Yes
Hypoallergenic	Yes
Sterilisation method	EtO & Gamma
MVTR (gms/m2 /24 hrs)	No data
Max width (cm)	122
Max length (m)	73
