3M™ 5514-0.2

Overview for 3M™ 5514-0.2

3M™ 5514-0.2 is a thermally conductive silicone interface pad. It is a tacky, highly conformable silicone elastomer sheet, designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders and other cooling devices.

It offers high temperature resistance, good thermal conductivity and dielectric properties. 5514-0.2 is UL 94 V-0 rated and has good flexibility with over bending. This product can be used for heat management of electronic devices and joining/stacking parts in electronic components.

5514-0.2 thermally conductive interface pad is available in sheets and custom shapes. For more information, please contact us.

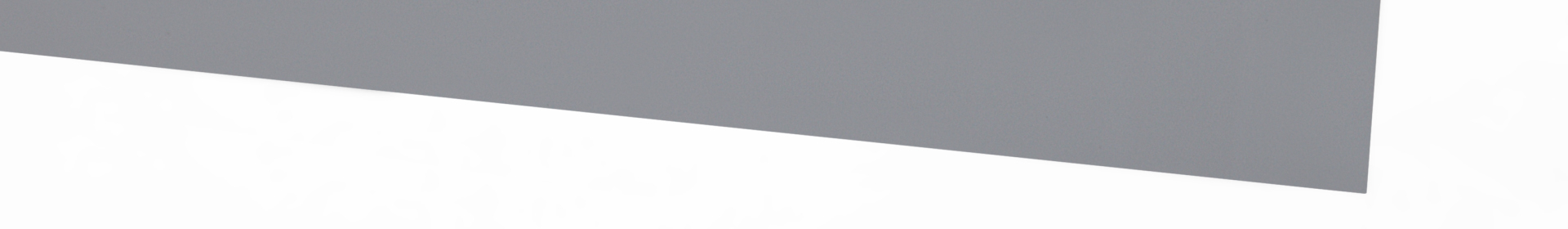

3M™ 5514-0.2

Product features for 3M™ 5514-0.2

Adhesive

None

Carrier

Filled silicone polymer‎

Colour

Grey

Thickness (mm)

0.2

Min. temp (˚C)

No data

Max. short temp (˚C)

No data

Shore Hardness (00)

58

Manufacturer / SOS

3M™

Thermal conductivity (W/m-K)

1.6

Dielectric strength (kV/mm)

14.15

Thermal impedance (˚C-cm²/W)

1.2
