3M™ 851

3M™ 851

Overview for 3M™ 851

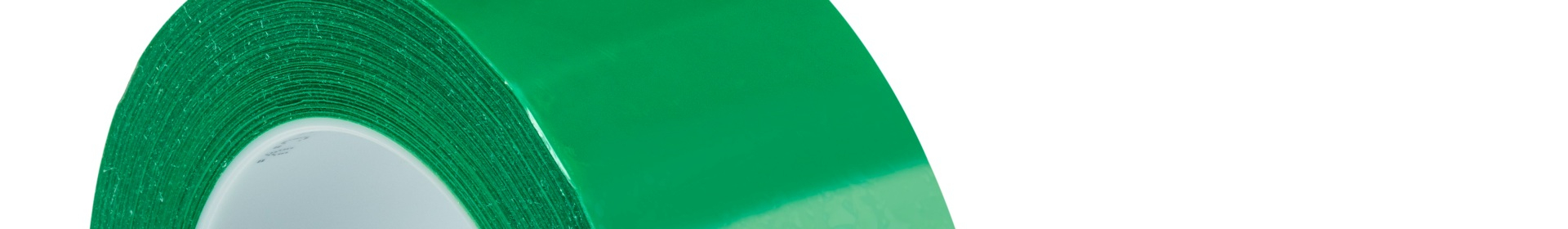

3M™ 851 tape is a polyester circuit plating tape, coated with a special blend silicone/rubber adhesive on one side. It is used in printed circuit board masking during electroplating and comes in a translucent green. 851 tape is available in non-standard slit rolls, sheets and custom shapes.

Download: 3m-851-tape-parafix

Download:

3M™ 851

Product features for 3M™ 851

Adhesive

Silicone & rubber

Carrier

PET

Colour

Translucent green

Thickness (mm)

0.1

Min. temp (˚C)

-50

Max. short temp (˚C)

90

Manufacturer / SOS

3M™

Elongation (%)

124

Adhesion to steel (N/cm)

2.7

Tensile strength (N/cm²)

36.8
