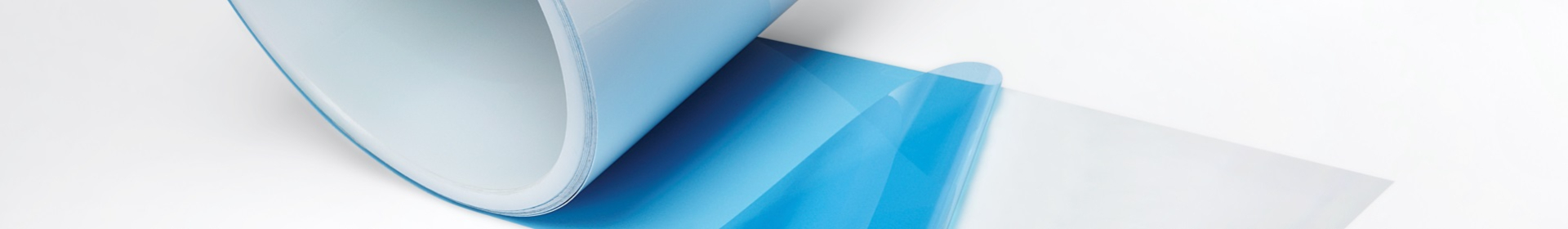

3M™ 8810 is a thermally conductive adhesive transfer tape, designed to provide a preferential heat-transfer path between heat-generating components and heat sinks or other cooling devices (e.g. fans, heat spreaders or heat pipes).
8810 tape offers high mechanical strength, excellent shock performance and improved surface wet-out for rough surface/LSE substrates. It is ideal for thin bonding applications and is available in non-standard slit rolls, sheets or custom shapes.
For more information, please contact us.
Adhesive | Acrylic |
Carrier | Filled acrylic polymer |
Colour | White |
Thickness (mm) | 0.25 |
Max. long temp (˚C) | No data |
Chem resist | No data |
UV resist | No data |
Min. temp (˚C) | No data |
Max. long temp (˚C) | No data |
Max. short temp (˚C) | 100 |
Shore Hardness (00) | N/A |
Manufacturer / SOS | 3M™ |
Thermal conductivity (W/m-K) | 0.6 |
Dielectric strength (kV/mm) | 26 |
Thermal impedance (˚C-cm²/W) | 5.7 |
