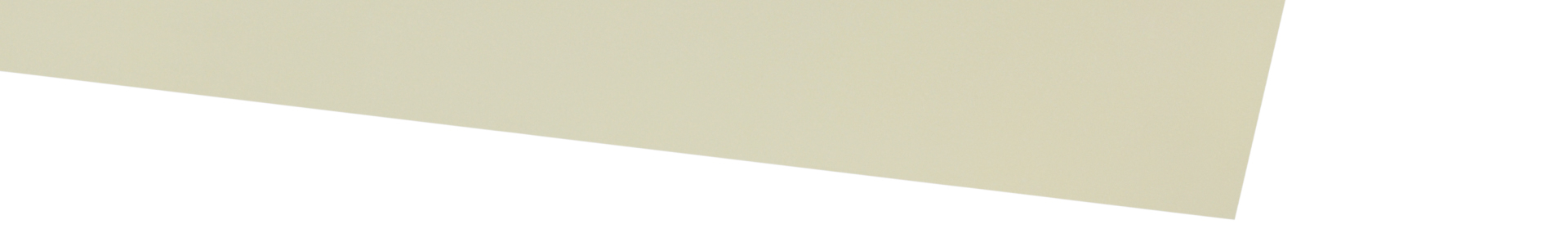

3M™ 8910-0.3 thermally conductive adhesive transfer tape is designed to provide a preferential heat-transfer path between heat generating components and heat sinks or other cooling devices (e.g. fans, heat spreaders or heat pipes). It contains thermally conductive fillers that do not require a heat cure cycle to form an excellent bond to many substrates.
8910 tape has good adhesion performance and has a UL 94 rating of V-2. It is available in non-standard slit rolls, sheets or custom shapes.
For more information, please contact us.
Adhesive | Acrylic |
Carrier | Filled acrylic polymer |
Colour | White |
Thickness (mm) | 0.3 |
Max. long temp (˚C) | No data |
Chem resist | No data |
UV resist | No data |
Stock status | 2 |
Min. temp (˚C) | No data |
Max. long temp (˚C) | No data |
Max. short temp (˚C) | 80 |
Shore Hardness (00) | N/A |
Manufacturer / SOS | 3M™ |
Thermal conductivity (W/m-K) | 0.6 |
Dielectric strength (kV/mm) | 33 |
Thermal impedance (˚C-cm²/W) | 5.1 |
