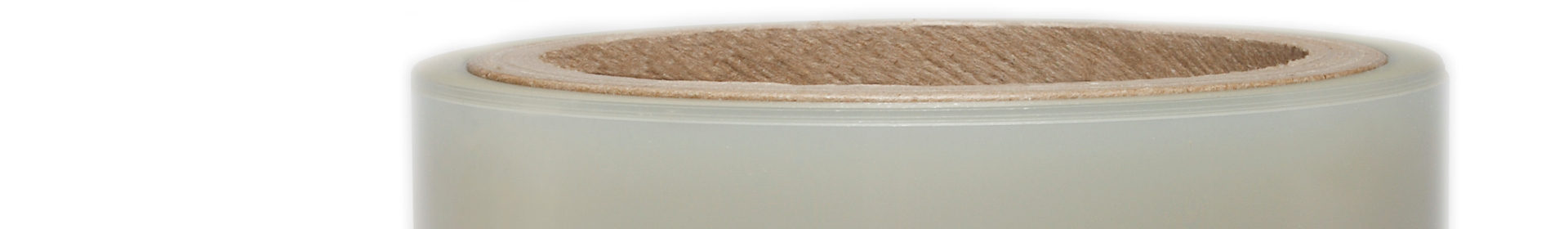

3M™ 9964 is a transparent polyester diagnostic tape, coated on one side with a 3M select diagnostic acrylate adhesive. This bioassay compatible tape is printable and can be sterilised by EtO.
9964 diagnostic tape is used in test strip applications and lab on a chip constructions. It is available in non-standard slit rolls, sheets and custom shapes.
Download: 3m-9964-clear-polyester-tape-parafix
Adhesive |
Acrylic |
Carrier |
PET |
Colour |
Transparent |
Thickness (mm) |
0.06 |
Min. temp (˚C) |
No data |
Max. short temp (˚C) |
No data |
Manufacturer / SOS |
3M™ |
Elongation (%) |
186 |
Adhesion to steel (N/cm) |
No data |
Tensile strength (N/cm²) |
No data |
D/S or S/S |
Single sided |
Breathable |
No |
Conformability |
Medium |
Fluid resist backing |
Yes |
Hypoallergenic |
No |
Sterilisation method |
EtO & Gamma |
MVTR (gms/m2 /24 hrs) |
No data |
Max width (cm) |
122 |
Max length (m) |
320 |
