3M™ CN3190

Overview for 3M™ CN3190

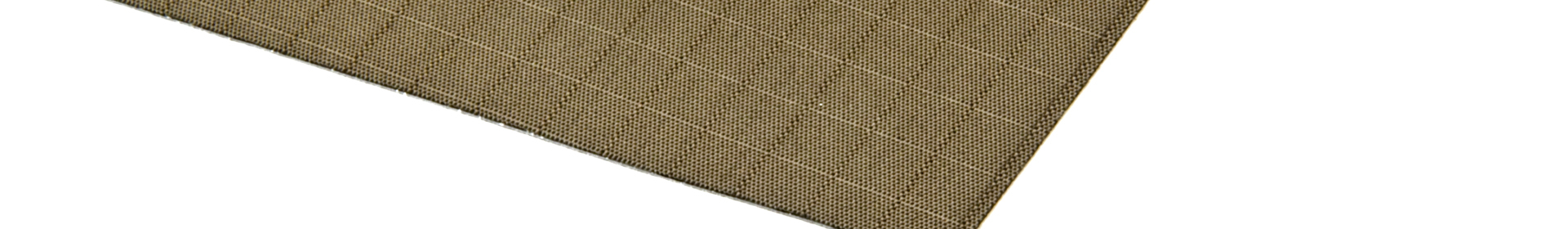

3M™ CN3190 is a PET rip-stop fabric shielding tape, coated with a conductive acrylic adhesive. The nickel on copper-plated polyester fabric backing provides corrosion resistance and good shielding effectiveness, as well as excellent flexibility, conformability and mechanical strength.

This light weight tape is easy to handle and the fabric backing minimises the possibility of finger lacerations. It is used in applications typically served by metal foil shielding tapes such as grounding and EMI shielding equipment, components and shielded rooms.

CN3190 has a UL510 flame rating and is available in non-standard slit rolls, sheets and custom shapes. For more information, please contact us.

Download: 3m-cn3190-nickel-on-copper-coated-polyester-shielding-tape-parafix

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M™ CN3190

Adhesive	Acrylic
Carrier	Nickel on copper-plated PET
Colour	Grey
Thickness (mm)	0.1
Min. temp (˚C)	No data
Max. short temp (˚C)	No data
D/S or S/S	Single sided
Manufacturer / SOS	3M™
Adhesion to steel (N/cm)	900
Tensile strength (N/cm²)	70
Shielding Effectiveness @GHz(dB)	70
Electrical resistance (Ω)	0.05
