AccuPlace 3065

AccuPlace 3065

Overview for AccuPlace 3065

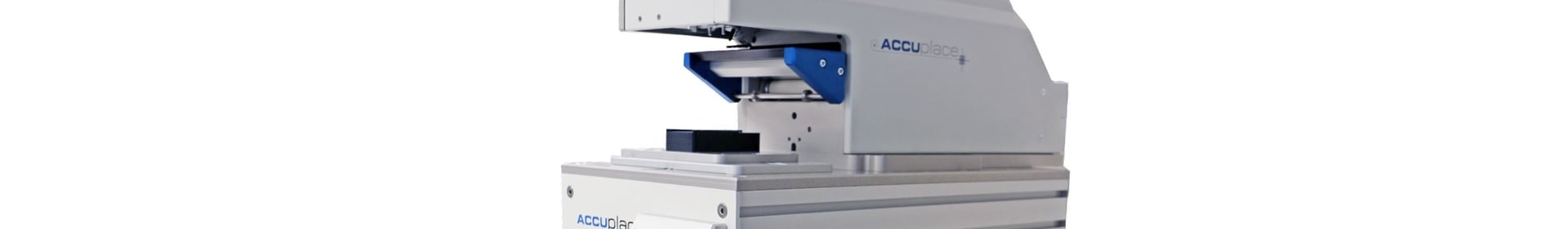

AccuPlace 3065 assembles any self-adhesive component no larger than 76mm x 165mm. The machine is compact and has various options and features to allow for component’s specific requirements. It has full serial control communications and an intuitive interface.

AccuPlace 3065 can be mounted in any direction.

Download: AccuPlace 3065 Parafix

Download:

AccuPlace 3065

Product features for AccuPlace 3065

Accuracy (mm)

±0.05

Max. liner width (mm)

165

Max. component length (mm)

76

Max. component thickness (mm)

6

Electrical interface

2 outputs: ready & clear; 1 input: cycle

Stroke (mm)

127, 203

Mounting orientation

Any
