HeatSORBâ„¢ HA-CP-43030-TS8

HeatSORBâ„¢ HA-CP-43030-TS8

Overview for HeatSORBâ„¢ HA-CP-43030-TS8

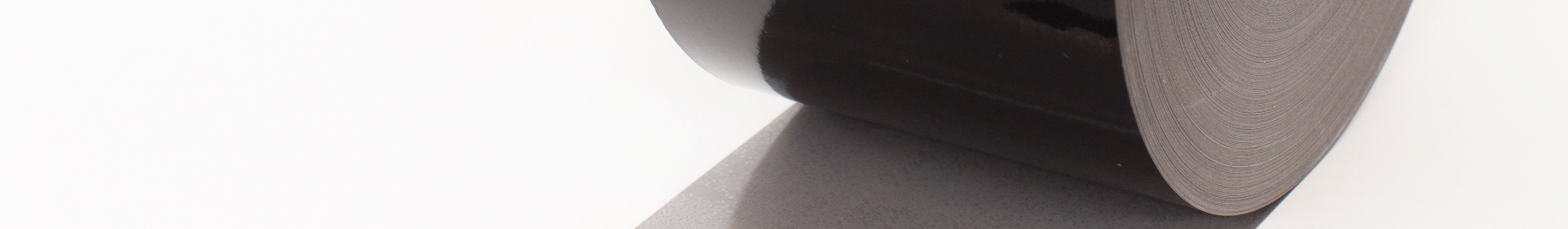

Rogers HeatSORBâ„¢ HA-CP-43030-TS8 is a heat absorbing polyurethane film, coated on both sides with an acrylic adhesive.

It passes UL94-HB and has a heat absorbing temperature of 44°C. HeatSORBâ„¢ material was developed for the portable electronics market, but provides benefit to any application in which high heat of fusion and long-term, reliable thermal management are concerns – especially when real estate is limited.

HeatSORBâ„¢ HA-CP-43030-TS8 is available in custom slit rolls and die-cut shapes.

For more information, please contact us.

Add to wish list View Data Sheet
HeatSORBâ„¢ HA-CP-43030-TS8
Add to Wishlist

Product features for HeatSORBâ„¢ HA-CP-43030-TS8

Adhesive

Acrylic
Carrier

PU
Colour

Black
Thickness (mm)

0.3
Min. temp (ËšC)

N/A
Max. short temp (ËšC)

90
Shore Hardness (00)

No data
Manufacturer / SOS

Rogers
Thermal conductivity (W/m-K)

0.14
Dielectric strength (kV/mm)

20
Thermal impedance (˚C-cm²/W)

No data
Max width (cm)

137.2
Max length (m)

91.4
