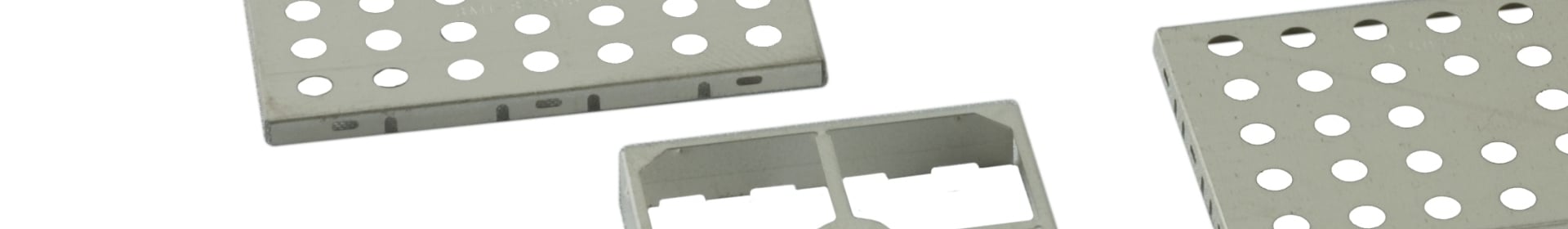

Laird BMI-S-103 is a traditional single piece shield, offering six sides of protection, with the sixth side being the board itself. One piece designs offer economical shielding protection where access to covered components is not necessary. They provide a secure cover, ideal for applications subject to shock and vibration, such as mobile, military vehicles, commercial aircraft and wireless electronics.
This product has a height of 5.08mm, a length of 26.21mm and a width of 26.21mm and can withstand reflow and solder temperature. BMI-S-103 board level shield minimises crosstalk and susceptability without impacting system speed.
It is available in a range of dimensions, in two piece designs and in tape and reel form for automated pick and place application. For more information, please contact us.
Download: laird-board-level-shields-parafix.pdf
Adhesive |
None |
Carrier |
CRS tin |
Colour |
Silver |
Thickness (mm) |
2.54 |
Min. temp (ËšC) |
No data |
Max. short temp (ËšC) |
No data |
Manufacturer / SOS |
Laird |
Shielding Effectiveness @GHz(dB) |
60 |
Electrical resistance (Ω) |
N/A |
