Laird MaxAir™ vent

Overview for Laird MaxAir™ vent

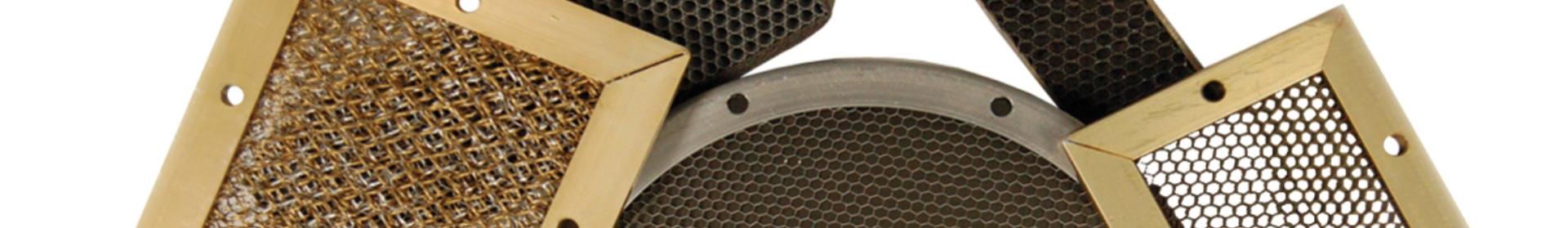

Laird MaxAir™ vent panels consist of a copper plated polycarbonate honeycomb material, which provides a rigid medium eliminating the need for costly frame designs. This frameless design, available in standard thicknesses of 6.35mm and 12.7mm, allows greater airflow through the entire honeycomb surface and ease of installation through its press-to-fit assembly.

The MaxAir™ vent panel provides greater durability and flexibility than traditional aluminium vent panels, providing air flow for component cooling as well as a barrier to reduce RF leakage. Sizes range from small muffin fans on desktops to large room-size facilities. This product is available in a wide range of materials and platings that meet a broad range of shielding effectiveness requirements. Varied mounting configurations and protective grilles for high traffic areas are also available. Common applications for vent panels include telecommunications hardware equipment, fans, military applications, server racks and shielded rooms.

For more information, please contact us.

Download: laird-maxair-vent-panels-parafix

Download:

Laird MaxAir™ vent

Product features for Laird MaxAir™ vent

Adhesive

None

Carrier

Copper-plated polycarbonate

Colour

Copper

Thickness (mm)

6.35

Min. temp (˚C)

N/A

Max. short temp (˚C)

N/A

Manufacturer / SOS

Laird

Shielding Effectiveness @GHz(dB)

115

Electrical resistance (Ω)

N/A
