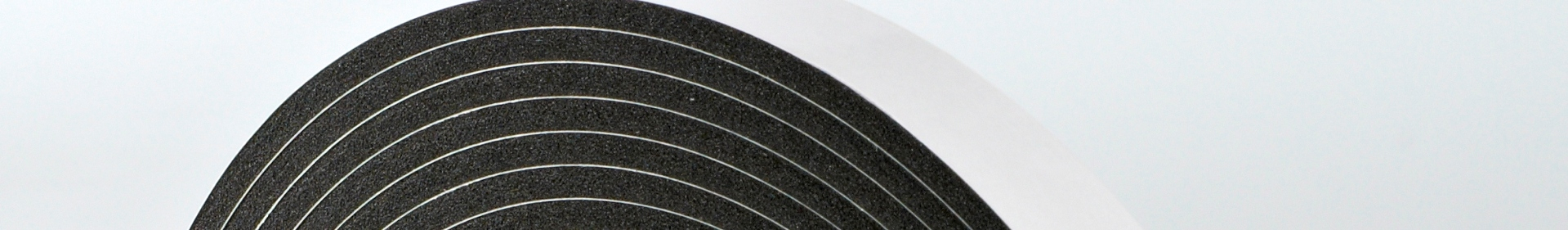

Scapa 3509-1.5 single sided foam tape is a 1.5mm thick, hard, UV resistant PVC foam, coated with an acrylic adhesive. It is designed for high load bearing applications and is ideal for vibration damping and cushioning applications. 3509-1.5 foam tape is available in non-standard slit rolls, sheets and custom shapes.
Adhesive |
Acrylic |
Carrier |
PVC foam |
Colour |
Black |
Thickness (mm) |
1.5 |
Min. temp (ËšC) |
-30 |
Max. short temp (ËšC) |
70 |
Density (kg/m³) |
220 |
Shore Hardness (00) |
50 |
Compression set % max - 23ËšC |
<10 |
Compression Deflection 25% (kPa) |
5 |
Manufacturer / SOS |
Scapa |
Elongation (%) |
180 |
Adhesion to steel (N/cm) |
No data |
Tensile strength (N/cm²) |
66 |
