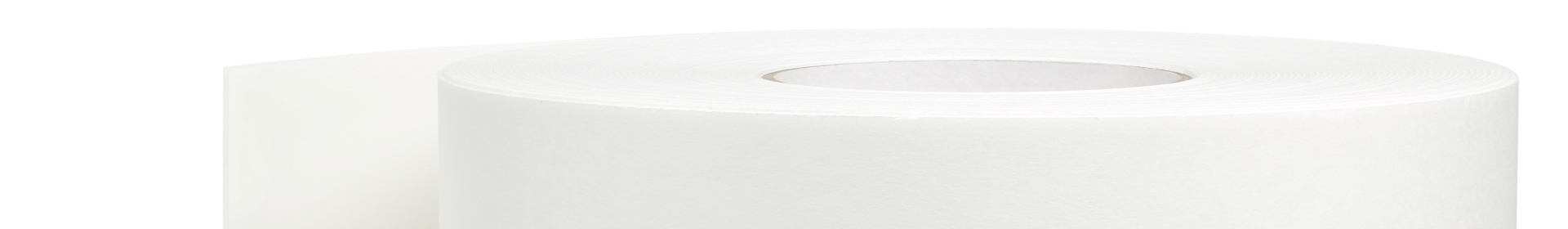

3M™ 1774W is a single sided medical polyethylene foam tape. It is a white, closed cell foam, coated with a hypoallergenic acrylic adhesive.
1774W foam tape is conformable, water resistant and can be sterilised by EtO. Common uses include wound care, temporary tattoos and dressings applications. It is available in non-standard slit rolls, sheets and custom shapes.
Adhesive |
Acrylic |
Carrier |
PE foam |
Colour |
White |
Thickness (mm) |
0.6 |
Min. temp (˚C) |
No data |
Max. short temp (˚C) |
No data |
Density (kg/m³) |
No data |
Shore Hardness (00) |
No data |
Compression set % max - 23˚C |
No data |
Compression Deflection 25% (kPa) |
No data |
Manufacturer / SOS |
3M™ |
Elongation (%) |
300 |
Adhesion to steel (N/cm) |
2.7 |
Tensile strength (N/cm²) |
No data |
D/S or S/S |
Single sided |
Breathable |
No |
Conformability |
High |
Fluid resist backing |
Yes |
Hypoallergenic |
Yes |
Sterilisation method |
EtO & Gamma |
MVTR (gms/m2 /24 hrs) |
No data |
Max width (cm) |
122 |
Max length (m) |
264 |
