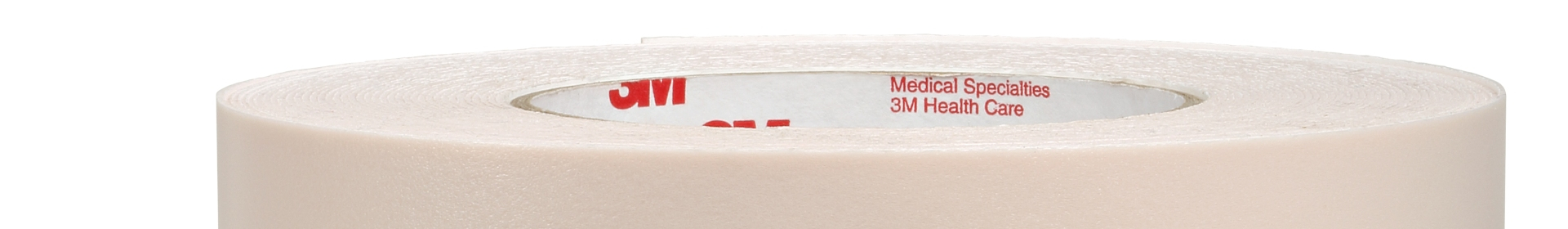

3M™ 9776 is a single sided medical polyethylene foam tape. This is a tan, closed cell foam tape coated with a hypoallergenic acrylic adhesive.
9776 foam tape is soft and water resistant, commonly used in electrode and device attachment, cushioning, overlay/covertape and woundcare dressing applications. It can be sterilised by EtO and is available in non-standard slit rolls, sheets and custom shapes.
Download: 3m-9776-single-sided-foam-tape-parafix
Adhesive |
Acrylic |
Carrier |
PE foam |
Colour |
Tan |
Thickness (mm) |
0.9 |
Min. temp (˚C) |
No data |
Max. short temp (˚C) |
No data |
Density (kg/m³) |
No data |
Shore Hardness (00) |
No data |
Compression set % max - 23˚C |
No data |
Compression Deflection 25% (kPa) |
No data |
Manufacturer / SOS |
3M™ |
Elongation (%) |
250 |
Adhesion to steel (N/cm) |
4 |
Tensile strength (N/cm²) |
No data |
D/S or S/S |
Single sided |
Breathable |
No |
Conformability |
Medium |
Fluid resist backing |
Yes |
Hypoallergenic |
Yes |
Sterilisation method |
EtO & Gamma |
MVTR (gms/m2 /24 hrs) |
No data |
Max width (cm) |
122 |
Max length (m) |
132 |
