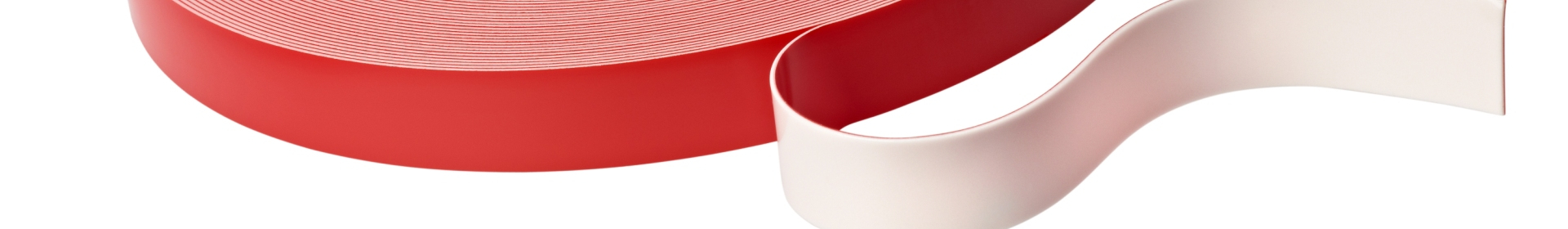

3M™ 4613F VHB™

3M™ 4613F VHB™

Overview for 3M™ 4613F VHB™

3M™ 4613F is a very high bond (VHB™) foamed acrylic tape. This product is a high performance acrylic foam tape which possesses a good balance between shear peel and high tack adhesion. It has been designed to be suitable for a range of bonding applications which require a level of adhesion higher than standard double coated foam tapes, but perhaps lower than higher performance 3M™ VHB™ tapes.

4613F VHB™ tape is available in non-standard slit rolls, sheets and custom shapes.

For more information, please contact us.

Download: 3m-4613f-vhb-tape-parafix

Download:

3M™ 4613F VHB™

Product features for 3M™ 4613F VHB™

Adhesive

Acrylic

Carrier

Foamed acrylic adhesive

Colour

White

Thickness (mm)

1.1

Max. long temp (˚C)

120

Chem resist

5

UV resist

5

Bond to foam, felt, mesh

2

Min. temp (˚C)

-30

Max. long temp (˚C)

120

Max. short temp (˚C)

150

Bond to metal

5

Bond to HSE plastic

4

Bond to LSE plastic

1

Density (kg/m³)

840

Shore Hardness (00)

No data

Compression set % max - 23˚C

No data

Compression Deflection 25% (kPa)

No data

Manufacturer / SOS

3M™
