Overview for 3M™ 8926 0.2

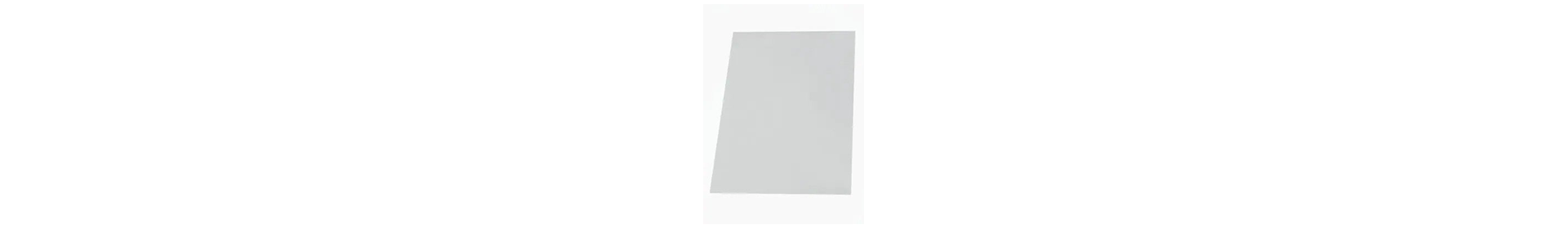

3M™  8926 0.2 thermally conductive interface tape is designed for heat dissipation and heat management in electronic devices. This pressure sensitive adhesive tape is filled with thermally conductive ceramic particles integrated in a PET carrier. The adhesive is a soft acrylic polymer.

8926 is available in non-standard slit rolls, sheets or custom shapes.

For more information, please contact us.

3M™ 8926 0.2

Product features for 3M™ 8926 0.2

Adhesive

Soft acrylic

Carrier

Ceramic particle

Colour

Yellowish white

Thickness (mm)

0.2

Max. long temp (˚C)

No data

Chem resist

No data

UV resist

No data

Min. temp (˚C)

10

Max. long temp (˚C)

No data

Max. short temp (˚C)

No data

Shore Hardness (00)

N/A

Manufacturer / SOS

3M™

Thermal conductivity (W/m-K)

1.5

Dielectric strength (kV/mm)

15

Thermal impedance (˚C-cm²/W)

8.49
