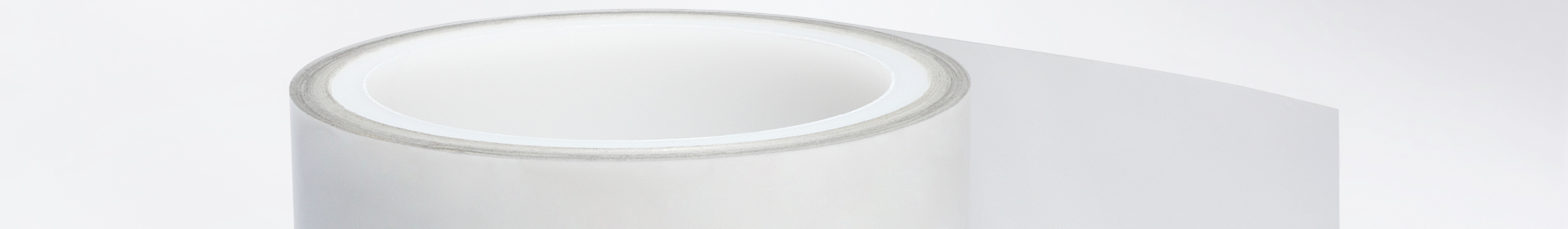

3M™ 9885 thermally conductive adhesive transfer tape is designed to provide a preferential heat transfer path between heat-generating components and heat sinks or other cooling devices (e.g. fans, heat spreaders or heat pipes). It offers excellent shock performance, good thermal conductivity and good electrical insulation properties.
9885 tape is ideal for thin bonding applications and is available in non-standard slit rolls, sheets or custom shapes.
For more information, please contact us.
Adhesive |
Acrylic |
Carrier |
Filled acrylic polymer |
Colour |
Grey |
Thickness (mm) |
0.13 |
Max. long temp (˚C) |
No data |
Chem resist |
3 |
UV resist |
4 |
Min. temp (˚C) |
-35 |
Max. long temp (˚C) |
No data |
Max. short temp (˚C) |
100 |
Shore Hardness (00) |
N/A |
Manufacturer / SOS |
3M™ |
Thermal conductivity (W/m-K) |
0.6 |
Dielectric strength (kV/mm) |
29 |
Thermal impedance (˚C-cm²/W) |
2.1 |
