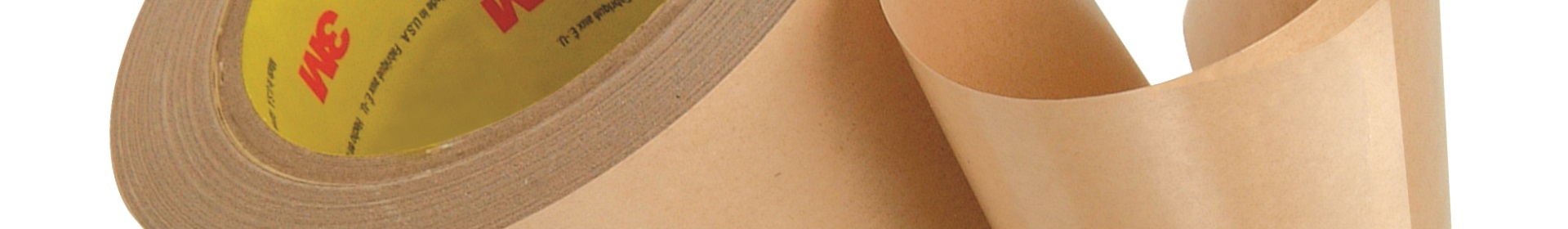

3M™ 9703

Overview for 3M™ 9703

3M™ 9703 electrically conductive adhesive transfer tape is a product with anisotropic electrical conductivity. The adhesive matrix is filled with conductive particles which allow interconnection between substrates through the adhesive thickness (the “Z-axis”) but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. The adhesive tack properties and lack of any thermal curing make this tape easy to use in assembly operations.

9703 offers good adhesion to common PCB substrates such as copper, gold, FR-4 epoxy, Kapton™ polyimide and polyester films. It is commonly used for attaching EMI/RFI shielding materials and electrical components.

9703 tape is available in non-standard slit rolls, sheets and custom shapes. For more information, please contact us.

Download: 3m-9703-tape-parafix.v1

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M™ 9703

Adhesive	Acrylic
Carrier	None
Colour	Clear
Thickness (mm)	0.05
Max. long temp (˚C)	No data
Chem resist	3
UV resist	4
Bond to foam, felt, mesh	No data
Min. temp (˚C)	-40
Max. long temp (˚C)	No data
Max. short temp (˚C)	80
Bond to metal	3
Bond to HSE plastic	2
Bond to LSE plastic	2
D/S or S/S	Double sided
Manufacturer / SOS	3M™
Adhesion to steel (N/cm)	No data
Tensile strength (N/cm²)	No data
Shielding Effectiveness @GHz(dB)	No data
Electrical resistance (Ω)	No data
