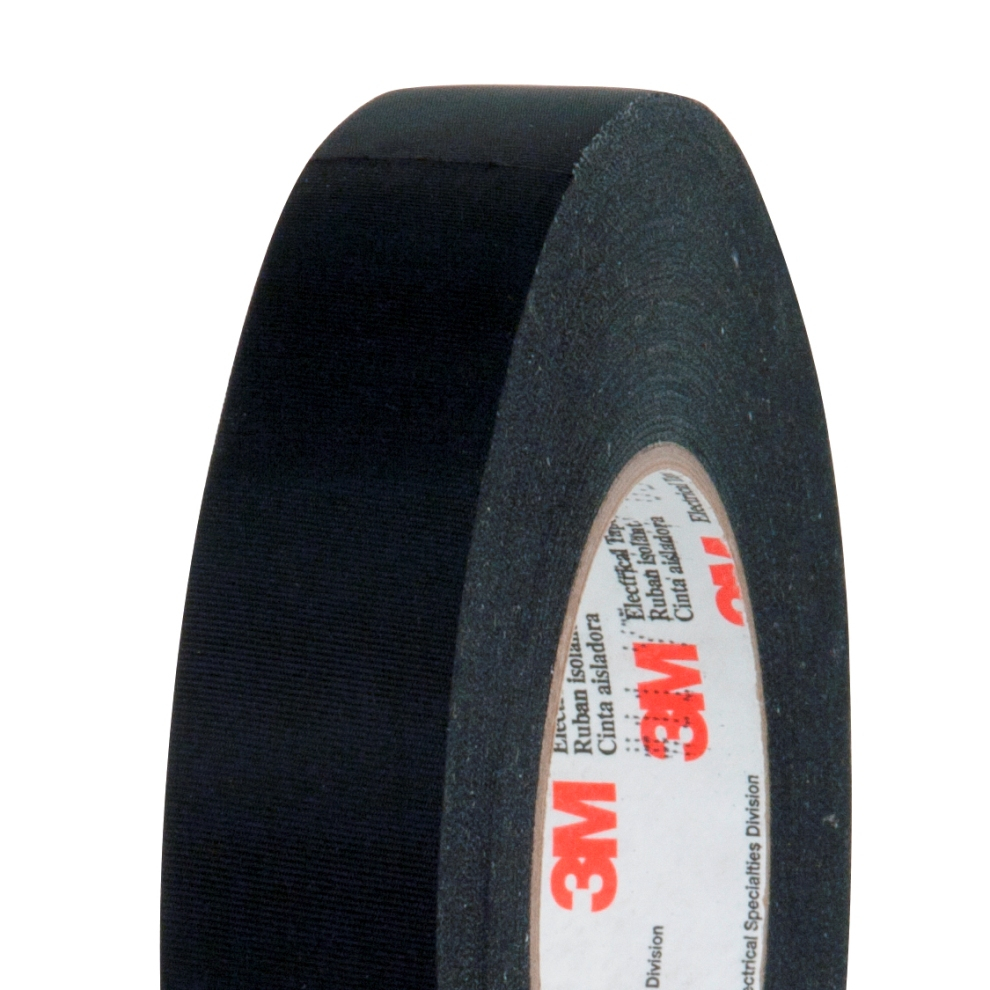

3M 11 tape is an acetate cloth insulating tape coated on one side with a rubber adhesive. It is an aesthetically pleasing tape which offers excellent conformability in coil wrapping applications up to 105°C. It also offers excellent absorption of resins and varnishes.
3M 11 acetate cloth tape is available in non-standard slit rolls, sheets and custom shapes.
For more information, please contact us.
Download: 3m-11-electrical-tape-data-sheet-parafix
Adhesive | Rubber |
Carrier | Cloth |
Colour | Black |
Thickness (mm) | 0.18 |
Max. short temp (˚C) | 105 |
Manufacturer / SOS | 3M™ |
Elongation (%) | 10 |
Adhesion to steel (N/cm) | 4.4 |
Tensile strength (N/cm²) | 62 |
Insulation resistance (MΩ) | >1×10⁴ |
Electrostatic corrosion | 1 |
