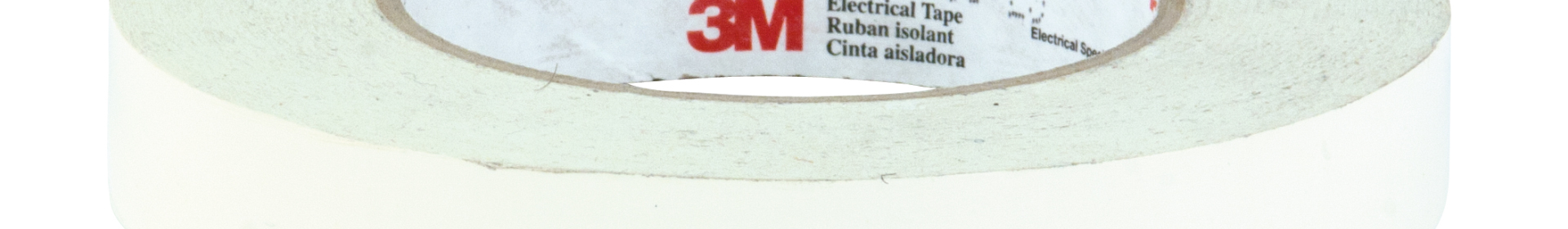

3M™ 46 glass filament tape

3M™ 46 glass filament tape

Overview for 3M™ 46 glass filament tape

3M™ 46 tape is a filament reinforced tape coated on one side with a rubber adhesive. It has excellent physical and electrical characteristics and is especially suited to applications such as lead anchoring and banding of coils.

Electrically insulating 46 glass filament tape is available in non-standard slit rolls, sheets or custom shapes.

For more information, please contact us.

Download: 3m-electrical-tape-46-parafix

Download:

3M™ 46 glass filament tape

Product features for 3M™ 46 glass filament tape

Adhesive

Rubber

Carrier

Polyester

Colour

Cream

Thickness (mm)

0.18

Max. short temp (˚C)

130

Manufacturer / SOS

3M™

Elongation (%)

5

Adhesion to steel (N/cm)

5.4

Tensile strength (N/cm²)

481

Insulation resistance (MΩ)

3×10³

Electrostatic corrosion

1
