3M™ 1245

Overview for 3M™ 1245

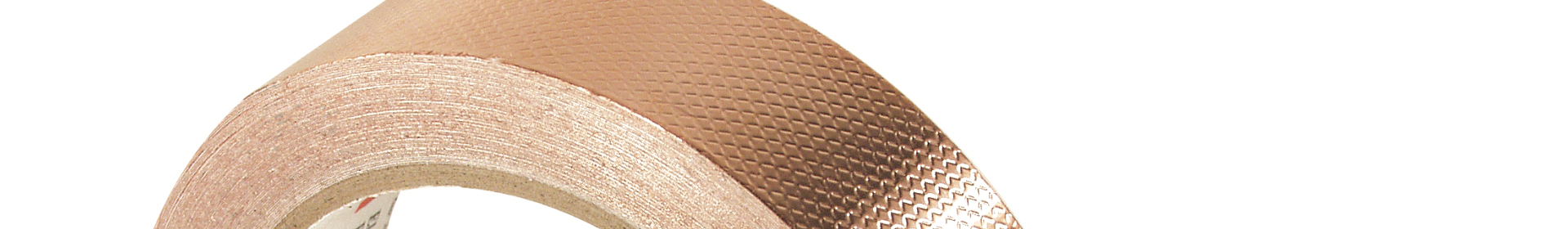

3M™ 1245 EMI shielding tape has a dead soft, embossed copper foil carrier, coated on one side with an acrylic adhesive. The unplated copper is for non-corrosive conditions and the embossing makes excellent contact through the adhesive. The copper foil backing is solderable and resists oxidation and discoloration. It is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing.

1245 tape has a UL 510 flame rating and is available in non-standard slit rolls, sheets and custom shapes.

For more information, please contact us.

Download: 3m-1245-copper-foil-shielding-tape-parafix

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M™ 1245

Adhesive	Acrylic
Carrier	Copper foil
Colour	Copper
Thickness (mm)	0.1
Min. temp (˚C)	No data
Max. short temp (˚C)	No data
D/S or S/S	Single sided
Manufacturer / SOS	3M™
Adhesion to steel (N/cm)	3.8
Tensile strength (N/cm²)	44
Shielding Effectiveness @GHz(dB)	85
Electrical resistance (Ω)	0.001
