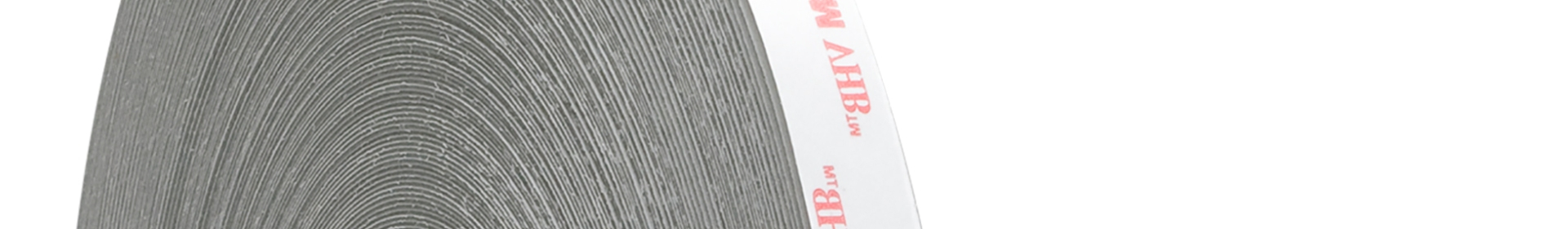

3M™ 4936P is a highly conformable VHB™ tape with excellent UV and chemical resistance. It is conformable and can bond to plasticised vinyl due to a specially formulated adhesive which resists plasticiser migration. In addition this core adhesive composition makes the product well suited to many paints and primers.
4936P VHB™ tape has somewhat lower peel, tensile and shear performance than other VHB™ tape products due to its inherent softness. 4936’s principal advantages are that it provides a more uniform seal on irregular surfaces and in visible bonds under a transparent surface it offers a more aesthetically pleasing bond. It is available in non-standard slit rolls, sheets and custom shapes.
For more information, please contact us.
Download: 3m-4936p-vhb-tape-data-sheet-parafix
Adhesive |
Acrylic |
Carrier |
Foamed acrylic adhesive |
Colour |
Grey |
Thickness (mm) |
0.6 |
Max. long temp (˚C) |
93 |
Chem resist |
5 |
UV resist |
5 |
Bond to foam, felt, mesh |
2 |
Min. temp (˚C) |
-35 |
Max. long temp (˚C) |
93 |
Max. short temp (˚C) |
149 |
Bond to metal |
5 |
Bond to HSE plastic |
4 |
Bond to LSE plastic |
1 |
Density (kg/m³) |
720 |
Shore Hardness (00) |
No data |
Compression set % max - 23˚C |
No data |
Compression Deflection 25% (kPa) |
No data |
Manufacturer / SOS |
3M™ |
