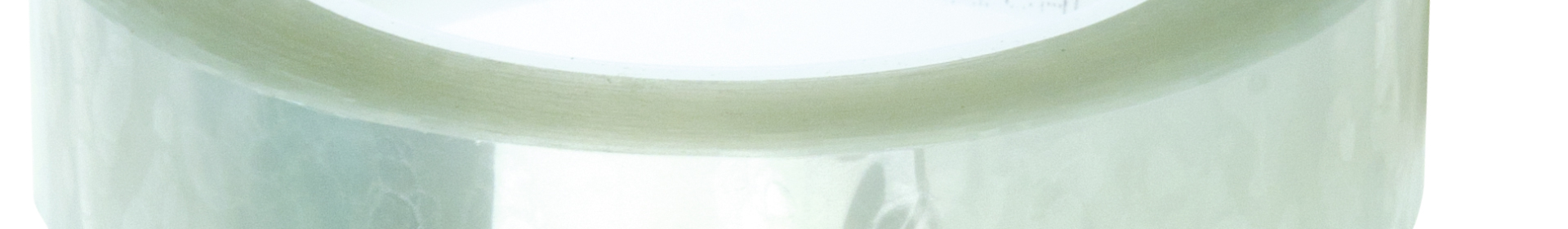

3M 5 polyester film electrical tape

Overview for 3M 5 polyester film electrical tape

3M 5 tape is a polyester film electrical insulating tape coated on one side with an acrylic adhesive that offers resistance to most common cleaning solvents.

Electrically insulating 3M 5 polyester film is available in non-standard slit rolls, sheets and custom shapes.

For more information, please contact us.

Download: 3m-electrical-insulation-tape-5-parafix

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M 5 polyester film electrical tape

Adhesive	Acrylic
Carrier	Polyester
Colour	Clear
Thickness (mm)	0.06
Max. short temp (˚C)	130
D/S or S/S	Single sided
Manufacturer / SOS	3M™
Elongation (%)	100
Adhesion to steel (N/cm)	3.8
Tensile strength (N/cm²)	44
Insulation resistance (MΩ)	>1×10⁶
Electrostatic corrosion	0.1
