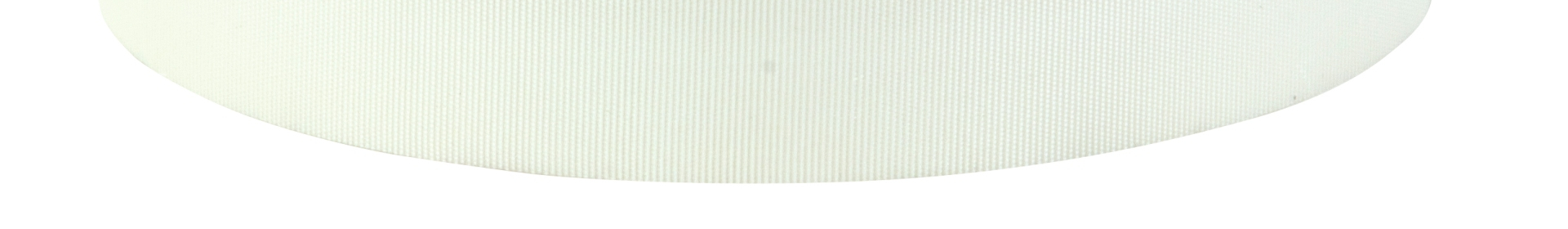

3M™ 69 tape is a glass cloth electrical tape coated on one side with a high-temperature thermosetting silicone adhesive. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures.
It is UL recognised for continuous use up to 200°C and conforms to Military Specification No. MIL-I-19166C.
Electrically insulating 69 glass cloth tape is available in non-standard slit rolls, sheets and custom shapes.
For more information, please contact us.
Download: 3m-electrical-tape-69-parafix
Adhesive |
Silicone |
Carrier |
Cloth |
Colour |
White |
Thickness (mm) |
0.18 |
Max. short temp (˚C) |
200 |
D/S or S/S |
Single sided |
Manufacturer / SOS |
3M™ |
Elongation (%) |
5 |
Adhesion to steel (N/cm) |
4.4 |
Tensile strength (N/cm²) |
314 |
Insulation resistance (MΩ) |
4.8×10⁷ |
Electrostatic corrosion |
0.9 |
