3M™ X-7001

Overview for 3M™ X-7001

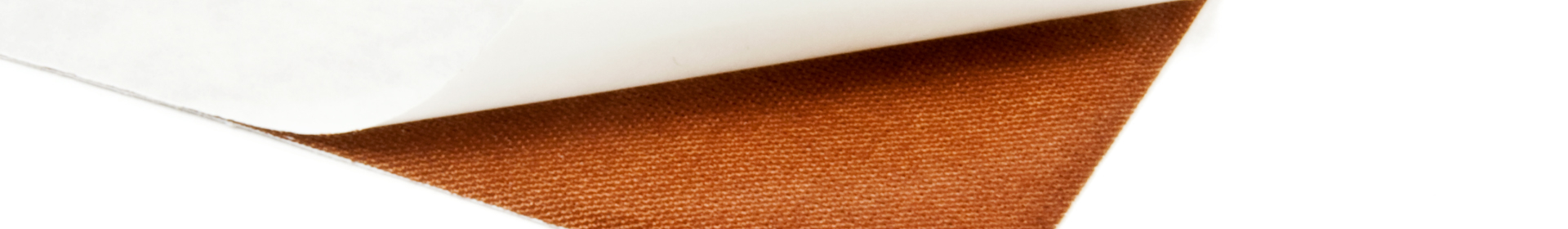

3M™ X-7001 is a copper-coated PET cloth fabric shielding tape. The copper-plated polyester cloth backing is coated on both sides with an electrically conductive acrylic adhesive with a single liner.

It offers good shielding effectiveness and excellent flexibility and conformability. The conductive particles in the adhesive provides low contact resistance between the substrate and backings to drain static charge. The lightweight fabric backing also minimises the possibility of finger lacerations.

X-7001 tape is available in non-standard slit rolls, sheets and custom shapes. For more information, please contact us.

3M™ X-7001

Product features for 3M™ X-7001

Adhesive

Acrylic

Carrier

Copper-plated PET

Colour

Copper

Thickness (mm)

0.16

Max. long temp (˚C)

No data

Chem resist

No data

UV resist

No data

Bond to foam, felt, mesh

No data

Min. temp (˚C)

-40

Max. long temp (˚C)

No data

Max. short temp (˚C)

130

Bond to metal

No data

Bond to HSE plastic

No data

Bond to LSE plastic

No data

Manufacturer / SOS

3M™

Adhesion to steel (N/cm)

6.4

Tensile strength (N/cm²)

No data

Shielding Effectiveness @GHz(dB)

60

Electrical resistance (Ω)

0.015
