Attach and Protect Stick to Skin Wearable Microphone

Attach and Protect Stick to Skin Wearable Microphone

  • Disposable stick to skin mount and windshield for discreet personal microphones

    Our customer, a specialist supplier of microphone attachment parts, windshields and accessories, required the design of disposable adhesive components to attach microphones to individuals (stick to skin and clothing) and to attach protection parts on top of these microphones to minimise the sounds of clothing rustle and low wind noise. The protection parts were fabric discs which protected the microphone under clothing and a fur disc which protected the microphone over clothing, in windy outdoor conditions.

    We designed a double sided component that attached to skin, the microphone and the protection part. We also die-cut our customer’s fabric and fur material into discs for the microphone covers and incorporated a tabbed liner for ease of application. The adhesive disc parts were presented as sheets of ten with customer’s own branding on reverse and were packaged to our customer’s requirements. Our customer received a complete solution of design, manufacture and packaging from one supplier.

    You can read about this project in more detail below.

    Disposable stick to skin mount and windshield for discreet personal microphones
  • Project requirements
    Project requirements
    1. The part must be easy to attach
    2. Must provide reliable attachment of microphone to both skin and fabric (without irritating skin)
    3. Part must provide reliable attachment of protection cover to microphone, including in windy, outdoor conditions
    4. Part must not create additional noise interference
    g_content_rows-repeater_items_title
    Our solution
    Our solution
    1. To reduce costs to the customer, just one part was designed that would encompass the two requirements of microphone attachment and microphone protection part attachment.
    2. The final design was a double sided disc. One side of the disc attaches to the skin or to fabric and the other side, after attaching the microphone, leaves an exposed adhesive area for attaching the microphone sound protection cover.
    3. Parafix sourced two double sided materials to laminate to either side of a cloth material that was soft enough to prevent the mount from creaking when the microphone is attached.
    4. The ‘stick to skin/fabric’ side of the disc comprised of a medical grade adhesive for safe and secure attachment to skin.
    5. The ‘attach microphone and cover’ side comprised of an industrial grade acrylic adhesive for secure attachment of the microphone and the microphone protection component (fabric or fur disc).
    6. We designed the adhesive disc with a dry tabbed liner for ease of application and removal

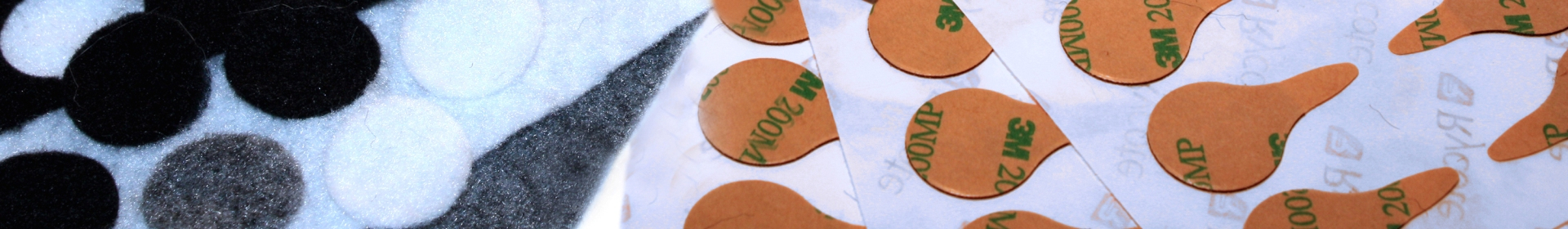

    7. We then die-cut the customer’s fabric and fur material into discs for the microphone covers.
    8. The adhesive disc parts were presented as sheets of ten with customer’s own branding on reverse. They were then packaged in sets of 30 pieces at customer’s request.
    g_content_rows-repeater_items_title
    Key benefits
    Key benefits
    1. We were able to achieve all of the customer’s key requirements
    2. We reduced customer’s costs by meeting the key requirements in just one part
    3. Customer received complete solution of design, manufacture and packaging from one supplier
