3M™ AG2300

Overview for 3M™ AG2300

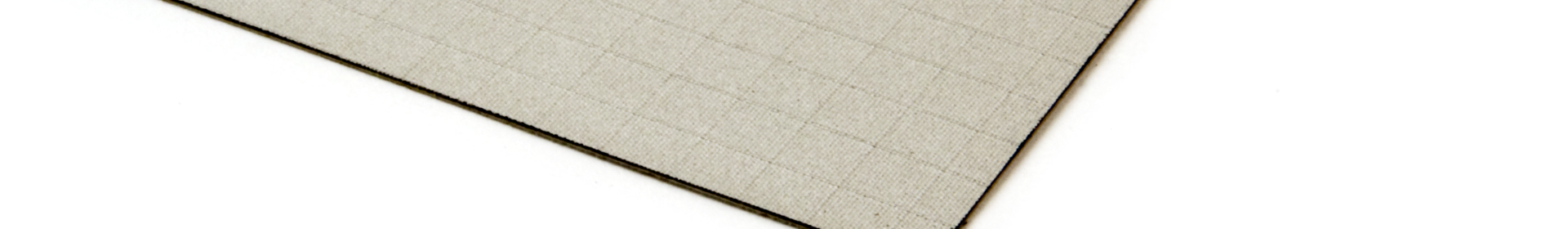

3M™ AG2300 tape is a conductive silver fabric shielding tape, coated on one side with a conductive acrylic adhesive. It is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the conductive fabric backing. Common uses include grounding and EMI shielding in equipment, components and shielded rooms.

AG2300 tape is available in non-standard slit rolls, sheets and custom shapes.

For more information, please contact us.

Download: 3m-ag2300-silver-coated-fabric-shielding-tape-parafix

Download:

Add to wish list View Data Sheet

Add to Wishlist

Product features for 3M™ AG2300

Adhesive	Acrylic
Carrier	Silver coated fabric
Colour	Silver
Thickness (mm)	0.1
Min. temp (˚C)	No data
D/S or S/S	Single sided
Max. short temp (˚C)	No data
Manufacturer / SOS	3M™
Adhesion to steel (N/cm)	39
Tensile strength (N/cm²)	50
Shielding Effectiveness @GHz(dB)	No data
Electrical resistance (Ω)	0.005
