Speciality film and foil
-
About medical grade film and foil
Our range of medical grade films and foils include a selection of hydrophilic films, bioassay compatible tapes, spacer and top tapes. Learn about these in more detail below. Utilising our range of converting capabilities, we can customise these materials into intricate die-cut pieces, sheets or roll form.
Hydrophilic medical grade films
Hydrophilic films provide fast and reliable spreading of liquid samples through your diagnostic device. They are available in a range of thicknesses and shapes to suit your design criteria. Applications include patient self-testing kits, laboratory test kits and lab-on-a-chip constructions.
Hydrophilic film characteristics include:
- Non-leaching hydrophilic coating technology
- Sterilisable by gamma
- Fast and reliable fluid flow
- Excellent ageing stability
- Dimensionally stable film
- Low contact angle for optimal wettability
- Proven compatibility with many enzymes
- Transparent polyester film
Bioassay compatible tapes

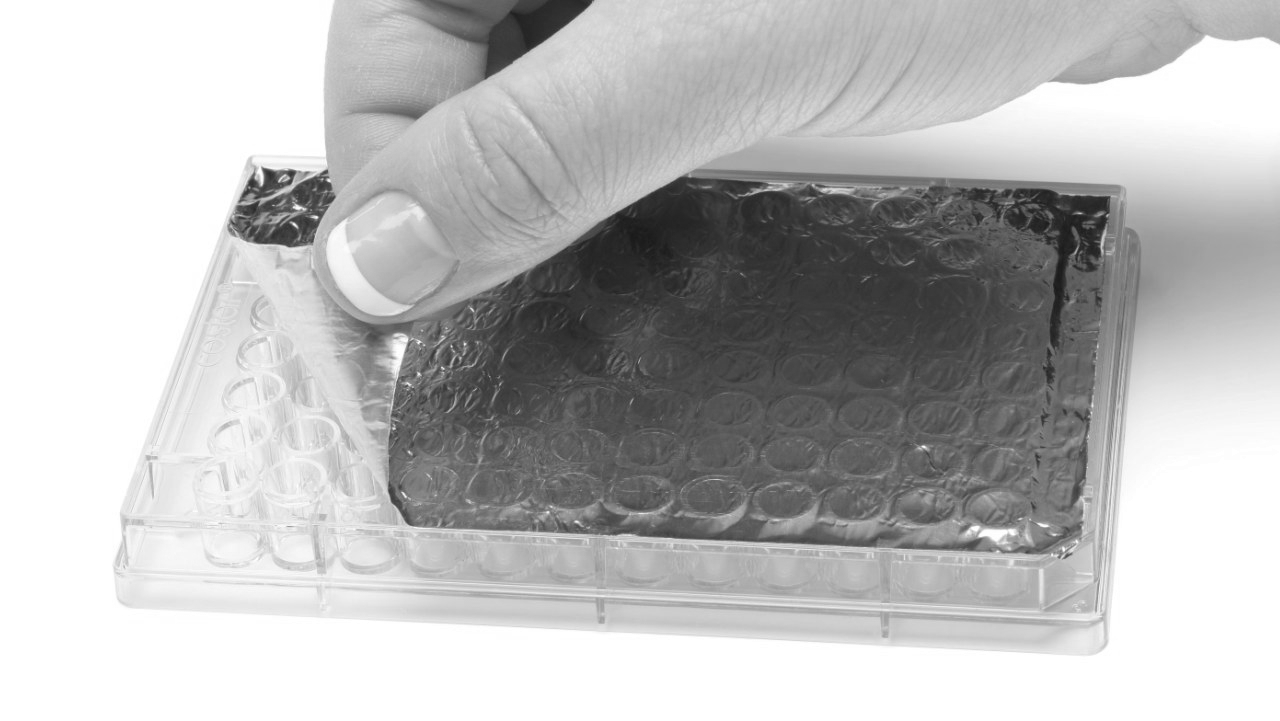

Bioassay compatible tapes consist of select diagnostic acrylate adhesives and materials, including polyester, polyolefin and aluminium backings. They minimise the potential for chemical and/or optical interference, making them the ideal product for your microfluidic requirements.We offer a range of single or double sided bioassay compatible tapes, in white, silver or transparent. Applications include lab-on-a-chip constructions, test strip top tape and sealing of biological assays and microplates.
Bioassay tape characteristics:
- Sterilisable by EtO and gamma
- Chemically inert
- Heatsealable
- Non-fluorescing and low auto-fluorescing
- Pierceable (foils)
- Oxygen and moisture resistant
- Non-clouding features when exposed to moisture
Double sided spacers and top tapes
Double sided spacers and top tapes consist of select bioassay compatible adhesives and materials, including polyester, polyolefin and aluminium backings. They minimise the potential for chemical interference, as well as aid in the manufacture and use of your device, making them the ideal product for your microfluidic requirements. We offer a range of single or double sided spacers and top tapes, in white, silver or transparent. Applications include diagnostic spacers and lateral flow test strips.
Spacer and top tape characteristics:
- Sterilisable by EtO and gamma
- Chemically inert
- Heatsealable
- Non-fluorescing and low auto-fluorescing
- Non-clouding features when exposed to moisture
- Pierceable (foils)
- Oxygen and moisture resistant
-
Search medical grade films and foils
Browse through our range of medical grade film and foil products below for more detailed information and product data sheets. If you would like to ask us a question about any of these products, simply click on “add to wish list” and the product details can be added to a contact form once you’re ready to get in touch. You can also send these details to yourself or a colleague.
Select or remove columns to displaySelect or remove columns to display- Adhesive
- Carrier
- Colour
- Thickness (mm)
- D/S or S/S
- Breathable
- Conformability
- Fluid resist backing
- Hypoallergenic
- Sterilisation method
- MVTR (gms/m2 /24 hrs)
- Max width (cm)
- Max length (m)
- Manufacturer / SOS
Filter ByFilter By-
Thickness range (mm)
-
Adhesive
-
Carrier
-
Colour
-
D/S or S/S
-
Breathable
-
Conformability
-
Fluid resist backing
-
Hypoallergenic
-
Sterilisation method
-
MVTR (gms/m2 /24 hrs)
-
Max width (cm)
-
Max length (m)
-
Manufacturer / SOS
Any data provided relates to values typically generated when measuring these materials, and is offered as a guide to material selection. However it is not guaranteed and the user is responsible for evaluating the suitability of a product for the application it is intended for. Some test methods may vary, please refer to data sheet or call for assistance.
Title Stock status Adhesive Breathable Carrier Colour Conformability D/S or S/S Fluid resist backing Hypoallergenic Manufacturer / SOS Max length (m) Max width (cm) MVTR (gms/m2 /24 hrs) Sterilisation method Thickness (mm)
3M™ 9960 3 None No PET Transparent Low Double sided Yes No 3M™ 1463 124.5 No data No data 0.17
3M™ 9962 3 None No PET Transparent Low Double sided Yes No 3M™ 2377 124.5 No data No data 0.1
3M™ 9964 3 Acrylic No PET Transparent Medium Single sided Yes No 3M™ 320 122 No data EtO & Gamma 0.06
3M™ 9792R 3 Acrylic No Aluminium foil Silver High Single sided Yes No 3M™ 457 106.7 No data EtO & Gamma 0.07
3M™ 9793R 3 Acrylic No PP Transparent Medium Single sided Yes No 3M™ 457 122 No data EtO 0.08
3M™ 9795R 1 Silicone No PP Transparent Medium Single sided Yes No 3M™ 675 122 No data No data 0.1
Adhesives Research 90445 3 Acrylic No data PET Clear No data Double sided No data No Adhesives Research No data No data No data No data 0.08 -
Tape in action
Read through our case studies to find relevant, real-life examples of our applications utilising medical grade films and foils.
-
Customising your adhesive material
Utilising the latest converting technologies, we can customise your film or foil to create non-standard roll widths and lengths, or convenient and easy to handle components. Customising your material offers a number of benefits, including cost savings and enhanced product design. Whatever your needs, we have the experience and capabilities to provide a complete solution, from design and prototyping to full production and automated assembly.
-
Die-cuttingDie-cutting

-
Clean Room ManufacturingClean Room Manufacturing

-
SlittingSlitting

-
Laser cuttingLaser cutting

-
GuillotiningGuillotining

-
LaminatingLaminating

-
Bespoke presentationsBespoke presentations

-
X/Y axis plotterX/Y axis plotter

-
Rapid prototypingRapid prototyping

-
Automation solutionsAutomation solutions

-
R&DR&D

-
Computer Aided DesignComputer Aided Design

-
Contract convertingContract converting

-
Part tolerancesPart tolerances

-
-
