3M™ 1205

3M™ 1205

Overview for 3M™ 1205

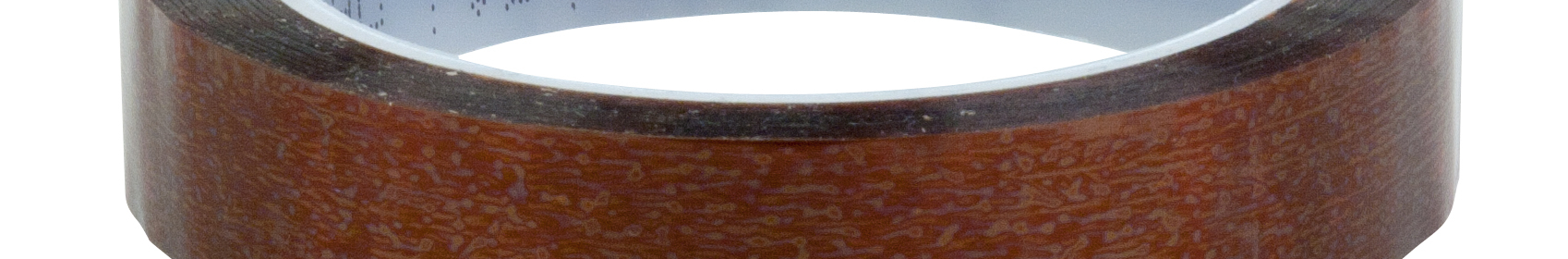

3M™ 1205 tape is a polyimide insulating tape coated on one side with an acrylic adhesive. It is designed for high-temperature applications, in which a solvent-resistant backing is required, used on coils, capacitors and wire harnesses.

Electrically insulating 1205 tape is available in non-standard slit rolls, sheets or custom shapes.

For more information, please contact us.

3M™ 1205

Product features for 3M™ 1205

Adhesive

Acrylic

Carrier

Polyimide

Colour

Amber

Thickness (mm)

0.08

Max. short temp (˚C)

155

Manufacturer / SOS

3M™

Elongation (%)

55

Adhesion to steel (N/cm)

3.8

Tensile strength (N/cm²)

53

Insulation resistance (MΩ)

>1×10⁶

Electrostatic corrosion

1
