3M™ 5413

3M™ 5413

Overview for 3M™ 5413

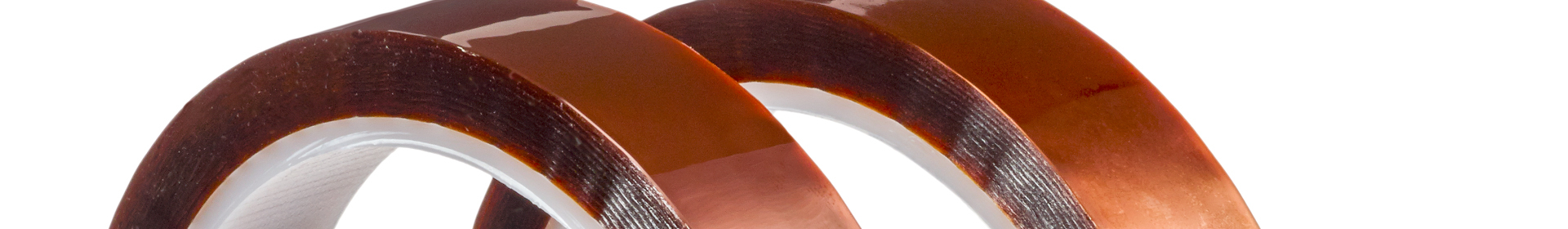

3M™ 5413 tape is a PCB wave solder masking tape consisting of a Kapton® backing coated with a silicone adhesive. It does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures. This product is also flame retardant, chemical and radiation resistant.

5413 tape is available in non-standard slit rolls, sheets and custom shapes.

For more information, please contact us.

Download: 3m-5413-electrical-tape-parafix

Download:

3M™ 5413

Product features for 3M™ 5413

Adhesive

Silicone

Carrier

Kapton®

Colour

Amber

Thickness (mm)

0.07

Max. short temp (˚C)

260

Manufacturer / SOS

3M™

Elongation (%)

62

Adhesion to steel (N/cm)

2.4

Tensile strength (N/cm²)

578

Insulation resistance (MΩ)

58

Electrostatic corrosion

No data
